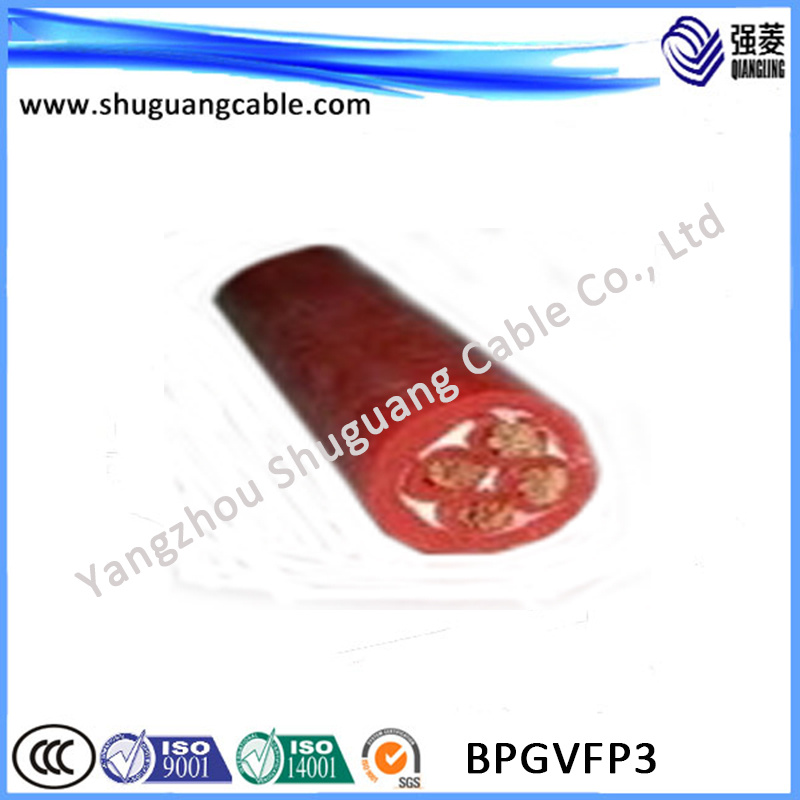

Yangzhou Shuguang Cable Co., Ltd. >> (BPGVFP3) Silicone Rubber/Acylonitrile-Butadiene/Al-Polyster Shielded/High Temperature/Frequency Convertible/Electric Power Cable
(BPGVFP3) Silicone Rubber/Acylonitrile-Butadiene/Al-Polyster Shielded/High Temperature/Frequency Convertible/Electric Power Cable
Price: |
US $ 25/Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Meter |
Pay Type: |
L/C,T/T |
Prod Model: |
BPGVFP3 |
Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
Voltage Range: |
0.6-1kv |
Shield Material: |
Al-Polyester Tape |
Application: |
Computer |
Voltage: |
Low and Medium Voltage Cable |
Current: |
DC & AC |
Certification: |
IEC |
Insulation Material: |
Silicone Rubber |
Sheath Material: |
Acylonitrile-Butadiene |
Model: |
Bpgvfp3 |
Brand: |
Qiangling |
Product Description
Characteristics and usage:
The products are applicable in frequency convertible control system not exceeding 0.6/1kV as power supply cable or electrical connection. They are characterized by perfect voltage-impact resistance and perfect screen, They can eliminate electromagnetic disturbance and reduce frequency convertible motor' noise. They can withstand impulse voltage at the time of altering frequency and assure stable operating of system. They are widely applied in various fields such as metallurgy, power petrol-chemical industry and etc.
Standard appiled:
Q/321084KLA080-2004
Operating conditions:
1. AC rated voltage: 0.6/1KV
2. Long-term operating temperature:
180ºC for Silicone rubber insulation
200ºC or 260ºC Fluoroplastic insulation
70ºC for PVC insulation
90ºC for XLPE
3. Min. permissible bend radius: It should be 15 times outer diameter of cable
No. | Types | Descriptions |
1 | BPVVP | PVC insulated and sheathed Cu wire braided-shield and frequency convertible power cable |
2 | BPVVP2 | PVC insulated and sheathed Cu tape wrapping shield and frequency convertible power cable |
3 | BPVVPP2 | PVC insulated and sheathed Cu wire braided Cu tape wrapping shield and frequency convertible power cable |
4 | BPVVP3 | PVC insulated and sheathed Al-polyester composite tape wrapping shield and frequency convertible power cable |
5 | BPYJVP | XLPE insulated PVC sheathed Cu wire braided shield and frequency convertible power cable |
6 | BPYJVP2 | XLPE insulated PVC sheathed Cu tape wrapping shield and frequency convertible power cable |
7 | BPYJVPP2 | XLPE insulated and PVC sheathed Cu wire braided Cu tape wrapping shield and frequency convertible power cable |
8 | BPYJVP3 | XLPE insulated and PVC sheathed Al-polyester composite tape wrapping shield and frequency convertible power cable |
9 | BPGGP | Silicone rubber insulated and sheathed Cu wire braided shield high-temperature resistant and frequency convertible power cable |
10 | BPGGP2 | Silicone rubber insulated and sheathed Cu tape wrapping shield high-temperature resistant and frequency convertible power cable |
11 | BPGGPP2 | Silicone rubber insulated and sheathed Cu wire braided and Cu tape wrapping shield high-temperature resistant and frequency convertible power cable |
12 | BPGGP3 | Silicone rubber insulated and sheathed Al-polyester composite tape wrapping shield high-temperature resistant and frequency convertible power cable |
13 | BPGVFP | silicone rubber insulated acylonitrile-butadience sheathed Cu wire braided shield high-temperature resistant and frequency convertible power cable |
14 | BPGVFP2 | silicone rubber insulated acylonitrile-butadience sheathed Cu tape wrapping shield high-temperature resistant and frequency convertible power cable |
15 | BPGVFPP2 | silicone rubber insulated acylonitrile-butadience sheathed Cu wire braided and Cu tape wrapping shield high-temperature resistant and frequency convertible power cable |
16 | BPGVFP3 | silicone rubber insulated acylonitrile-butadience sheathed Al-polyester composite tape wrapping shield high-temperature resistant and frequency convertible power cable |
17 | BPFFP | F46 insulated and sheathed Cu wire braided shield high temperaure resistant and frequency convertible power cable |
18 | BPFFP2 | F47 insulated and sheathed Cu tape wrapping shield high temperaure resistant and frequency convertible power cable |
19 | BPFFPP2 | F48 insulated and sheathed Cu wire braided Cu tape wrapping shield high temperaure resistant and frequency convertible power cable |
20 | BPFFP3 | F49 insulated and sheathed Al-polyester composite tape wrapping shield high temperaure resistant and frequency convertible power cable |
Yangzhou Shuguang Cable Co., Ltd, was founded in 1985, a specialized wire and cable manufacturer lies in the northern suburb of famous and beautiful Yangzhou city with long history and culture.It is a "State-Grade Key High-Tech Enterprise", one of the "Top Hundred Chinese Electronic Information Enterprises", "Grade AAA Credit Enterprise", one of the enterprises who "Respects Contract and Keep Faith in Jiangsu province, "Excellent Provincial Private-Owned Enterprise", "Provincial Enterprise with Harmonious Labor Relations", and it obtained the first "Mayor Quality Award" in 2010.The series of "QIANG LING" branded cable products were awarded the "State Quality Inspection Exemption" and "Jiangsu Provincial Famous Brand".
With 92,000 square meters structure area in total 280,000 facility square meters, RMB 780 million Yuan self-owned net assets and nearly 800 workers and staffs, Shuguang took lead into passing ISO9001 Quality Management System in 1996, and successively passed Products Safety Certification, ISO14001 Environmental Management System, GB/T28001 Occupation Health & Safety Management System and ISO10012 Measurement Management System.We standardized our work process by adopting ERP Management System.
We provide more than 20 series of products including:Up to 500kV and 220kV cross-linking power cables, plastic cable, overhead insulated wire, shielded control and computer cable, irradiation cross-linking cable, Grade 1E Class K3 cable for nuclear power station, mine safety cable, rubber cable, wind energy cable, direct current cable, compensation cable, high temperature resistant cable, communication optical fiber cable, etc.Which are extensively applied in power, metallurgy, petro-chemical, energy, traffic, and telecommunication systems successively served in several domestic and overseas projects such as State Grid, Southern Power Grid, Three Gorge of Yangtze River, Datang Togtoh Power Station, Qinshan Nuclear Power Station, Sanmen Nuclear Power Station, CNPC Pengzhou 1 Million Tons/Years Ethylene Project, Changqing Oilfield, Changchun Rail Transporation, Zhongnanhai Substation, railway from Beijing to Tibet, Wuhan Iron and Steel Corp., SINOPEC Wuhan 800 Thousand Tons/Years Ethylene Project, BASF-YPC, Tongli ±800kV Converting Station, Southern Anhui 1000kV Substation, Sino-Burma Oil-Gas Pipeline Project, etc.The quality and services of our products received consistent praises from the clients and market.
With 8 Ult-high & High voltage cross-linking cable production lines, 2 conductor stranding production lines and full set of inspection equipment imported from Finland, Germany, America, UK, Swiss, Austria and other developed countries, Shuguang Cable drives ahead in the industry of wire and cable manufacture.After a long period of recruitment and education, we have formed up an excellent technical and management team which can promote the sustainable development of our company.We are vigorously strengthening the ability of research and development and innovation through enhancing the relationship and cooperation with colleges, universities and scientific and research institutions.We have successively assumed 79 provincial and above science and technology projects, including 8 National Important New Products projects, 13 National Torch Program and Spark Program projects, 3 national Innovation Fund projects and we also participated in drafting and revising of 24 national and industrial standards in cable industry.
"Striving cohesively, devoting selflessly, keeping progress with times and challenging the future" has been keeping as the enterprise culture to Shuguang people for years.During the sustainable development, Shuguang will further play full role of our advantages, by "Market Orientation, Customer Satisfaction, Innovation for development and Lean Management for benefit".Forge ahead and keep surpassing, we will always make contributions positively to harmonious society construction.
