| Prod Model: |
Y2EJ |
| Rated Power: |
0.55-200kw |
| Voltages: |
380V |
| Frequency: |
50Hz |
| Frame Material: |
Cast Iron (0.55-45kw), Aluminum ( 0.55-7.5kw) |
| Mounting Position: |
B3/B5/B35/B14/B34 |
| Protection Class: |
IP44 |
| Insulation Grade: |
F |
| Continuous Working Duty: |
S1 |
| Cooling Method: |
IC411 |
| Warranty: |
12 Months |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Yej Series Three Phase Brake Motor |
Product Description

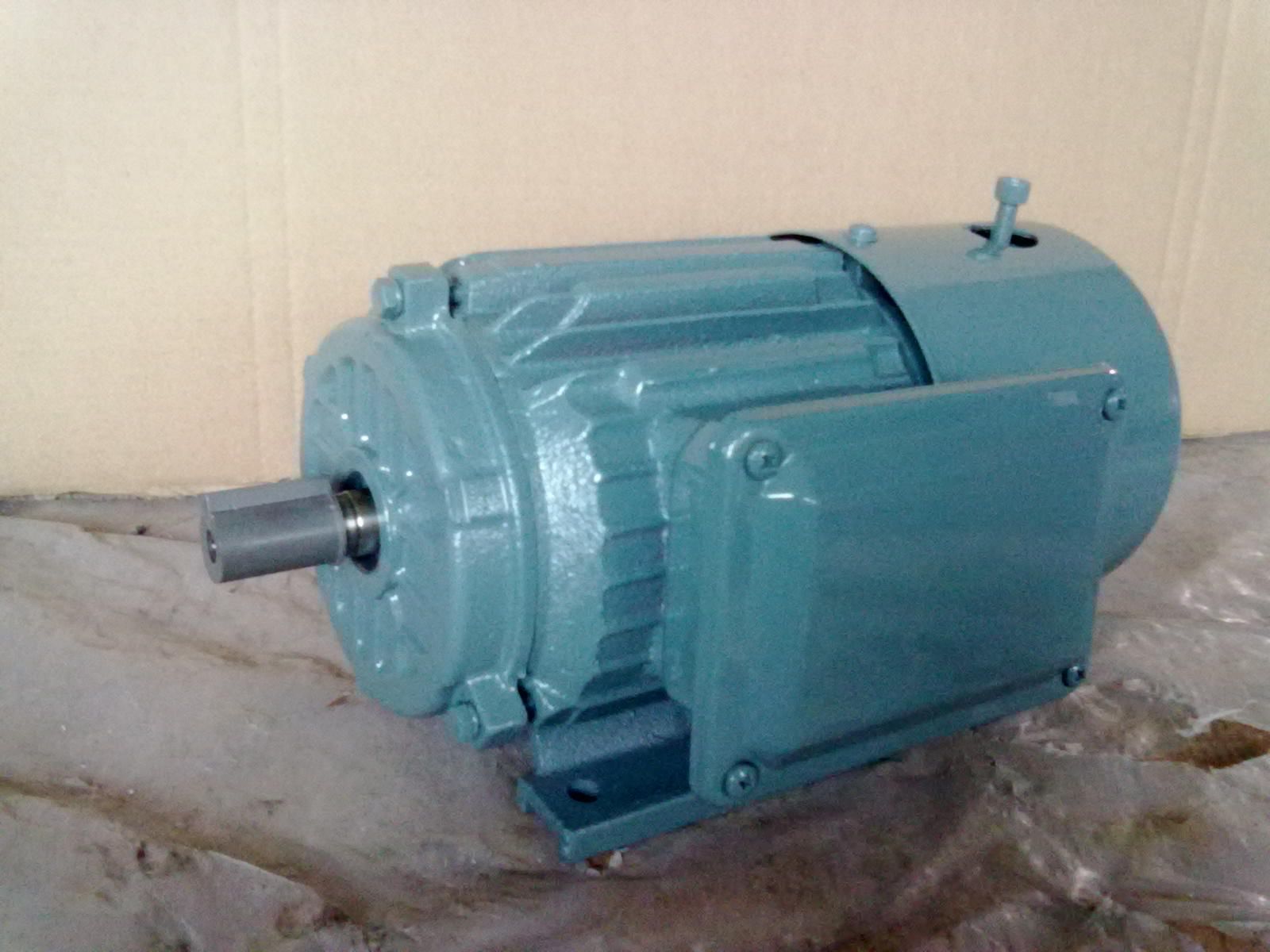

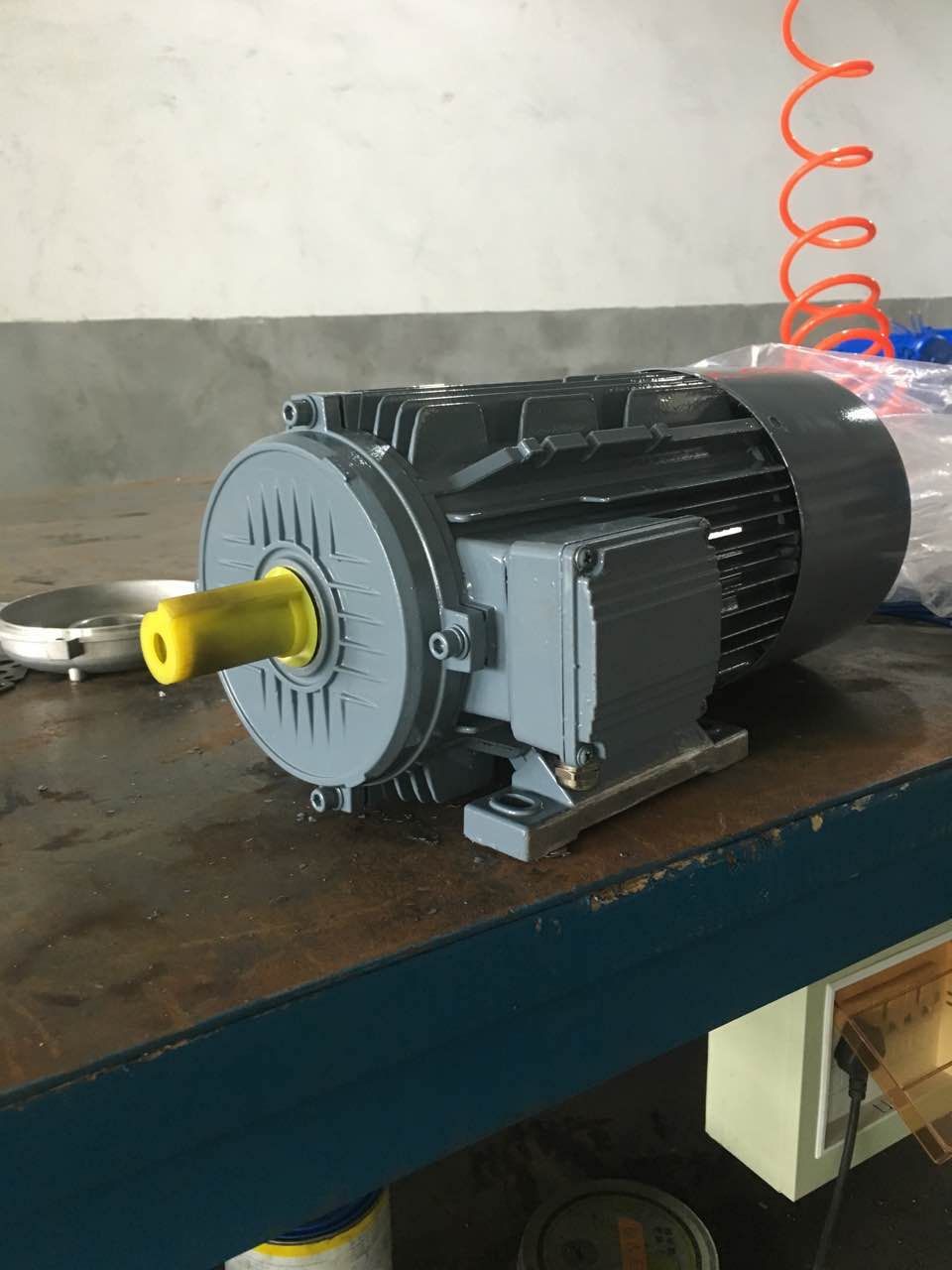

Brake Motor - Cast Iron - Standard Efficiency - IE1
Standard efficiency cast iron frame IP44 brake motors complying with IE1 efficiency levels according to IEC 60034-30-1
Typical ApplicationThese motors can be used on any machine that requires quick stops and time savings during installation:
Packing equipments
Conveyor belts
Washing and bottling machines
Rolling bridges
Elevators
Printing machines
Gates
Wood machinery
Cranes and others
Standard FeaturesThree-phase, IP55, TEFC
Output: 0,55 up to 45 kW
Frames: 80 up to 225
Voltage: 220-240/380-415V (up to 100L) / 380-415/660V (from 112M and up)
Class "B" insulation (ΔT = 80K)
Continuous duty: S1
Ambient temperature: 40 °C , at 1000 m.a.s.l
Squirrel cage rotor/Aluminium die cast
Dimensions according to IEC 60072
Performance characteristics according to IEC 60034-30-1
Color: RAL 5010 - Blue
Optionals AvailableThermal protection
Space heaters
Special finishing paint
Class "F" insulation
Other mounting configurations
Manual brake release
More options available, on request
Technical Data: | Type | Rated Output | Voltage | Frequency | Speed | Efficiency | Power factor | In | ILR | TLR | Tmax | Nosie |
| Kw | HP | V | Hz | r/min | % | CosΦ | A | Irated | Trated | Trated | Lw dB(A) |
| 801-2 | 0.75 | 1 | 380 | 50 | 2825 | 75 | 0.83 | 1.8 | 6.1 | 2.2 | 2.3 | 67 |
| 802-2 | 1.1 | 1.5 | 380 | 50 | 2825 | 76.2 | 0.84 | 2.6 | 7 | 2.2 | 2.3 | 67 |
| 90S-2 | 1.5 | 2 | 380 | 50 | 2840 | 78.5 | 0.84 | 3.34 | 7 | 2.2 | 2.3 | 72 |
| 90L-2 | 2.2 | 3 | 380 | 50 | 2840 | 81 | 0.85 | 4.69 | 7 | 2.2 | 2.3 | 72 |
| 100L-2 | 3 | 4 | 380 | 50 | 2880 | 82.6 | 0.87 | 6.14 | 7.5 | 2.2 | 2.3 | 76 |
| 112M-2 | 4 | 5.5 | 380 | 50 | 2890 | 84.2 | 0.88 | 7.83 | 7.5 | 2.2 | 2.3 | 77 |
| 132S1-2 | 5.5 | 7.5 | 380 | 50 | 2900 | 85.7 | 0.88 | 10.7 | 7.5 | 2.2 | 2.3 | 80 |
| 132S2-2 | 7.5 | 10 | 380 | 50 | 2900 | 87 | 0.88 | 14.2 | 7.5 | 2.2 | 2.3 | 80 |
| 160M1-2 | 11 | 15 | 380 | 50 | 2930 | 88.4 | 0.89 | 20.9 | 7.5 | 2.2 | 2.3 | 86 |
| 160M-2 | 15 | 20 | 380 | 50 | 2930 | 89.4 | 0.89 | 27.9 | 7.5 | 2.2 | 2.3 | 86 |
| 160L-2 | 18.5 | 25 | 380 | 50 | 2930 | 90 | 0.9 | 33.9 | 7.5 | 2.2 | 2.3 | 86 |
| 180M-2 | 22 | 30 | 380 | 50 | 2940 | 90.5 | 0.9 | 40.5 | 7.5 | 2 | 2.3 | 89 |
| 200L1-2 | 30 | 40 | 380 | 50 | 2950 | 91.4 | 0.9 | 54.8 | 7.5 | 2 | 2.3 | 92 |
| 200L2-2 | 37 | 50 | 380 | 50 | 2950 | 92 | 0.9 | 66.6 | 7.5 | 2 | 2.3 | 92 |
| 225M-2 | 45 | 60 | 380 | 50 | 2970 | 92.5 | 0.9 | 81 | 7.5 | 2 | 2.3 | 92 |
| 801-4 | 0.55 | 0.8 | 380 | 50 | 1390 | 71 | 0.75 | 1.6 | 5.2 | 2.4 | 2.3 | 58 |
| 802-4 | 0.75 | 1 | 380 | 50 | 1390 | 73 | 0.76 | 2 | 6 | 2.3 | 2.3 | 58 |
| 90S-4 | 1.1 | 1.5 | 380 | 50 | 1400 | 76.2 | 0.77 | 2.8 | 6 | 2.3 | 2.3 | 61 |
| 90L-4 | 1.5 | 2 | 380 | 50 | 1400 | 78.5 | 0.79 | 3.65 | 6 | 2.3 | 2.3 | 61 |
| 100L1-4 | 2.2 | 3 | 380 | 50 | 1420 | 81 | 0.81 | 5.05 | 7 | 2.3 | 2.3 | 64 |
| 100L2-4 | 3 | 4 | 380 | 50 | 1420 | 82.6 | 0.82 | 6.64 | 7 | 2.3 | 2.3 | 64 |
| 112M-4 | 4 | 5.5 | 380 | 50 | 1440 | 84.2 | 0.82 | 8.62 | 7 | 2.3 | 2.3 | 65 |
| 132S-4 | 5.5 | 7.5 | 380 | 50 | 1440 | 85.7 | 0.83 | 11.5 | 7 | 2.3 | 2.3 | 71 |
| 132M-4 | 7.5 | 10 | 380 | 50 | 1440 | 87 | 0.84 | 15.3 | 7 | 2.3 | 2.3 | 71 |
| 160M-4 | 11 | 15 | 380 | 50 | 1460 | 88.4 | 0.84 | 22.2 | 7 | 2.2 | 2.3 | 75 |
| 160L-4 | 15 | 20 | 380 | 50 | 1460 | 89.4 | 0.85 | 29.8 | 7.5 | 2.2 | 2.3 | 75 |
| 180M-4 | 18.5 | 25 | 380 | 50 | 1470 | 90 | 0.86 | 36.1 | 7.5 | 2.2 | 2.3 | 76 |
| 180L-4 | 22 | 30 | 380 | 50 | 1470 | 90.5 | 0.86 | 42.6 | 7.5 | 2.2 | 2.3 | 76 |
| 200L-4 | 30 | 40 | 380 | 50 | 1480 | 91.4 | 0.86 | 57.2 | 7.2 | 2.2 | 2.3 | 79 |
| 225S-4 | 37 | 50 | 380 | 50 | 1480 | 92 | 0.87 | 69.6 | 7.2 | 2.2 | 2.3 | 81 |
| 225M-4 | 45 | 60 | 380 | 50 | 1480 | 92.5 | 0.87 | 84 | 7.2 | 2.2 | 2.3 | 81 |
| 801-6 | 0.37 | 0.5 | 380 | 50 | 900 | 62 | 0.7 | 1.3 | 4.7 | 1.9 | 2 | 54 |
| 802-6 | 0.55 | 0.8 | 380 | 50 | 900 | 65 | 0.72 | 1.8 | 4.7 | 1.9 | 2.1 | 54 |
| 90S-6 | 0.75 | 1 | 380 | 50 | 910 | 69 | 0.72 | 2.3 | 5.5 | 2 | 2.1 | 57 |
| 90L-6 | 1.1 | 1.5 | 380 | 50 | 910 | 72 | 0.73 | 3.2 | 5.5 | 2 | 2.1 | 57 |
| 100L-6 | 1.5 | 2 | 380 | 50 | 940 | 76 | 0.75 | 3.9 | 5.5 | 2 | 2.1 | 61 |
| 112M-6 | 2.2 | 3 | 380 | 50 | 940 | 79 | 0.76 | 5.6 | 6.5 | 2 | 2.1 | 65 |
| 132S-6 | 3 | 4 | 380 | 50 | 960 | 81 | 0.76 | 7.4 | 6.5 | 2.1 | 2.1 | 69 |
| 132M1-6 | 4 | 5.5 | 380 | 50 | 960 | 82 | 0.76 | 9.9 | 6.5 | 2.1 | 2.1 | 69 |
| 132M2-6 | 5.5 | 7.5 | 380 | 50 | 960 | 84 | 0.77 | 12.9 | 6.5 | 2.1 | 2.1 | 69 |
| 160M-6 | 7.5 | 10 | 380 | 50 | 970 | 86 | 0.77 | 16.9 | 6.5 | 2 | 2.1 | 73 |
| 160L-6 | 11 | 15 | 380 | 50 | 970 | 87.5 | 0.78 | 24 | 6.5 | 2 | 2.1 | 73 |
| 180L-6 | 15 | 20 | 380 | 50 | 970 | 89 | 0.81 | 32 | 7 | 2 | 2.1 | 73 |
| 200L1-6 | 18 | 25 | 380 | 50 | 970 | 90 | 0.81 | 39 | 7 | 2.1 | 2.1 | 76 |
| 200L2-6 | 22 | 30 | 380 | 50 | 970 | 90 | 0.83 | 45 | 7 | 2.1 | 2.1 | 76 |
| 225M-6 | 30 | 40 | 380 | 50 | 980 | 91.5 | 0.84 | 59 | 7 | 2 | 2.1 | 76 |
