Brake Padel Load Cell for Testing of Truck Manufacturing (B)

Name: Brake Padel Load Cell for Testing of Truck Manufacturing (B)
Brand: all-electronics-online.com
SKU: 823397305
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 150-200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B055
Size:	16.515.9mm(HD)
Capacity:	3000n
Accuracy:	0.5%
Load Direction:	Tension
Type:	Sub-Miniature Tension & Compression Load Cell
Pattern:	Tension
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Stain Gauge

Product Description

1. Name: Brake padel load cell for testing of truck (B055)

2. Material and Capacity: Aluminum 500 to 2500N

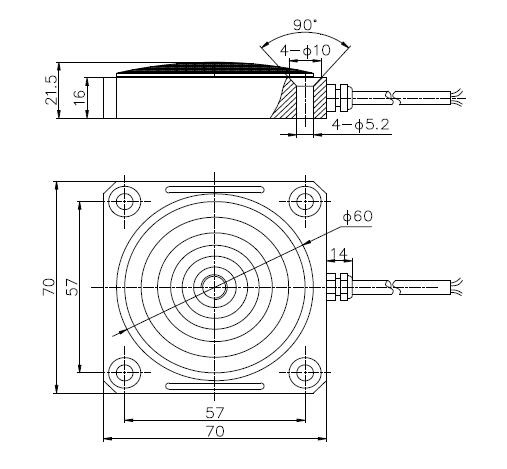

3. Details of Design (Design could be customized)

4. Datasheet

Specifications	Technique
Capacity	500,1000, 1500N
Rated output	4~20mA
Zero balance	±2% F.S.
Non-linearity	0.25%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.1%F.S.
Creep(30min)	0.05%F.S.
Temp.effect on output	0.05%F.S./10ºC
Temp.effect on zero	0.03%F.S./10ºC
Input impedance	780±30Ω
Output impedance	700±10Ω
Insulation	≥2000MΩ/50VDC
Recommended excitation	10V
Maximum excitation	15V
Compensated temp range	-10~60ºC
Operation temp range	-20~80ºC
Safe overload	120%F.S.
Ultimate overload	200%F.S.
Cable size	Φ4×2000mm
Material	aluminum alloy
Weight approx.	0.4kg
IP Class	IP67

5. Application details

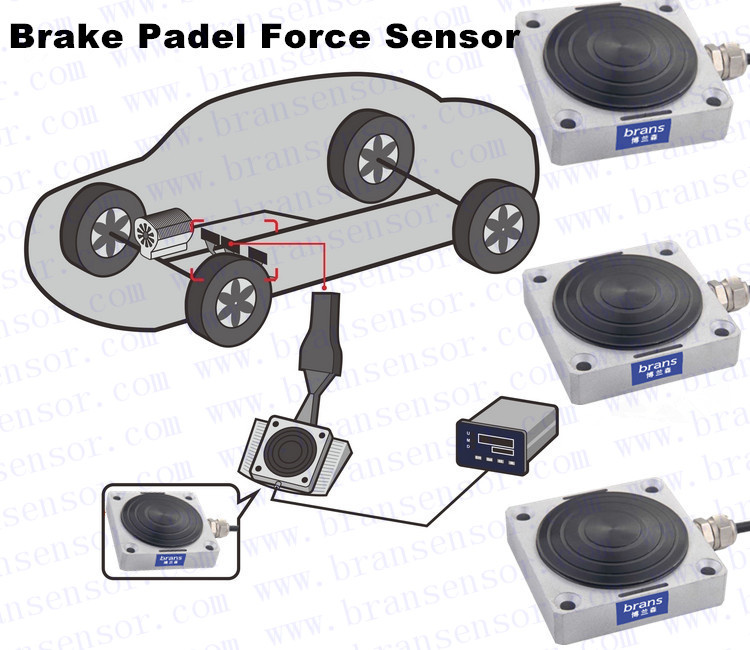

This Pedal Force Sensors are designed to measure load applied to the brake, accelerator, and clutch pedals during acceleration, deceleration, and transmission shift events. The units are compact and light weight, making them easy to install and remove. These sensors also have a high overload protection (120% of FS) which prevents damage to the sensor in the event of a vehicle panic stop. All models include anti-slip spherical loading surface to minimize the effects of off-axis loading. These sensors are durable and accommodating for your automotives ting requirements.

(1) Drive ability

(2) Vehicle Handling

(3) Transmission Shift Quality

(4) Legislative & Safety Testing

(5) Vehicle Brake Development

6. Product Highlights:

★Lowest nonlinearity and hysteresis of any brake pedal load cell

★Ultra low height, Easy to install and remove

★Low sensitivity to off-center loads

★Mounts directly to pedal with included strap(s)

★Interchangeable mounting plates

★For use with gas, brake or clutch pedal storage case included

Different applications for different size and accuracy could be made according to your own design.

www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
