Brake Pressure Sensor

Name: Brake Pressure Sensor
Brand: all-electronics-online.com
SKU: 747636975
Availability: InStock
Rating: 4.4 (68 reviews)

Price:	US $ 300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CXPTB-215
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Range:	-1~0~200MPa
Accuracy:	0.25%Fs, 0.5%Fs
Nonlinearity:	Full Range X 0.2%
Reliability:	Full Range X 0.05%
Output:	4-20mA, Hart Option
Input Voltage:	24(9-36V)DC (Standard)
Operating Temperature:	-20~80c
Compensated Temperature:	0~70c
Overload Pressure:	150%Fs
Wetted Parts:	Stainless Steel
Type:	Pressure Measurement

Product Description

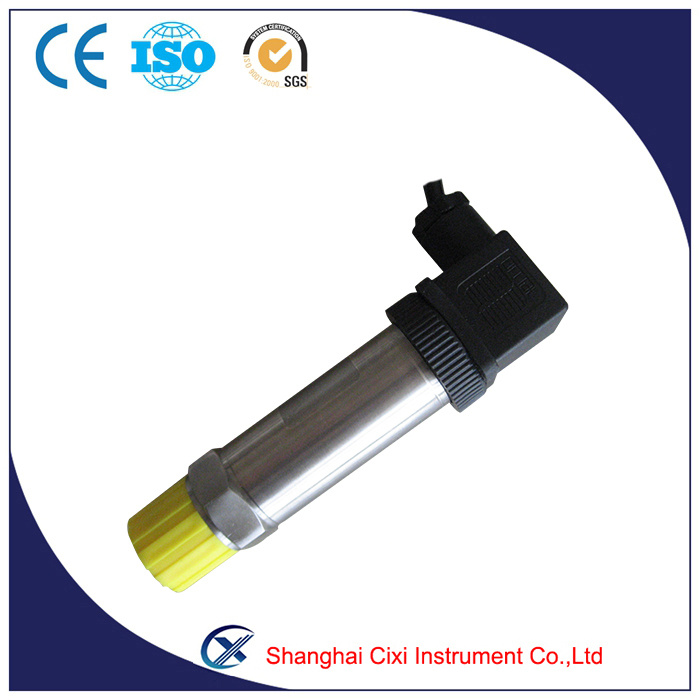

CXPTB-215 Industrial Pressure Transmitter
(Explosion proof)

Description

With stainless steel welding encapsulated component and lightning proof isolation device, CXPTB-215 (Explosion Proof : EXiallCT4-6) has the character of corrosion proof, wide range temperature compensation, excellent linearity and diversifying output signal .This series can be suitable for liquid pressure measuring for explosion proof in automatization fields

Application

Mechanical Engineering Industry
Hydraulic and level measurement
Food & Beverag
Industrial test and control
General industrial applicastions

Feature

Pressure Range:0…0.2bar to 0….600bar available
Various standard Industrial signal output
All stainless steel and anticorrosive
Stronger anti-jamming ability
High stability & high sensitivity
Intrinsically safe & explosion proof construction

Specification

Range 0….1to 0….600bar
Accuracy 0.25%FS;0.5%FS
Nonlinearity 0.2%FS
Reliability 0.05%FS
Output 4-20mA(2 Wire), 0-5V; 0.5-4.5V
Input voltage 24(12~36)VDC (Amplify signal)
Work Temperature Range -0~80ºC
Compensated temp range 0~70ºC
Overload pressure 150%FS
Medium material stainless steel
Electric connection Hirschman(DIN, M12 & 4 PIN, Bendix connector, cable customer design)
Pressure connection G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5,etc(Customer design)

roduction Line

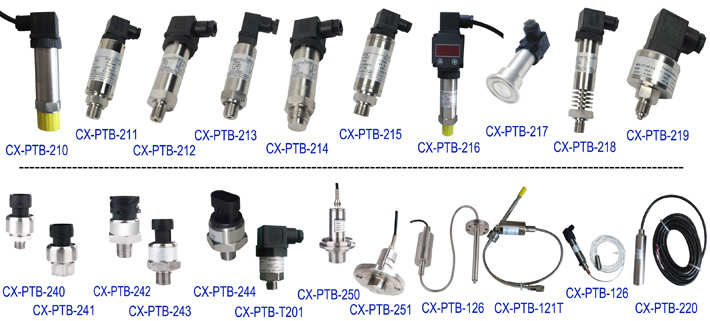

Series of Products

Group Photo

Payment Terms

1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal

After-sales service

We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Our Integrity Promises your Quality !

Please contact with me, I will provide you professional service and high quality products.

Electric connector	2wire(4-20mA)				3wire (0-10V, 0-5V, 0.5-4.5V)
Hirschman 3 GSP	Pin	Function		Color	Pin	Function		Color
	1	E+/S+		Red	1	E+		Red
	2	E-/S-		Black	2	S+		Blue
	3	---		---	3	E-/S-		Black
M12,4Pin 1 2 4 3	Pin	Function		Color	Pin	Function		Color
	1	E+		Brown	1	E+		Brown
	2	---		---	2	---		---
	3	E+		Blue	3	S+		Blue
	4	---		---	4	E-/S-		White
Cable	Function		Color		Function		Color
	E+		Red		E+		Red
	S+		Black		S+		Blue
	---		---		E-/S-		White

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
