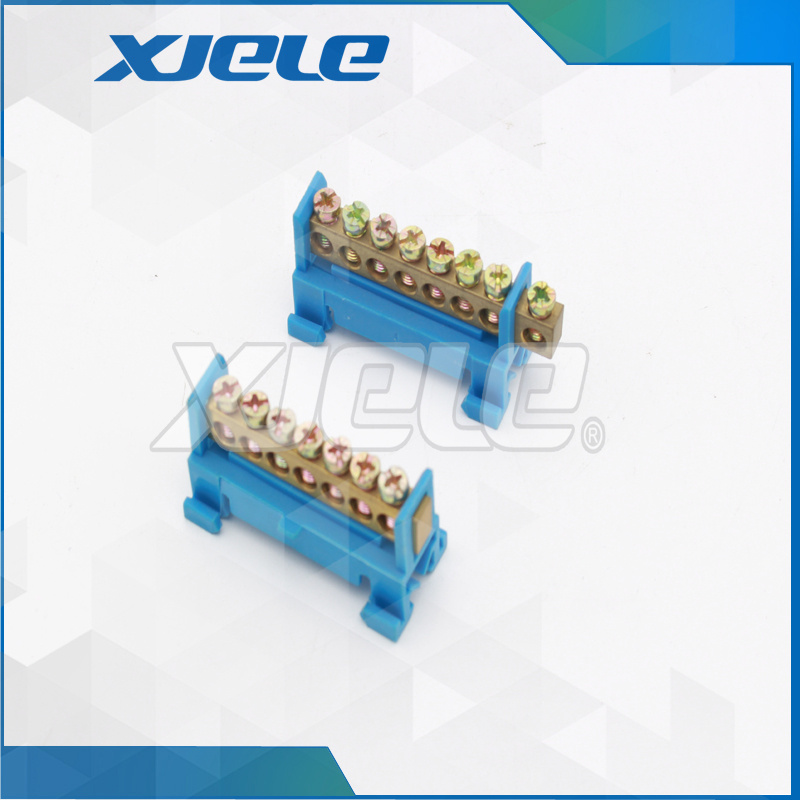

Brass Bar Terminal Block

Name: Brass Bar Terminal Block
Brand: all-electronics-online.com
SKU: 833278415
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	US $ 0.5-1/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S
Material:	Copper
Application:	Conduct Electricity
Type:	DIN Rail
Brand:	Xjele

Product Description

Technical data:
Material:
PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation .Working Termperature: - 40ºC to 65ºC, short time is 80ºC.
PA, Polyamide 6/6, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force, Working Termperature: - 35ºC to 125ºC, short time is 140ºC.
Brass, screw is Iron plated zinc.
Voltage: 250 - 450V
Color: blue and green color as standard
Remark: We can according to customer require supply different size, such as, different length, width, hole diameter etc.

Item no.	Spec.	L1	L2	H	W	ø	screw size	Plastic setting
Item no.	w×h - hole	mm					screw size	Plastic setting
S030-01	6×9 - 7	55	35	28	11	5.2	M4×8	PE PA
S030-02	6×9 - 8	60	35	28	11	5.2	M4×8	PE PA
S030-03	6×9 - 10	74	35	28	11	5.2	M4×8	PE PA
S030-04	6×9 - 12	88	35	28	11	5.2	M4×8	PE PA
S030-05	6×9 - 15	106	35	28	11	5.2	M4×8	PE PA
