Brass Flow Switch for Non-Aggressive Fluid

Brass Flow Switch for Non-Aggressive Fluid
Price: US $ 5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: FS-M-PDB01-GE-FM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium: Water, Non-Aggressive Fluid
Housing Material: Brass
Contact Form: Spst No
Protection Grade: IP65
Max.Fluid Pressure: 1.5MPa

Product Description

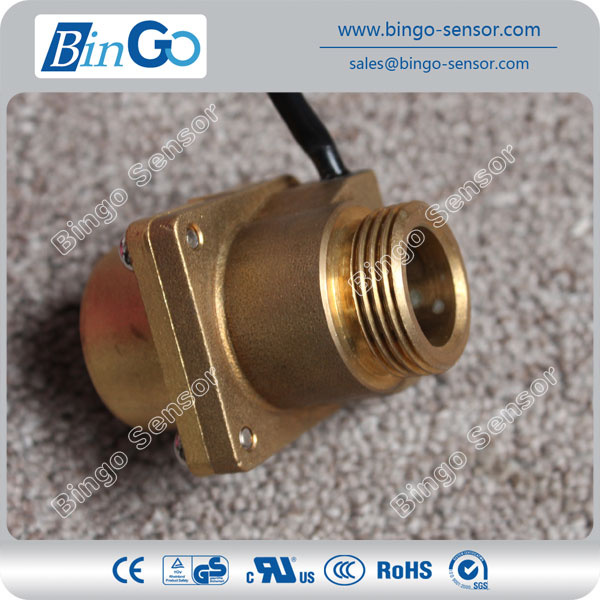

                 Paddle Type Flow Switch(FS-M-PDB01-GE-FM)
It is used in liquid flow Lines carrying water or any fluid not harmful to brass or phosphor Bronze and not classified as a hazardous fluid.

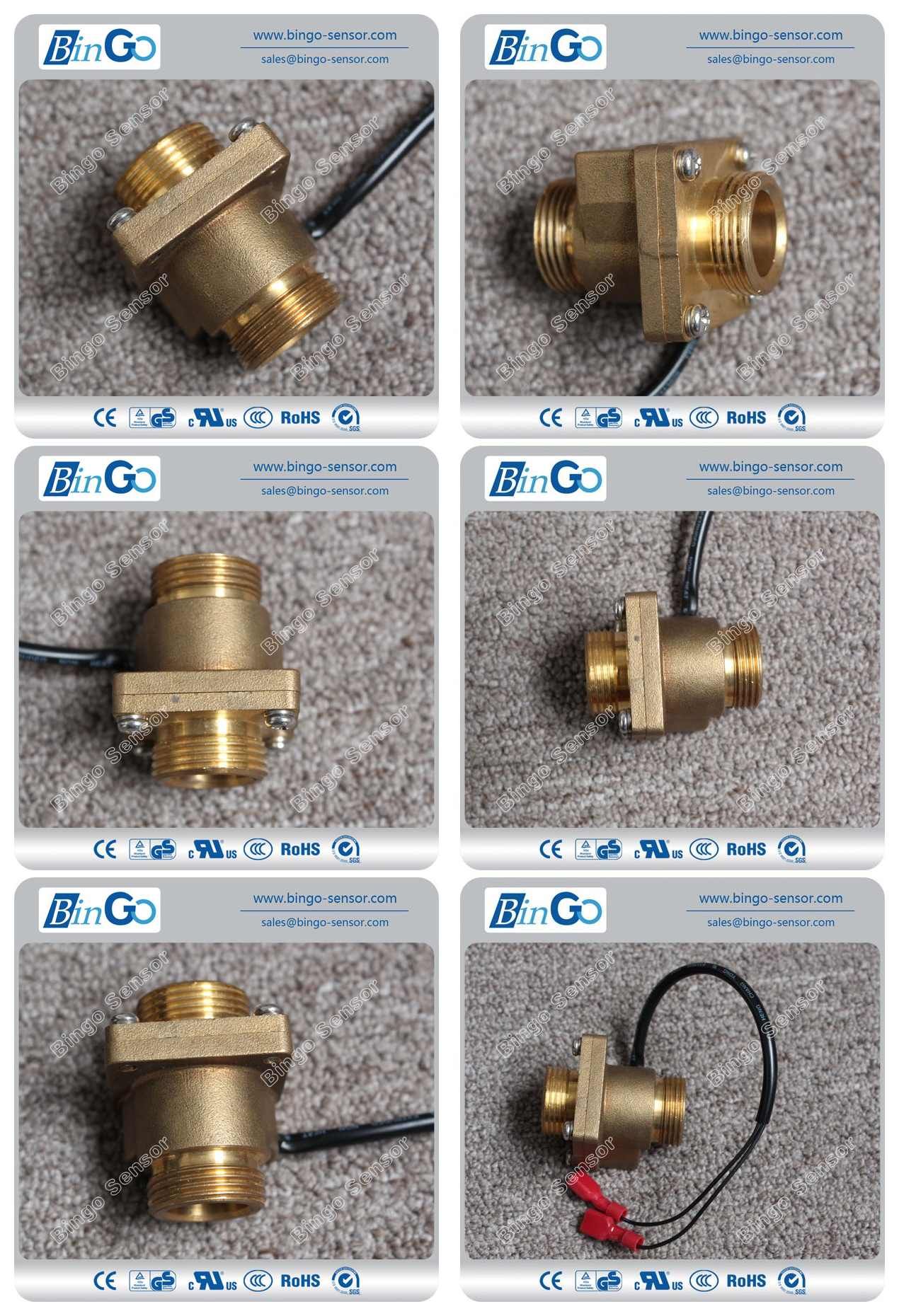

Product Show
Pressure Specification
ModelFS-M-PDB01-GE
MediumWater and None agressive fluid
Housing materialBrass
Long time working temperature≤80ºC
Max.fluid temperature≤100ºC
Start-up flow rate1.5L/min
Max.flow rate35L/min
ConnectionG3/4''
Operate pressure≤1.0Mpa
Max.fluid pressure1.5Mpa
Electrical rate1.0A/250VAC,70W
Contact formSPST NO
Protection gradeIP65

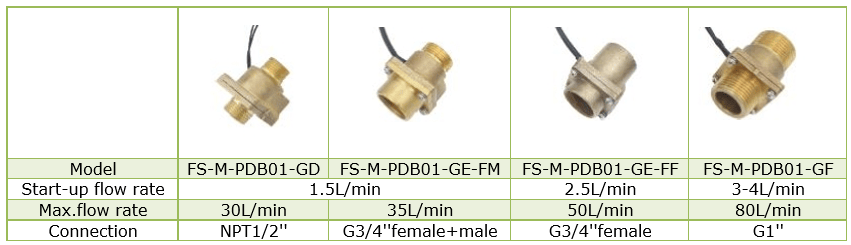

Other Type

About US

Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.

We owns followed two subsidiary corporations:

Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.

Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.

After several years development, Bingo now becomes a professional supplier for

* Pressure, level and flow control product applied to:

Water supply system

HVAC

Household appliances (refrigerator, Furnace, heater, dish-washing machine,

Water dispenser, food waste disposer and so on)

Steam control system

Vehicle

Oil transporting system

Medical equipment

* Security product

Warning light

Roadway safety

Mining safety

Alarm sire

* Electronic&Electrical product

Tact switch

Micro switch

Toggle switch

Foot switch

Earphone jacket

Industrial plug&socket

With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.

At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.

We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.

Looking forward to a win-win relationship with you!
