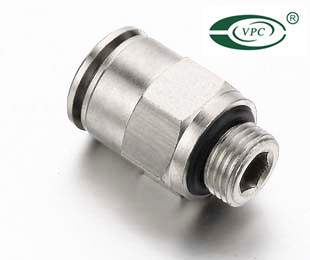

Brass Nickel Plated Equal Straight Push in Connectors

Name: Brass Nickel Plated Equal Straight Push in Connectors
Brand: all-electronics-online.com
SKU: 762828345
Availability: InStock
Rating: 5 (149 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VMPU04 VMPU06 VMPU08 VMPU10 VMPU12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface:	Nickel-Plated Brass
Gender:	Male
Application:	UHF

Product Description

Brass nickel plated equal straight push in connectors are pneumatic fittings which can be used in the food industry. They are suitable for use in the medical, chemical, pharmaceutical & electronics industries
Quick Details
Material: Copper
Technics: forged and finish machining
Type: Union
Place of Origin: Zhejiang, China (Mainland)
Model Number: VMPU, VMPY,VMPE,VMPV,VMPGJ,VMPM
Brand Name: VPC copper pipe fittings
Connection: Female
Shape: Equal
Head Code: round
material: copper
type: coupling
description: copper pipe fittings
Brass nickel plated equal elbow push in connectors are pneumatic fittings which can be used in the food industry. They are suitable for use in the medical, chemical, pharmaceutical & electronics industries
Packaging & Delivery

Packaging Details:	Export standard packing(VPC BOX+VPC CARTON+PALLET) Neutral packing also avaiable
Delivery Detail:	10~15 days

Specifications

high quality copper fittings
firmly and durable
we can produce customized products to meet our customer's special requirement
Brass nickel plated equal straight push in connectors are pneumatic fittings which can be used in the food industry. They are suitable for use in the medical, chemical, pharmaceutical & electronics industries

summary:
Copper fittings also named brass fittings. The color is available. It is widely be used in high temperature and high pressure where plastic fitting isn't competent. Like G thread, PT thread, inch NPT thread are optional. There are many types. For instance, straight, bulkhead, reducer, elbow, Long socket elbow, Branch Y, Branch T and Branch double etc. Delicate appearance, wide range of applications.
high quality copper fittings
firmly and durable
we can produce customized products to meet our customer's special requirement.
samples for your checking

Specifications:

SPECIFICATION
Fluid	Air, Vacuum
Operating Pressure	0~1.0Mpa
Operating Temperature	-20°c~+80°c
Applicable Tube	Polyurethane/ Polytene/Nylon

Size & Model

Metal One touch Fitting

MODEL( ΦD-T)
Tube(Metric)
VMPU04	VMPE04	VMPY04	VMPV04	VMPM04
VMPU06	VMPE06	VMPY06	VMPV06	VMPM06
VMPU08	VMPE08	VMPY08	VMPV08	VMPM08
VMPU10	VMPE10	VMPY10	VMPV10	VMPM10
VMPU12	VMPE12	VMPY12	VMPV12	VMPM12

MODEL( ΦD-T)
Tube(Metric )-Thread(G)
VMPGJ06-04	VMPC04-M5	VMPC06-G02	VMPC
VMPGJ8-04	VMPC04-M6	VMPC06-G03	VMPC10-G01
VMPGJ8-06	VMPC04-G01	VMPC06-G04	VMPC10-G02
VMPGJ10-06	VMPC04-G02	VMPC08-G01	VMPC10-G03
VMPGJ10-08	VMPC06-M5	VMPC08-G02	VMPC10-G04
VMPGJ12-08	VMPC06-M6	VMPC08-G03	VMPC12-G03
VMPGJ12-10	VMPC06-G01	VMPC08-G04	VMPC12-G04

MODEL( ΦD-T)
Tube(Metric)-Thread(G)
VMPL04-M5	VMPB04-M5	VMPCF04-G01
VMPL04-M6	VMPB04-M6	VMPCF04-G02
VMPL04-G01	VMPB04-G01	VMPCF06-G01
VMPL04-G02	VMPB04-G02	VMPCF06-G02
VMPL06-M5	VMPB06-M5	VMPCF06-G03
VMPL06-M6	VMPB06-M6	VMPCF08-G01
VMPL06-G01	VMPB06-G01	VMPCF08-G02
VMPL06-G02	VMPB06-G02	VMPCF08-G03
VMPL06-G03	VMPB06-G03	VMPCF08-G04
VMPL06-G04	VMPB06-G04	VMPCF10-G01
VMPL08-G01	VMPB08-G01	VMPCF10-G02
VMPL08-G02	VMPB08-G02	VMPCF10-G03
VMPL08-G03	VMPB08-G03	VMPCF10-G04
VMPL08-G04	VMPB08-G04	VMPCF12-G02
VMPL10-G01	VMPB10-G01	VMPCF12-G03
VMPL10-G02	VMPB10-G02	VMPCF12-G04
VMPL10-G03	VMPB10-G03	VMPSC04-G01
VMPL10-G04	VMPB10-G04	VMPSC04-G02
VMPL12-G02	VMPB12-G02	VMPSC06-G01
VMPL12-G03	VMPB12-G03	VMPSC06-G02
VMPL12-G04	VMPB12-G04	VMPSC08-G01
		VMPSC08-G02
