British Standard 13A 2 Gang Wall Switch Socket with Ce

Name: British Standard 13A 2 Gang Wall Switch Socket with Ce
Brand: all-electronics-online.com
SKU: 691409041
Availability: InStock
Rating: 5 (76 reviews)

Price:	US $ 2.99-3.89/Piece
Min Order:	400/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	N406AB
Product Name:	Wall Switch Socket
Max Current:	13A
Panel Material:	Stainless Steel
Market:	Europe MID-East Africa Asia
Lead Time:	20-30days
Guarantee:	10years
Panel Color:	Antique Nickel
Max Voltage:	220V-250V
Service:	OEM Is Accepted
Advantage:	Fashion Appearance
Grounding:	Standard Grounding
Type:	With Switch
Application:	Residential/General-Purpose
Rated Current:	13A
Shell Material:	Stainless Steel
Brand:	Shinelite

Product Description

Product characteristic:

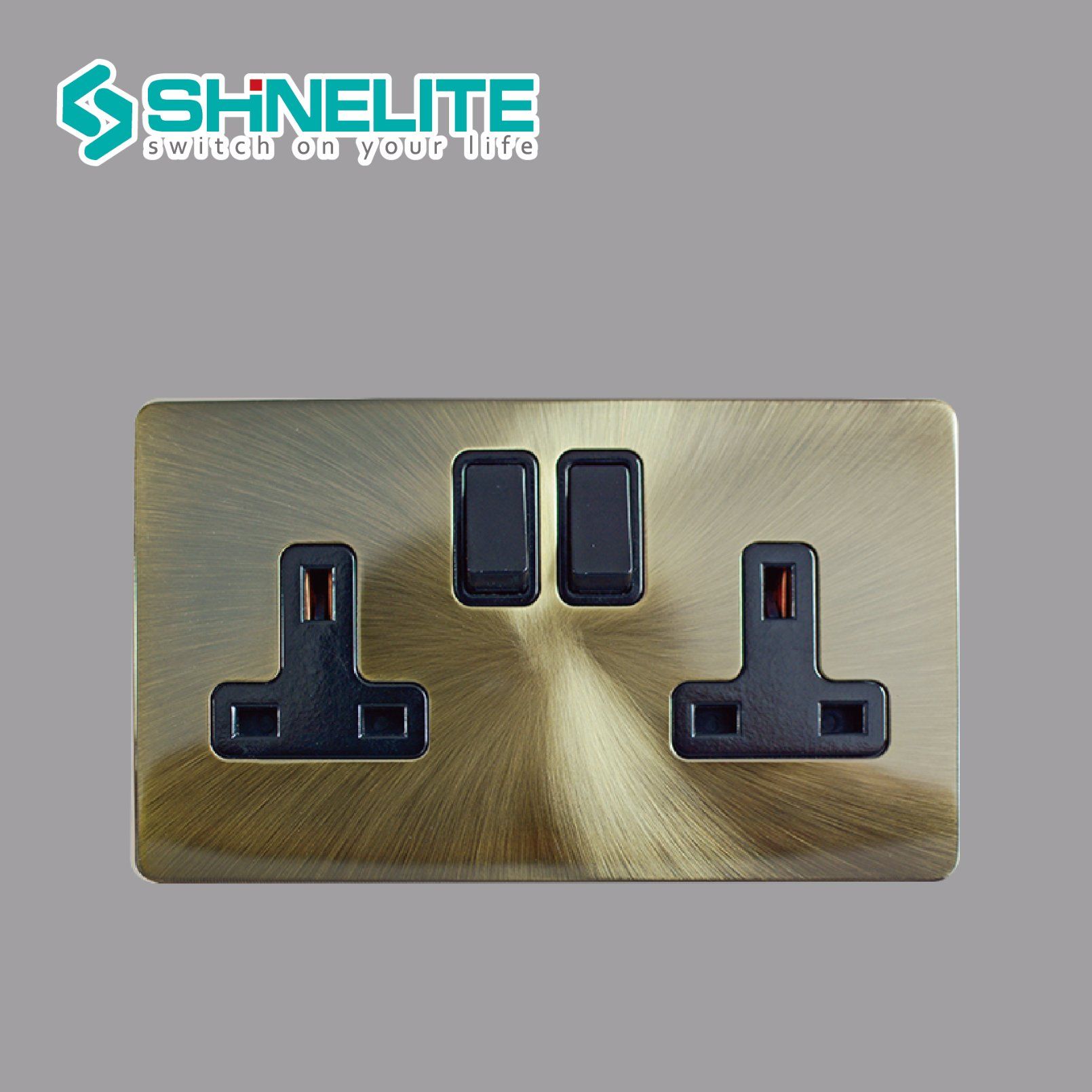

British Standard 13A 2 Gang wall Switch Socket with CE

the switch contacts are made of high quality silver alloy material, which have a good performance against electric arc and melt weld. the on-off operations exceed40000 times.
the socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.

outline size:	86X146mm
installation size:	120
material:	stainless steel
copper:	qsn5.6-0.1 h62 hpb59

Switch specification

lifetime	≥40000
heat-resistant	100 • c / 1h
insulation resistance	≥5m ω
damp resistance	48h > 5m ω
temperature raise	≤ 45K
earthing provision	≤0.05m ω

Socket specification

lifetime	≥5000
heat-resistant	100 • c / 1h
insulation resistance	≥5m ω
damp resistance	48h > 5m ω
temperature raise	≤ 45K
earthing provision	≤0.05m ω
electric strength	2000 V ~1 min

Shanghai Shinelite Electric Co., Ltd is a well-established company with 12 years manufacturing experience, which specializes in manufacturing British Standard wiring accessories.

Our main market is Europe, Middle East, South America, Africa and Asia.

Our products contain more than 15 series and 1000 items, including wall switch, socket, extension socket, lampholder, plug, junction box, ceiling rose, metal box and other electrical accessories.

Our factory are qualified with ISO9001 and our products are CE CB SASO approval. More about us pls refers to our website www.shinelite.cc
