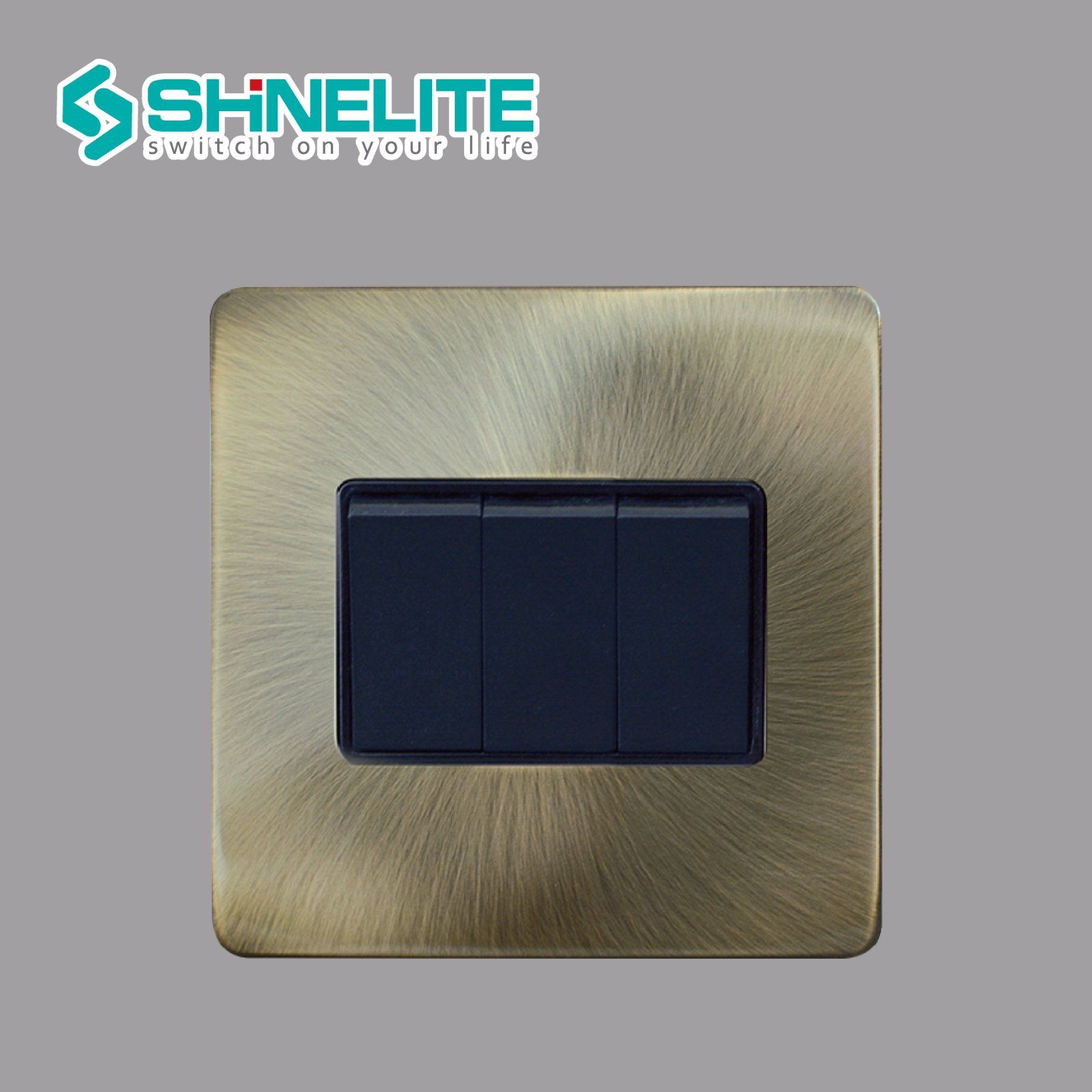

British Standard 3 Gang 1 Way Screweless Wall Switch OEM

Prod Model:	N305AB
Panel Material:	Stainless Steel
Inside Material:	Phosphor Copper Silver Alloy
Market:	Europe MID-East Africa Asia
Lead Time:	20-25days
Package:	10PCS/Box.100PCS/CTN
Guarantee:	10years
Panel Color:	Chrome
Max Voltage:	220V-250V
Max Current:	10A
Advantage:	Easy Installation
Type:	Normal Open
Kind:	Single-pole on-off Switch
Brand:	Shinelite

Product Description

Product characteristic:

the switch contacts are made of high quality silver alloy material, which have a good performance against electric arc and melt weld. the on-off operations exceed40000 times.
the socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.

outline size:	86X86mm
installation size:	60
material:	strainless steel
copper:	qsn5.6-0.1 h62 hpb59

Switch specification

lifetime	≥40000
heat-resistant	100 • c / 1h
insulation resistance	≥5m ω
damp resistance	48h > 5m ω
temperature raise	≤ 45K
earthing provision	≤0.05m ω

Socket specification

lifetime	≥5000
heat-resistant	100 • c / 1h
insulation resistance	≥5m ω
damp resistance	48h > 5m ω
temperature raise	≤ 45K
earthing provision	≤0.05m ω
electric strength	2000 V ~1 min

Company information:
Shanghai shinelite electric Co., Ltd is a well-established company with 12 years manufacturing experience, which specializes in manufacturing British standard wiring accessories. our main market is Europe, Middle East, south east, south America, Africa and Asia.
our products contain more than 15 series and 1000 items, including wall switch, socket, extension socket, lampholder, plug, junction box, ceiling rose, metal box and other electrical accessories.
