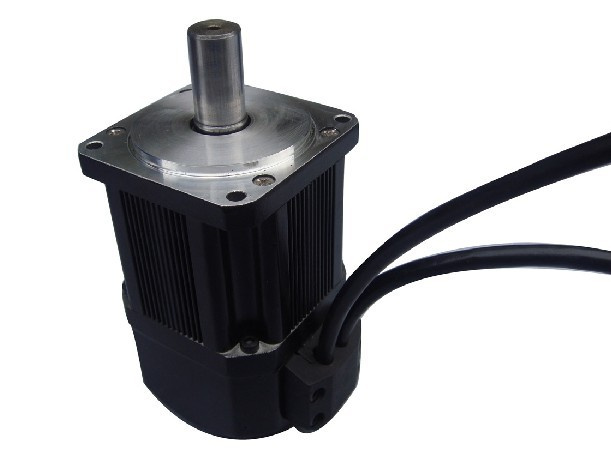

Brushless AC Servo Motor for Automatic Machine

Name: Brushless AC Servo Motor for Automatic Machine
Brand: all-electronics-online.com
SKU: 679877765
Availability: InStock
Rating: 4.5 (76 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	110ST
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: 110st-M04030:	Speed: Variable Speed
Function: Driving, Control:	Number of Poles: 8
Certification: ISO9001, CCC:	Number of Stator: Single-Phase
Rated Power(W): 1200:	Casing Protection: Explosion-Proof Type
Starting Mode: Variable Frequency Starti:	Export Markets: Global
Application:	Power Tools
Operating Speed:	Constant Speed

Product Description

130mm, 15N. M, 2500RPM.

Motor model	110ST-M04030
Rated power(kw)	1.2
Rated current(A)	5
rated speed(rpm)	3000
Rated torque(N.m)	4
Peak torque(N.m)	12
Voltage constant (V/1000r/min)	54
Moment coefficient(N.m/A)	0.8
rotor inertia(Kg.m2)	0.54*10 -3
Resistance line-line (Ω)	1.09
Inductance line-line(mH)	3.3
Electrical time constant(ms)	3.0
Encoder line(PPR)	2500
Weight(KG)	3.4
Insulation class	Class B (130) degree
Grade of Protection	IP65
The operating of Evironmental conditions	Temperature	-20 ~ + 50 degree
	Humidity	Below 90%RH No dewing
	Environment	Far away active gas,combustible gas, oil drop,ash.

1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.

2. Q: Do you have the products in stock?
A:  Our products are manufactured according to your order except the normal products .

3. Q: What's the delivery time?

A:  I t usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.

4. Q: Can I choose the different brake to the motors?
A: Yes, you can choose the different kinds of brake or without brake.

5. Q: How does your factory do regarding quality control?
A: Quality is priority. Miger people always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment
.
6. Q:What's your warranty terms?
A:  We offer different warranty time for different products. Please contact with us for detailed warranty terms
