Brushless DC Motor 36V 4800rpm 57bls02 Round Motor

Name: Brushless DC Motor 36V 4800rpm 57bls02 Round Motor
Brand: all-electronics-online.com
SKU: 788884525
Availability: InStock
Rating: 4.8 (24 reviews)

Price:	US $ 14.5-18.33/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	57BLS02
Voltage:	36V
Poles:	8
Frame Size:	57mm*57mm
Body Length:	67mm
Motor Wires:	8
Rated Speed:	4000rpm
Rated Torque:	0.22n.M
Output Power:	92W
No Load Speed:	4800rpm
Key Word:	BLDC Motor
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	by BLDC Motor
Type:	BLDC Motor
Certification:	Ce and RoHS
Brand:	Jkong Motor

Product Description

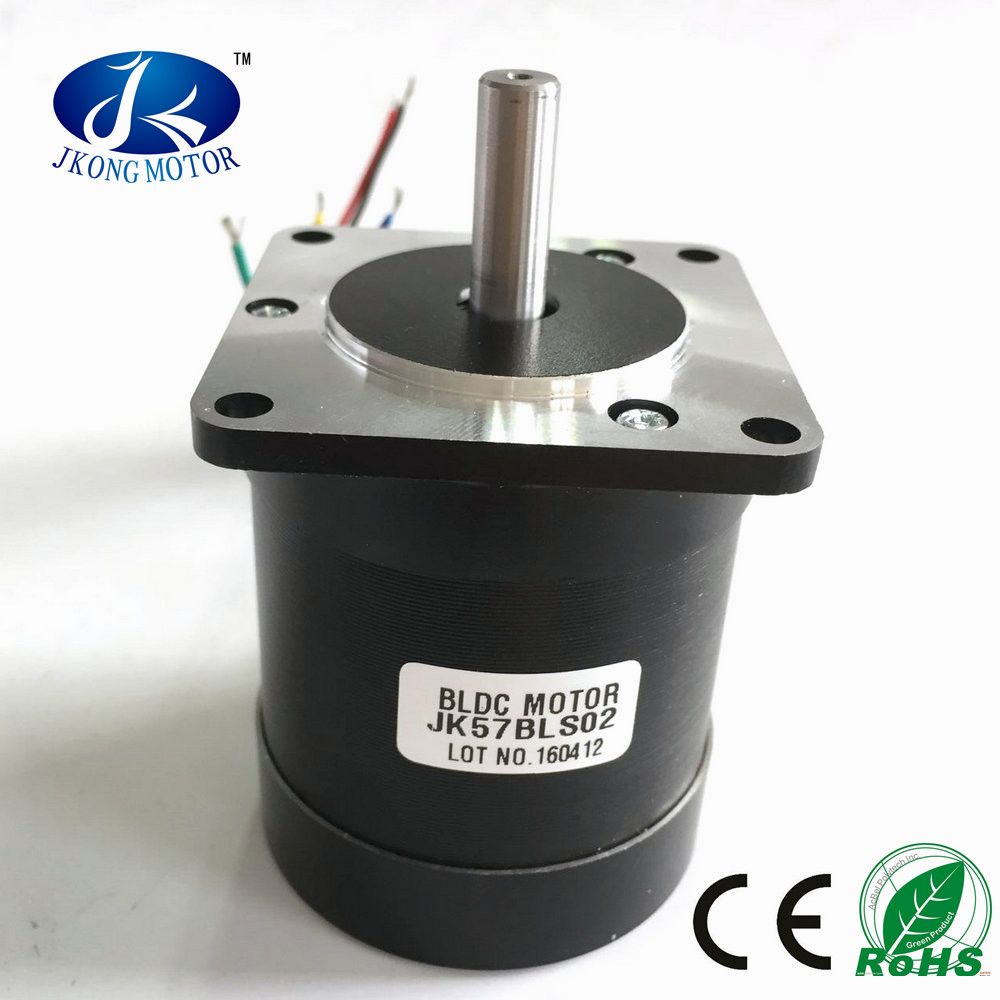

Brushless DC Motor 36V 4800rpm 57bls02 Round Motor

General Specification:

Winding type	Delta
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
RadialPlay	0.02mm@450g
End Play	0.08mm@450g
Dielectric strength	500VDC for onr minute
Max radial force	75N@20mm from the flange
Max axial force	15N
Insulation resistance	100MΩMin.,500VDC

Electrical Specification

Model	JK57BLS02
Number of poles	3
Number of phase	8
Rated voltage	36
Rated speed	4000
Rared torque	0.22
Rated power	92
Peak torque	0.7
Peak current	11.5
Resistance	0.7
Inductance	2.16
Torque constant	0.063
Back E.M.F	6.6
Rotor inertia	75
Body length	67

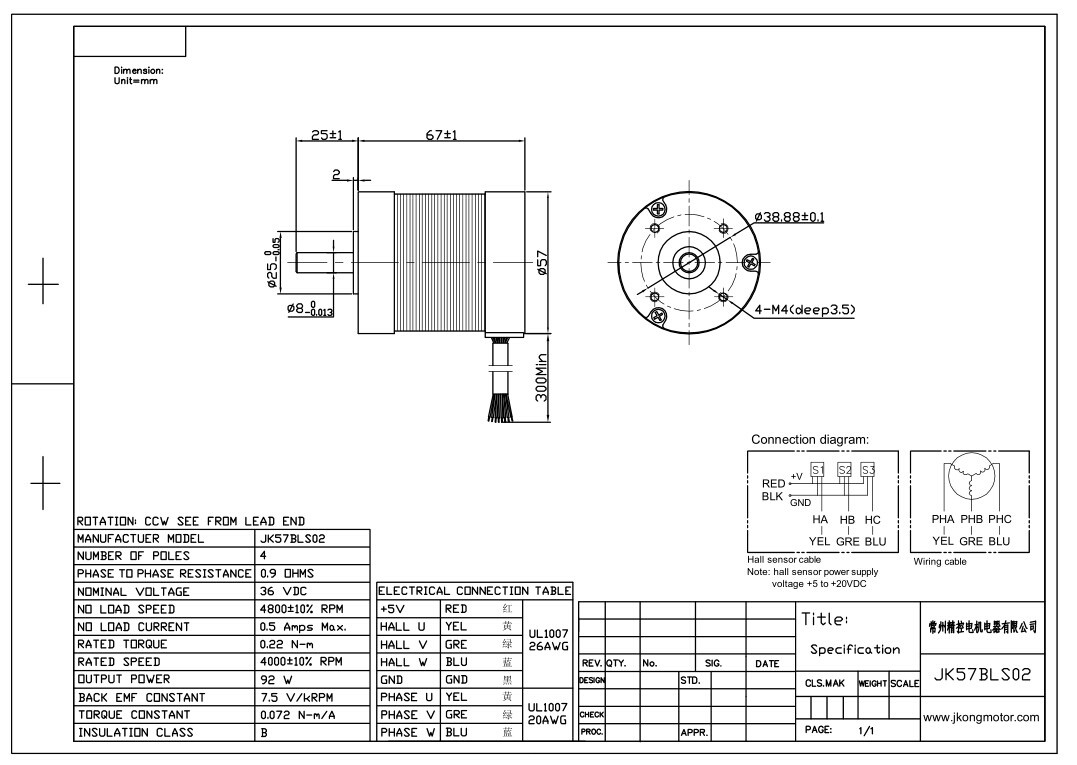

Drawing:

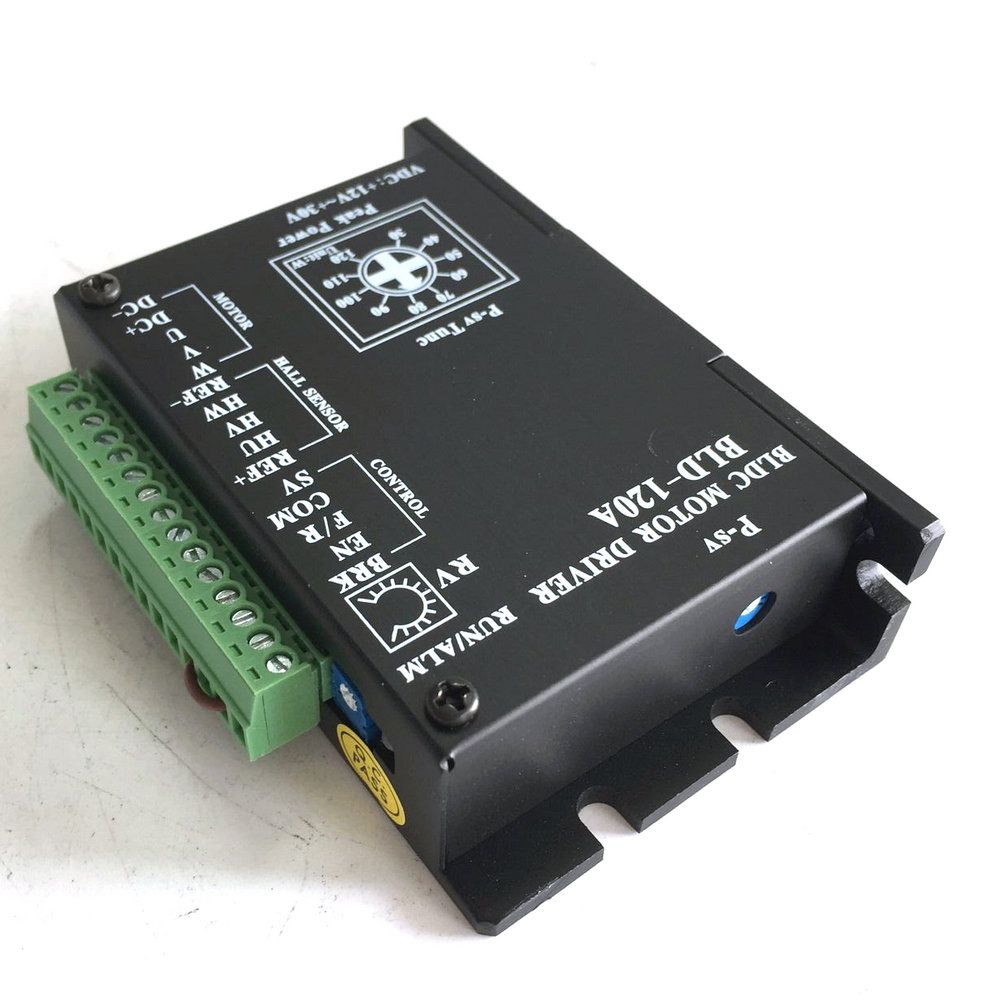

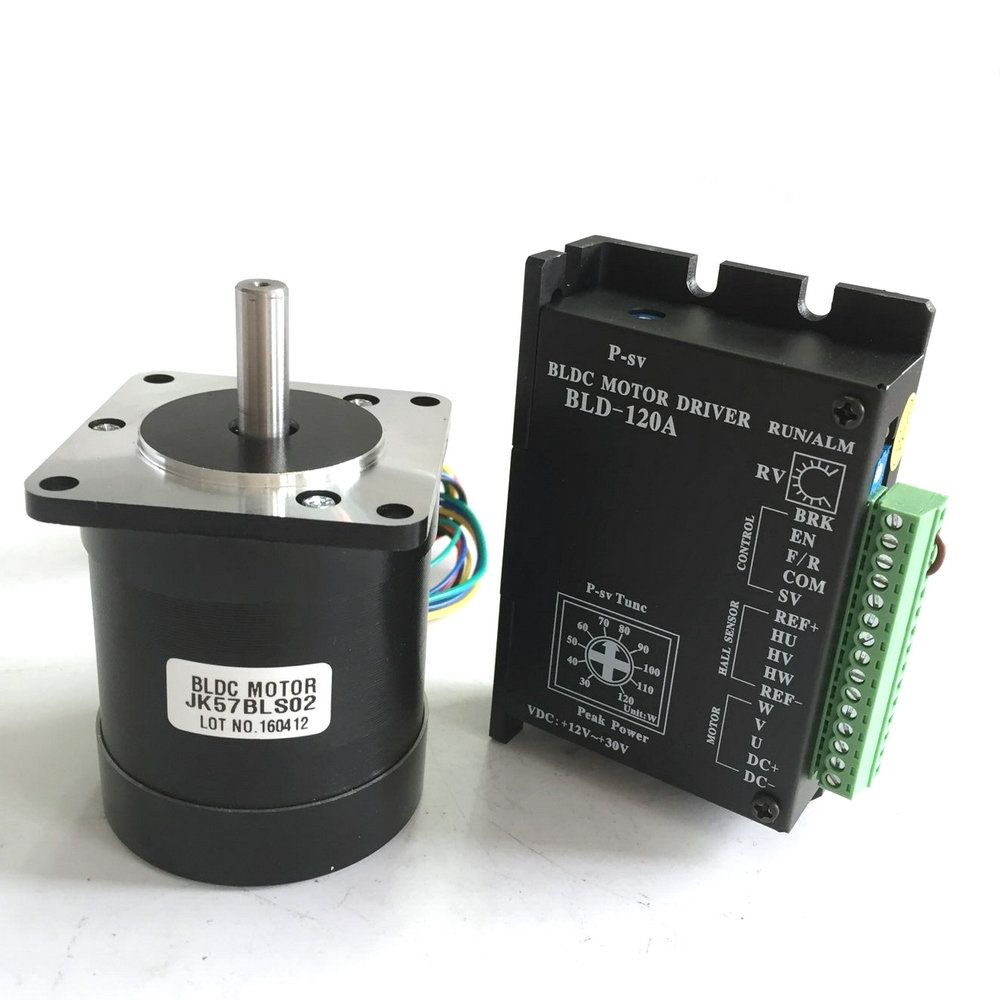

Matched Driver JKBLD-120A

Description

The model of brushless dc motor drive is suitable for use in power for 125 va and under three-phase brushless dc motor

This product design adopts advanced DSP control technology, with large torque, low noise, low vibration, fast
Stop-start features, at the same time have the PID current and speed closed loop control, overvoltage, undervoltage, over current, over temperature
Protection function, can realize PWM external input, analog input speed regulating a variety of ways.

Electrical parameters:

Parameters	Min	Rated	Max	Unit
Hall effect angle	120°/240°
Power supply input voltage	12	24	30	V
Driver current output		5	8	A
Motor speed	0		20000	rpm
Hall signal voltage	4.5	5	5.5	V
Hall signal current		20		mA
External potentiometer		10K		Ω

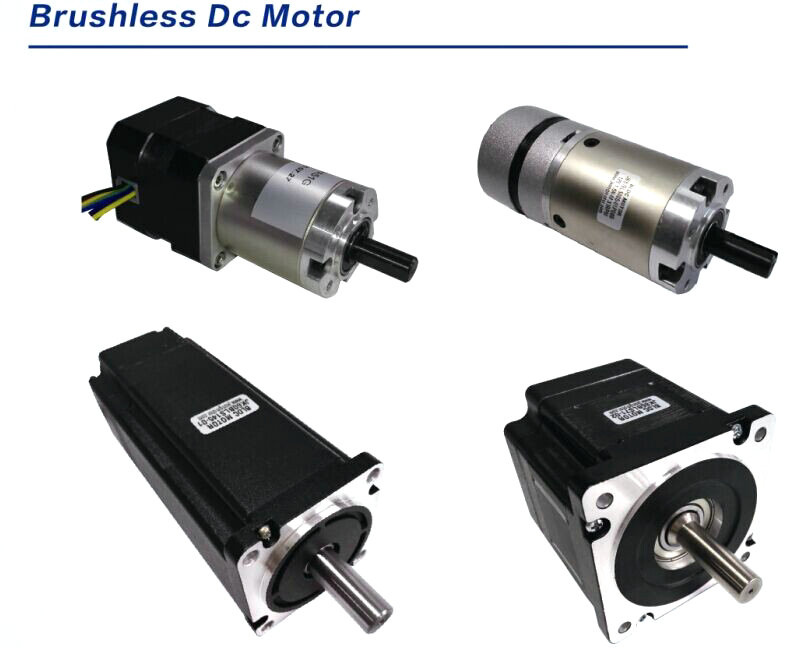

BLDC MOTOR IN HOT SELL

Company Show:

CHANGZHOU JINGKONG MOTOR & ELECTRIC Appliance Co.ltd is a high-tech enterprise that specializes in designing and producing Hybrid Stepper Motor, Gear Motor, Linear motor, Brushless dc Motor, Driver and some related parts.

Our Appliance fields refer to robot, electronic equipment, medical instrument, lighting & audio equipment, 3D printer, texile machine and CNC machine.

All our products have obtained CE certification, compliance with EU ROHS standards.

Welcome Domestic & foreign customers visit and cooperation!

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
