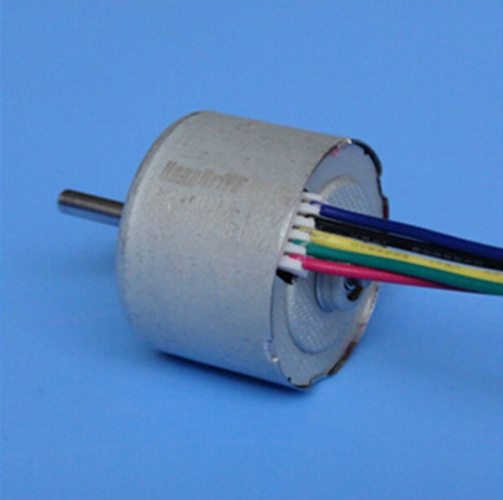

Brushless DC Motor (BLDC) for Power Tool and Medical Device

Prod Model:	B2820M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	1-10W
Rated Voltage:	12/24V
Weight:	45g(Approx.)
No Load Speed:	10000rpm
Rated Load Speed:	9000rpm
Rated Current:	0.2-0.6A
Torque:	22mnm
Application:	Power Tools
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless

Product Description

These series of brushless dc motors are widely used in different fields such as:

Home Application——Small Appliance, Electric Curtain, Electric Windows/Door, Small Cross-flow Fan;
Industry Facilities——Printing Machine, Binding Machine, Cutting Machine, Electric Valve;
Medical Apparatus——Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine;
Business Equipment:——Cash Register, ATM, TV set Frame;
Personal Care——Massager, Vibrator, Malaxation Apparatus, Scrub Apparatus.
The advantage of our bldc motors include:CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long running life 10000-30000hrs.
Customer satisfaction is our primary aim. We have professional engineers and always meet the demands of motor users with certainty of total quality.
Our company pays attention to quality assurance and product certification. Our company invests a lot in techninc and production innovation. It has full motor manufacturing processess in house including tool fabrication.
We accept OEM and all the specification can be changed to meet customer specific requirement.

Torque

22mnm
