Brushless DC Torque Motor for Sharpening Machine (FXD60BL-220100-001A)

Brushless DC Torque Motor for Sharpening Machine (FXD60BL-220100-001A)
Price: US $ 70.8-130/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: FXD60BL-220100-001A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed Of The Motor: 1000-7000 Rpm
Power Of The Motor: 1-250 Watts
Torque Of The Motor: 0.3 N.M
Application: Power Tools
Operating Speed: Adjust Speed
Excitation Mode: Compound
Structure And Working Principle: Brushless
Type: Brushless DC Motor
Certification: CE
Brand: Fxd Motors

Product Description

Product descripion:

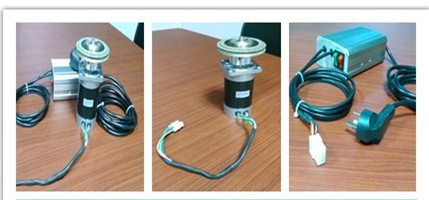

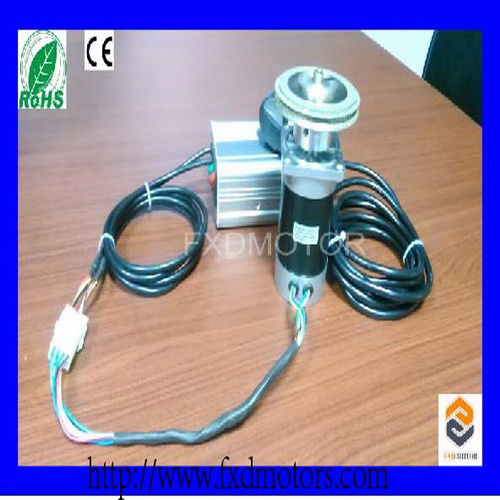

57mm size(NEMA 23) round brushless dc  motor with driver inside is used very efficiency on different electromechanical device.
Our FXD60BL-220100-001A Series bldc motor have lots of   advantages as below:
1.Nema 23 Brushless dc gear motor
2.Model Number: FXD60BL-220100-001A
3.Phase: 3 Phase
4.Lead Wire(No.): 8 wires
5.Shape:  Rounded
6.Motor OD: 60mm(2.36inch)
7.Speed:0-7000 rpm adjusted
8.Applications: Use for Robots bldc motor, electronic automatic equipment bldc motor, medical instrument BLDC motor, advertisementing instrument bldc motor, textile machine motor,audio equipment bldc motor, advertising lamp box. Cnc brushless dc motor,Bump motor and fan motor by solar.
9.This motor is 60mm squared brushless dc motor.The controller is designed by ourself.The controller have lots of  fuction.You can use the motor at 5000 rpm and 7000 rpm.The speed is constant. For the constant speed ,you can sharpen the cutter tartly.

Gemeral info.
Model No: FXD60BL-220100-001A Type:  Brushless dc motor
Widing type: Star/Delta  Hall Effect angle: 120 degree electric angle
Nuber of the phase: 3-PhaseShaft runout: 0.025mm
Insulation class: Class BIp class: Ip40
Dielectric Strength: 500VDC for one minite Insulation resistance: 100MΩmin 500VDC

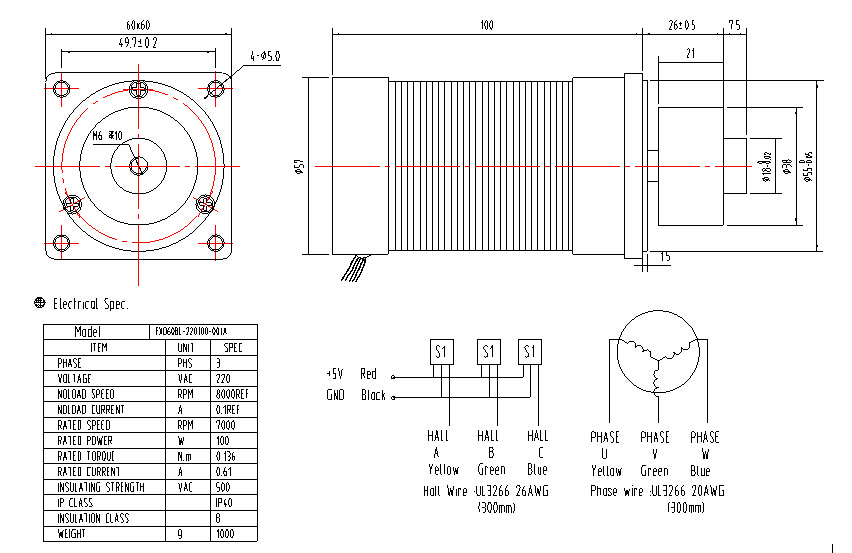

Electric Connection and Dimensions diagram:





Electrical specification:
Model

voltageNo load speed
Rated
speed
Rated
 torque
Rated
power
Rated currentMassBody length
VACrpmrpmN.mwAgmm
FXD60BL-220100-001A220800070000.1361000.611000100


Note: If you want different specification,we can product brushless dc motor as your special requirements.Our company contact imformation is as below:


Changzhou fuxianda Electromechanical Co., Ltd is established in November 2011. Our company is a factory with products Brushless DC motors, Hybrid stepper motors, gearmotors and matched drivers.

Changzhou fuxianda Electromechanical Co., Ltd also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motor, PM synchronous motor and Brush DC motor. We export our motors to more than 10 countries such as United States, France Italy, South Africa and Russia.

The Fuxianda product line is sold to major manufacturing companies for industry for automation, medical and health care equipment, printer machines, packing devices, information technology, household appliance products, and automobile.

We have an engineering team with many years of experience in application engineering, design engineering with the latest advances equipment. Our engineering staff provides the finest quality product with service after the product is delivered to our customers.

The possession of many excellent mechanical-electronical engineers and marketing personnel make our company skillful at providing customers with the plan of products integration.

Most of our products are CE approved. Our company adheres to principles of "Providing green products" and all of our products are RoHS compliant.

As a global supplier, Changzhou fuxianda electromechanical Co., Ltd scrupulously follows the guideline of international commercial rules and practices. We have achieved our reputation of cooperation with our customers over the years. Our Goal is to "Win the market with quality and service" which is the common voice of every Changzhou fuxianda Motor team member.

Good quality, reasonable price, on time delivery, efficient service is our pursuit. We are looking forward to cooperating with more friends in the future.
