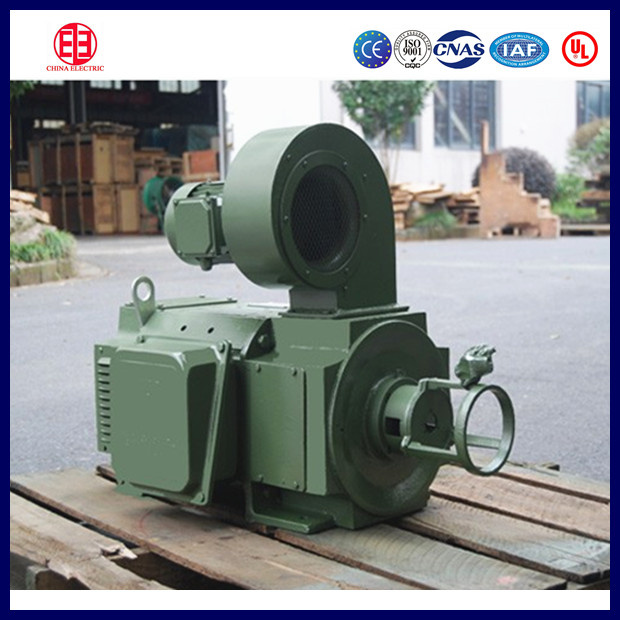

Brushless Electric DC Motor for Sale

Name: Brushless Electric DC Motor for Sale
Brand: all-electronics-online.com
SKU: 775395165
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Z, Z4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling:	IC06, IC17, IC37, IC86W
Protection Rating:	IP21s, IP23, IP44, IP54
Voltage:	220V~440V
Duty:	S1
Insulation Class:	F,H
Power:	1.5~600kw
Mounting:	Im B3,Im B35,Im V1
Bearing Brand:	Twb, Hrb, NSK, SKF
Application:	Industrial
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

1.Brief introduction
Z4, Z Series Medium/Large Size DC Motors is newly developed product of our factory. Z4, Z Series Medium Size and Large Size DC Motors is found wide use for prime mover in various, such as mill auxiliary in metallurgical industry, metal cutting machine-tool, paper making, print, textile, printing and dyeing, cement-making, plasticextruding machine, etc.

2.Applications:
(1)Mills
(2)Conveyors
(3)Machine Tools
(4)Mixer
(5)Fans
(6)Crushers
(7)Plastic and others
(8)metallurgical mill
(9)Rubber machinery
(10)Mining machinery
(11)And other large mechanical equipment

3.Technical features
(1)Outputs:1.1kw to 600 kW
(2)Frames: 100 to 450mm (IEC)
(3)Voltages:220 to 440 Vdc
(4) Rate speed:100-3000rpm
(5)Voltage/power/speed/protection/cooling can be customized.
(6) Insulation : F Duty : SI
(7)Protection : IP 54/44/23/21S
(8)Enclosure and cooling : IC86W,IC666,IC06,IC416
(9)Ambient Temp : 0 - 45°C
(10)Frame Size : 110 - 450
(11) Rating & Performance : IEC /34-1

4.Technical parameters(For reference only):

Model	Rated power	Rated speed			Speed with field weaking	Arm. Current	Field power	Arm Circuit Inductance	Field Inductance	Eff.
		160V	400V	440V
	kW	r/min			r/min	A	W	mH	H	%
Z4-100-1	2.2	1490			3000	17.9	315	11.2	22	67.8
	1.5	955			2000	13.3		21.4	13	58.5
	4		2630		4000	12		26	18	78.9
	4			2960	4000	10.7		26	18	80.1
	2		1310		3000	6.6		86	18	68.4
	2.2			1480	3000	6.5		86	18	70.6
	1.4		860		2000	5.1		163	18	60.3
	1.5			990	2000	4.77		163	18	63.2
Z4-112/2-1	3	1540			3000	24	320	7.1	14	69.1
	2.2	975			2000	19.6		14.1	13	62.1
	5.5		2630		4000	16.4		17.9	17	79.9
	5.5			2940	4000	14.7		17.9	17	81.1
	2.8		1340		3000	9.1		59	17	71.2
	3			1500	3000	8.6		59	17	72.8
	1.9		855		2000	6.9		110	13	61.1
	2.2			965	2000	7.1		110	13	63.5
Z4-112/2-2	4	1450			3000	31.3	350	6.2	14	72.6
	3	1070			2000	24.8		10.3	14	66.8
	7		2660		4000	20.4		14	19	82.4
	7.5			2980	4000	19.7		14	19	83.5
	3.7		1320		3000	11.7		48.5	19	74.1
	3.7		1320		3000	11.7				74.1
	4			1500	3000	11.2				76
	2.6		895		2000	9		83	14	65.1
	3			1010	2000	9.1		83	14	67.3
Z4-112/4-1	5.5	1520			3000	42.5	500	3.85	6.8	73
	4	990			2000	33.7		7.7	6.7	64.9
	10		2680		3500	29		9	6.8	82.7
	11			2950	3500	28.8		9	6.8	83.3
	5		1340		1800	15.7		30.5	6.8	74.3
	5.5			1480	1800	15.4		30.5	6.8	75.7
	3.7		855		1100	13		60	6.7	65.2
	4			980	1100	12.2		60	6.7	68.7
Z4-112/4-2	5.5	1090			2000	43.5	570	5.1	7.8	69.5
	13		2740		3600	37		6.4	5.8	84.4
	15			3035	36	38.6		6.4	5.8	85.4
	6.7		1330		1800	20.6		24.1	7.8	76.8
	7.5			1480	1800	20.6		24.1	7.8	78.4
	5		955		1200	16.1		40.5	5.8	71.1
	5.5			1025	1200	15.7		40.5	5.8	71.9
Z4-132-1	18.5		2610		4000	52.2	650	5.3	6.5	85
	18.5			2850	4000	47.1		5.3	6.5	85.9
	10		1330		2100	30.1		18.9	8.9	79.4
	11			1480	2200	29.6		18.9	8.9	80.9
	7		865		1600	22.7		37.5	6.3	71.9
	7.5			975	1600	21.4		37.5	6.3	74.5
Z4-132-2	20		2800		3600	55.4	730	3.65	10	87.8
	22			3090	3600	55.3		3.65	10	88.3
	15		1360		2500	44.5		13.5	7.7	81.2
	15			1510	2500	39.5		13.5	7.7	83.4
	10		905		1400	31.1		26	6	75.6
	11			995	1400	30.5		26	6	77.7
Z4-132-3	27		2720		3600	74.5	800	3.4	21	88.2
	30			3000	3600	75		3.4	21	88.6
	18.5		1390		2100	53.2		9.8	6.6	83.6
	18.5			1540	2200	47.6		9.8	6.6	84.7
	13.5		945		1600	40.5		19.4	6.5	79.4
	15			1050	1600	40.5		19.4	6.5	80.5
Z4-160-11	33		2710		3500	93.4	820	3.15	10	87.4
	37			3000	3500	93.4		3.15	10	88.5
	19.5		1350		3000	58.8		10.4	7.7	80.4
	22			1500	3000	58.8		10.4	7.7	82.6
Z4-160-22	40.5		2710		3500	113	920	2.7	10	88.2
Z4-160-22	45			3000	3500	113		2.7	10	89.1
Z4-160-21	16.5		900		2000	50.5		17.7	6	77.9
Z4-160-21	18.5			1000	2000	50.5		17.7	6	79.4
Z4-160-32	49.5		2710		3500	137	1050	2.07	11	89.1
Z4-160-32	55			3010	3500	137		2.07	11	90.2
Z4-160-31	27		1350		3000	77.8		8.3	10	84.7
	30			1500	3000	77.8		8.3	10	85.7
	19.5		900		2000	59.1		15.2	6.3	79.1
	22			1000	2000	59.1		15.2	6.3	81.7
Z4-180-11	33		1350		3000	95.4	1200	5.8	7.1	84.7
	37			1500	3000	95.4		5.8	7.1	86.5
	16.5		670		1900	51.4		17.6	5.6	75.5
	18.5			750	1900	51.4		17.6	5.6	78.1
	13		540		1400	42.4		25	5.6	73
	15			600	1400	42.4		25	5.6	74.1
Z4-180-22	67		2710		3400	185	1400	1.16	6.9	89.5
Z4-180-22	75			3000	3400	185		1.16	6.9	90.7
Z4-180-21	40.5		1350		2800	115		4.65	6.6	85.8
	45			1500	2800	115		4.65	6.6	87
	27		900		2000	79		9.3	7.3	82.2
	30			1000	2000	79		9.3	7.3	83.7
	19.5		670		1400	61		15.7	7.1	77.3
	22			750	1400	61		15.7	7.1	79.7
	16.5		540		1600	52		21.9	5	73.8
	18.5			600	1600	52		21.9	5	76.8
Z4-180-31	33		900		2000	97	1500	7.7	6.6	82.8
	37			1000	2000	97		7.7	6.6	83.6
	19.5		540		1250	62		19	6.6	74.8
	22			600	1250	62		19	6.6	76.6
Z4-180-42	81		2710		3200	221	1700	1.16	12	91
Z4-180-42	90			3000	3200	221		1.16	12	91.3
Z4-180-41	50		1350		3000	139		3.2	5.7	87.5
	55			1500	3000	139		3.2	5.7	87.7
	27		670		2000	80		10.4	6.3	80.4
	30			750	2000	80		10.4	6.3	81.1
Z4-200-12	99		2710		3000	271	1400	0.83	7.62	90.2
Z4-200-12	110			3000	3000	271		0.83	7.62	91.6
Z4-200-11	40.5		900		2000	118		8.4	7.01	83.4
	45			1000	2000	118		8.4	7.01	85.5
	33		670		1600	99		10.6	7.77	80.2
	37			750	1600	99		10.6	7.77	82.9
	19.5		450		1000	64		21.9	7.3	72.2
	22			500	1000	64		21.9	7.3	77.4
Z4-200-21	67		1350		3000	188	1500	2.8	6.78	88.7
	75			1500	3000	188		2.8	6.78	89.6
	27		540		1000	82		14	9.64	78.8
	30			600	1000	82		14	9.64	80.4
Z4-200-32	119		2710		3200	322	1750	0.79	10.9	91.7
Z4-200-32	132			3000	3200	322		0.79	10.9	92.4
Z4-200-31	81		1350		2800	224		2.6	5.61	88.7
	90			1500	2800	224		2.6	5.61	90
	49.5		900		2000	141		4.8	8.54	85.6
	55			1000	2000	141		4.8	8.54	87.1
	40.5		670		1400	119		8.5	8.35	82.5
	45			750	1400	119		8.5	8.35	84.1
	33		540		1200	101		12.2	8.42	79.6
	37			600	1200	101		12.2	8.42	82
	27		450		750	84		17.1	8.4	77.5
	30			500	750	84		17.1	8.4	79.5
Z4-225-11	99		1360		3000	276	2300	2.1	4.45	87.9
	110			1500	3000	276		2.1	4.45	89.4
	67		900		2000	193		4.9	4.28	84.4
	75			1000	2000	193		4.9	4.28	86.5
	49		680		1300	146		8.7	5.77	81.2
	55			750	1300	146		8.7	5.77	84
	40		540		1200	123		9.5	6.38	78.2
	45			600	1200	123		9.5	6.38	80.8
	33		450		1000	103		15.2	6.1	76.5
	37			500	1000	103		15.2	6.1	78.8
Z4-225-21	49		540		1000	148	2470	9.5	4.14	79.3
	55			600	1000	148		9.5	4.14	82.4
	40		450		1000	125		13.7	5.41	76.6
	45			500	1000	125		13.7	5.41	78.9
Z4-225-31	119		1360		2400	327	2580	1.5	5.33	89.3
	132			1500	2400	327		1.5	5.33	90.5
	81		900		2000	227		3.4	5.3	86.9
	90			1000	2000	227		3.4	5.3	88
	67		680		2250	197		5.1	5.44	82.5
	75			750	2250	197		5.1	5.44	85.1
Z4-250-12	144		1360		2100	399	2500	1.3	4.29	88.8
Z4-250-12	160			1500	2100	399		1.3	4.29	89.9
Z4-250-11	99		900		2000	381		2.4	4.55	86.2
Z4-250-11	110			1000	2000	381		2.4	4.55	88.1
Z4-250-21	167		1360		2200	459	2750	0.91	4.28	89.8
	185			1500	2200	459		0.91	4.28	90.5
	81		680		2250	234		3.9	5.41	83.2
	90			750	2250	234		3.9	5.41	85.2
Z4-250-31	180		1360		2400	493	2850	0.87	5.32	90.4
	200			1500	2400	493		0.87	5.32	91.5
	200			1500						91.5
	119		900		2000	334		1.7	5.46	87.4
	132			1000	2000	334		1.7	5.46	89.1
	132			1000						89.1
	67		540		2000	204		4	4	80.8
	75			600	2000	204		4	4	84.6
	75			600						84.6
	49		450		1500	152		7.3	5.1	78.5
	55			500	1500	152		7.3	5.1	82.4
	55			500						82.4
Z4-250-41	198		1360		2400	539	3000	0.93	6.19	91
Z4-250-41	220			1500	2400	539		0.93	6.19	91.7
Z4-250-42	144		900		2000	401		1.9	4.53	88
Z4-250-42	160			1000	2000	401		1.9	4.53	89.2
Z4-250-41	99		680		1900	283		2.6	5.3	85.8
	110			750	1900	283		2.6	5.3	87.4
	81		540		1600	236		4.7	6.36	83.4
	90			600	1600	236		4.7	6.36	85
	67		450		1500	201		5.1	4.97	80
	75			500	1500	201		5.1	4.97	83.4
Z4-280-11	226		1355		2000	614	3100	0.69	4.58	90.9
Z4-280-11	250			1500	2000	614	3100	0.69	4.58	91.6
Z4-280-22	253		1355		1800	684	3500	0.77	5.3	91.5
Z4-280-22	280			1500	1800	684		0.77	5.3	92.1
Z4-280-21	180		900		2000	498		1.2	4.46	89.1
	200			1000	2000	498				90.1
	119		675		1600	333		2.3	4.37	87.1
	132			750	1600	333				88.6
	99		540		1500	281		3.1	4.57	84.7
	110			600	1500	281				86
Z4-280-32	284		1360		1800	768	3600	0.59	6.94	91.7
Z4-280-32	315			1500	1800	768				92.6
Z4-280-31	198		900		2000	545		1.1	5.54	89.7
Z4-280-31	220			1000	2000	545				90.6
Z4-280-32	144		675		1700	402		2	5.47	87.8
Z4-280-32	160			750	1700	402				89.1
Z4-280-31	118		540		1000	339		2.6	5.77	85.4
	132			600	1000	339				86.8
	80		450		1400	234		5.3	9.03	84.1
	90			500	1400	234				85.4
Z4-280-42	225		900		1800	616	4000	0.96	5.29	90.2
Z4-280-42	250			1000	1800	616				91.1
Z4-280-41	166		675		1900	464		1.7	5.19	88.1
	185			750	1900	464				89.4
	98		450		1000	282		3.7	6.86	85.1
	110			500	1000	282				86.9
Z4-315-12	321		1360		1800	865	3850	0.39	8.64	92.2
	355			1500	1800	865		0.39	8.64	92.8
	253		900		1600	690		0.46	5.06	90.4
	280			1000	1600	690		0.46	5.06	91.6
	180		680		1900	500		0.83	4.97	88.4
	200			750	1900	500		0.83	4.97	89.4
Z4-315-11	144		540		1900	409		1.3	7.6	86.4
	160			600	1900	409		1.3	7.6	87.4
	118		450		1600	344		2.3	9.43	84.4
	132			500	1600	344		2.3	9.43	86.3
	98		360		1200	294		2.9	9.96	81.7
	110			400	1200	294		2.9	9.96	84.3
Z4-315-22	284		900		1600	772	4350	0.49	5.91	91
	315			1000	1600	772		0.49	5.91	91.5
	225		680		1600	624		0.74	18.8	88.7
	250			750	1600	624		0.74	18.8	89.6
Z4-315-21	166		540		1600	468		1.2	25	87.2
	185			600	1600	468		1.2	25	88.5
	143		450		1500	413		1.5	19	84.7
	160			500	1500	413		1.5	19	86
Z4-315-32	320		900		1600	867	4650	0.39	23.1	91
	355			1000				0.39	23.1	92
	252		680		1600	698		0.82	21.5	89.1
	280			750				0.82	21.5	89.8
	180		540		1500	501		0.95	31.6	88.2
	200			600				0.95	31.6	89.4
Z4-315-31	118		360		1200	344		2.1	23.3	83.2
Z4-315-31	132			400				2.1	23.3	85.3
Z4-315-42	361		900		1400	971	5200	0.33	29	92.1
	400			1000				0.33	29	92.7
	284		680		1600	778		0.67	20.8	90
	315			750				0.67	20.8	90.7
	225		540		1600	626		0.87	21.9	88.3
	250			600				0.87	21.9	89
Z4-315-41	166		450		1500	468		1.4	37.4	87.3
	185			500				1.4	37.4	88.3
	143		360		1200	416		1.8	22.2	84
	160			400				1.8	22.2	85.3
Z4-355-12	406		900		1500	1094	4700	0.36	37.6	91.8
	450			1000	1500	1094		0.36	37.6	92.8
	321		680		1500	877		0.59	28.1	90.4
	355			750	1500	877		0.59	28.1	91.2
Z4-355-11	253		540		1500	697		0.91	22	89.2
	280			600	1500	697		0.91	22	90.2
	180		450		1500	506		1.5	8.91	87.6
	200			500	1500	506		1.5	8.91	88.9
	166		360		1200	478		1.8	22.4	84.9
	185			400	1200	478		1.8	22.4	85.9
Z4-355-22	361		680		1600	978	5600	0.44	15.6	90.8
	400			750	1600	978		0.44	15.6	91.7
	284		540		1500	783		0.81	34.7	89.5
	315			600	1500	783		0.81	34.7	90.5
	225		450		1600	624		1	20.5	88.4
	250			500	1600	624		1	20.5	89.5
Z4-355-21	180		360		1200	511		1.6	35.5	86.3
Z4-355-21	200			400	1200	511		1.6	35.5	87.5
Z4-355-32	406		680		1100	1098	6000	0.39	19	91.3
	450			750	1100	1098		0.39	19	92.1
	320		540		1600	877		0.7	24.3	89.9
	355			600	1600	877		0.7	24.3	91
	284		450		1500	789		0.91	18.5	88.3
	315			500	1500	789		0.91	18.5	89.5
Z4-355-31	197		360		1200	559		1.3	34.6	86.6
Z4-355-31	220			400	1200	559		1.3	34.6	88.4
Z4-355-42	361		540		1300	985	6500	0.64	29.6	90.5
	400			600	1300	985		0.64	29.6	91.2
	320		450		1200	882		0.76	17.7	88.9
	355			500	1200	882		0.76	17.7	89.2
	225		360		1200	627		1.2	17.7	87.5
	250			400	1200	627		1.2	17.7	88.8
Z4-400-22	435		680		1400	1175	5700	0.33	7.85	90.8
Z4-400-22	480			750	1400	1175		0.33	7.85	92
Z4-400-21	235		360		1200	675		1	7.3	84.8
	260			400	1200	675		1	7.3	86.3
	180		270		900	537		1.6	7.44	81.8
	200			300	900	537		1.6	7.44	83.1
Z4-400-32	500		680		1400	1340	6400	0.3	9.57	91.2
	550			750	1400	1340		0.3	9.57	92.5
	400		540		1300	1083		0.35	4.51	89.9
	440			600	1300	1083		0.35	4.51	91.1
	344		450		1300	952		0.58	6	88.1
	380			500	1300	952		0.58	6	89.5
Z4-400-31	270		360		1200	768		0.82	6.11	86
	300			400	1200	768		0.82	6.11	87.5
	208		270		900	611		1.5	5.89	82.8
	230			300	900	611		1.5	5.89	84
Z4-400-42	435		540		1300	1175	7100	0.32	5.54	90.8
	480			600	1300	1175		0.32	5.54	92
	390		450		1400	1070		0.47	6.86	88.6
	430			500	1400	1070		0.47	6.86	90
Z4-400-41	316		360		1200	880		0.73	5.41	87.7
	350			400	1200	880		0.73	5.41	89
	235		270		900	676		1.2	5.38	84
	260			300	900	676		1.2	5.38	85.4
Z4-450-22	472		540		1200	1286	6500	0.29	10.2	90.8
	520			600	1200	1286		0.29	10.2	92.1
	408		450		1400	1114		0.41	7.99	90
	450			500	1400	1114		0.41	7.99	91.3
	362		360		1200	1010		0.61	5.79	88.1
	400			400	1200	1010		0.61	5.79	89.4
Z4-450-21	253		270		900	720		1	5.82	85.8
Z4-450-21	280			300	900	720		1	5.82	87.1
Z4-450-32	500		540		1200	1358	7100	0.39	19.6	90.8
	550			600	1200	1358		0.39	19.6	92
	453		450		1300	1228		0.32	7.36	90
	500			500	1300	1228		0.32	7.36	91.4
	408		360		1200	1130		0.53	7.17	88.5
	450			400	1200	1130		0.53	7.17	89.7
	309		270		900	875		0.83	4.8	85.9
	340			300	900	875		0.83	4.8	87.1
Z4-450-31	200		180		600	595		1.9	9.09	81.3
Z4-450-31	220			200	600	595		1.9	9.09	82.6

5.Packaging:Plywood cases

China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.

China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.

China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.

Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.

Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
