Brushless Torque Motor for Winding Motor of Automatic Winder (FXD57BL-36200-001)

Brushless Torque Motor for Winding Motor of Automatic Winder (FXD57BL-36200-001)
Price: US $ 26-44/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: FXD57BL-36200-001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed Of The Motor: 300-4000 Rpm
Power Of The Motor: 1-200 Watts
Torque Of The Motor: 0.48 N.M
Application: Power Tools
Operating Speed: Adjust Speed
Excitation Mode: Compound
Structure And Working Principle: Brushless
Type: Brushless DC Motor
Certification: CE RoHS
Brand: Fxd Motors

Product Description

Model:FXD  57  BL 36  200  001
             A     B   C    D    E     F
Note:  A   Fuxianda
       B   Motor dia or square size
       C   Brushless  motor
       D   Rated voltage
       E   Rated power
       F    No.

Product descripion

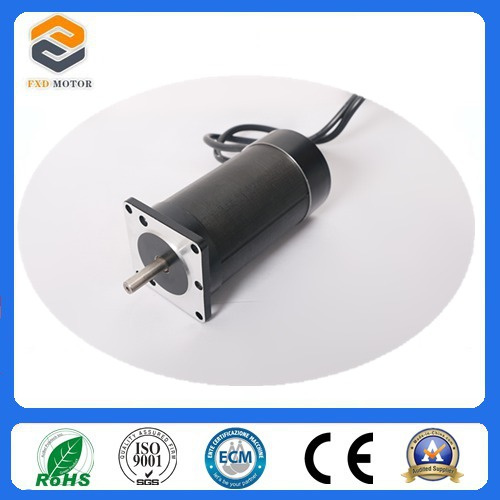

57mm size(NEMA 23) square brushless dc  motor is used very efficiency on different electromechanical device.
Our FXD57BL-36200-001  Series bldc motor have lots of   advantages as below:
1.Nema 23 Brushless dc motor
2.Model Number: FXD57BL-36200-001
3.Phase: 3 Phase
4.Lead Wire(No.): 8 wires
5.Shape:  square
6.Motor OD: 57mm(2.24inch)
7.Speed:0-3000 rpm adjusted
8.This motors' ball bearing is NMB brand and the hall sensor is Honeywll brand.And all this high quality parts guarantee the long life of the BLDC motor.The life time can catch up with 20000 hours.
9.Applications: Use for Robots bldc motor, electronic automatic equipment bldc motor, medical instrument BLDC motor, advertisementing instrument bldc motor, textile machine motor,audio equipment bldc motor, advertising lamp box. Cnc brushless dc motor,Bump motor and fan motor by solar.

Gemeral info.
Model No: FXD57BL-36200-001 Type:  Brushless dc motor
Widing type: Star/Delta  Hall Effect angle: 120 degree electric angle
Nuber of the phase: 3-PhaseShaft runout: 0.025mm
Insulation class: Class BIp class: Ip40
Dielectric Strength: 500VDC for one minite Insulation resistance: 100MΩmin 500VDC

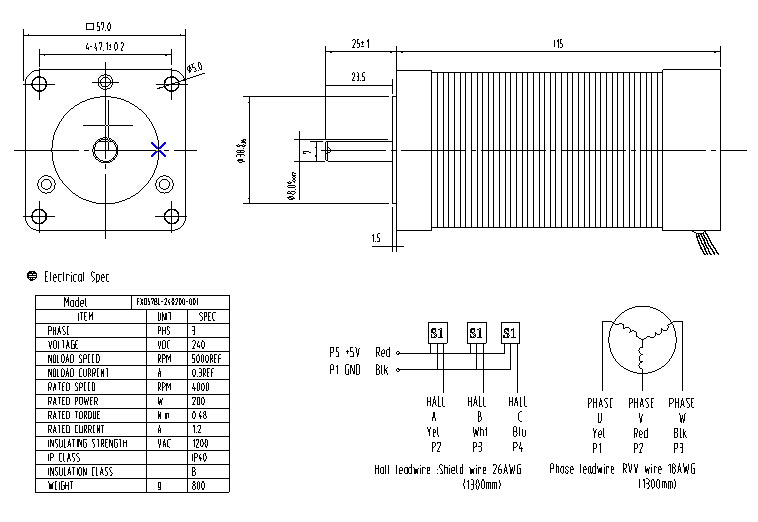

Electric Connection and Dimensions diagram


Electrical specification
Model

voltage
Rated
speed
Rated
 torque
Rated
power
MassBody length
VDCrpmN.mwgmm
FXD57BL-36200-0013640000.482001000115


Note: If you want different specification,we can product brushless dc motor as your special requirements.
