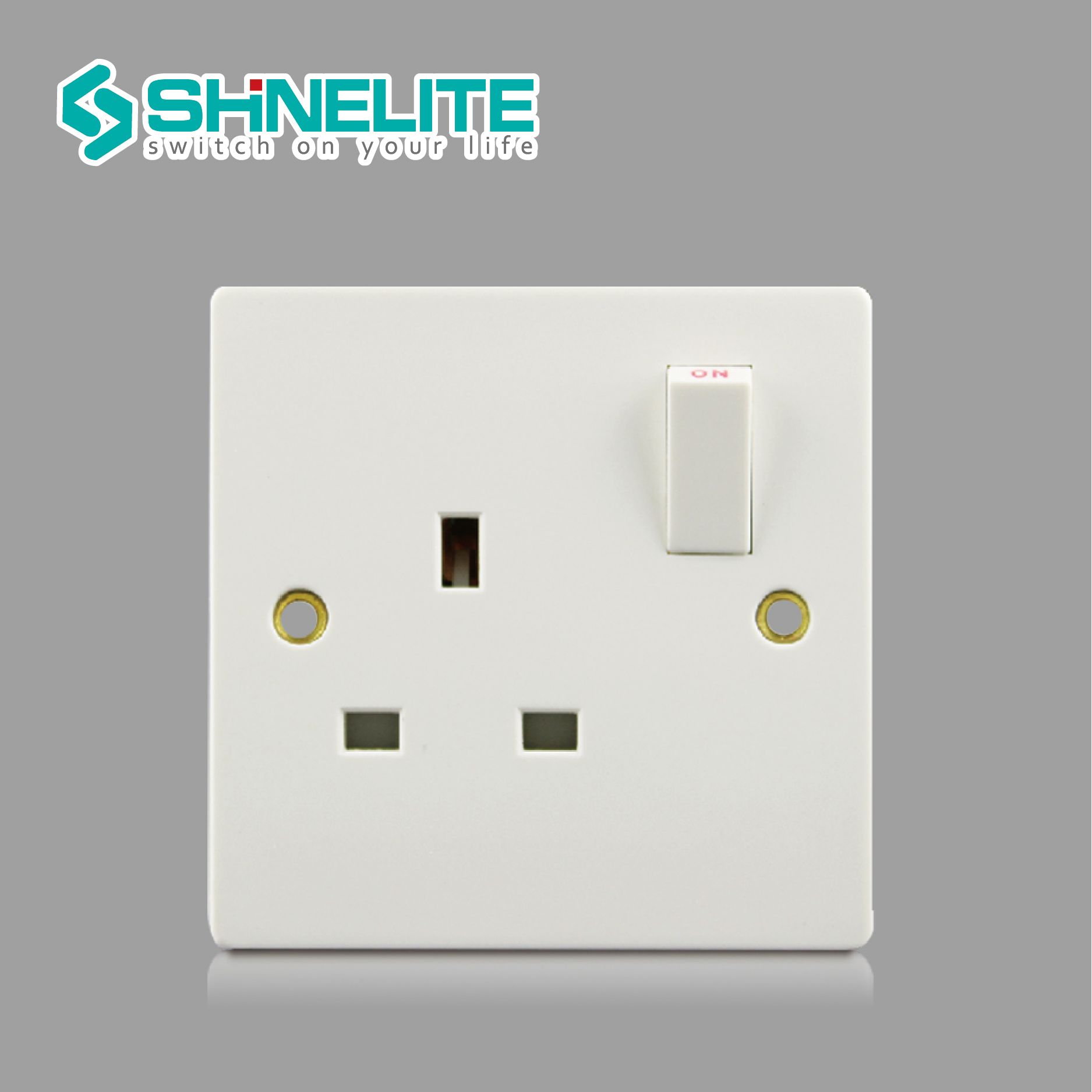

BS 1363 13A Socket 1 Gang Switched Socket Outlet

Name: BS 1363 13A Socket 1 Gang Switched Socket Outlet
Brand: all-electronics-online.com
SKU: 839098585
Availability: InStock
Rating: 4.5 (20 reviews)

Price:	US $ 0.69-0.85/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	W405
Material:	Bakelite Panel and Copper Silver Alloy Inside
Color:	White
Life:	10years
Main Market:	Middle East and Africa Market
Product Name:	British Standard Wall Switch Socket
Service:	OEM Is Accepted
MOQ:	1000 PCS
Sample:	Sample Could Be Offered
Payment Term:	50% Deposit, 50% Balance Before Shipment
Aim:	Make Electric More Safety,Simple and Green
Grounding:	Standard Grounding
Type:	With Switch
Application:	Home
Rated Current:	13A
Brand:	Shinelite

Product Description

Product characteristic:
Satin Chrome 13A 1 Gang BS Wall Switch Socket
the switch contacts are made of high quality silver alloy material, which have a good performance against electric arc and melt weld. the on-off operations exceed40000 times.
the socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.

outline size:	86X146mm
installation size:	120
material:	metal
copper:	qsn5.6-0.1 h62 hpb59

Switch specification

lifetime	≥40000
heat-resistant	100 • c / 1h
insulation resistance	≥5m ω
damp resistance	48h > 5m ω
temperature raise	≤ 45K
earthing provision	≤0.05m ω

Socket specification

lifetime	≥5000
heat-resistant	100 • c / 1h
insulation resistance	≥5m ω
damp resistance	48h > 5m ω
temperature raise	≤ 45K
earthing provision	≤0.05m ω
electric strength	2000 V ~1 min

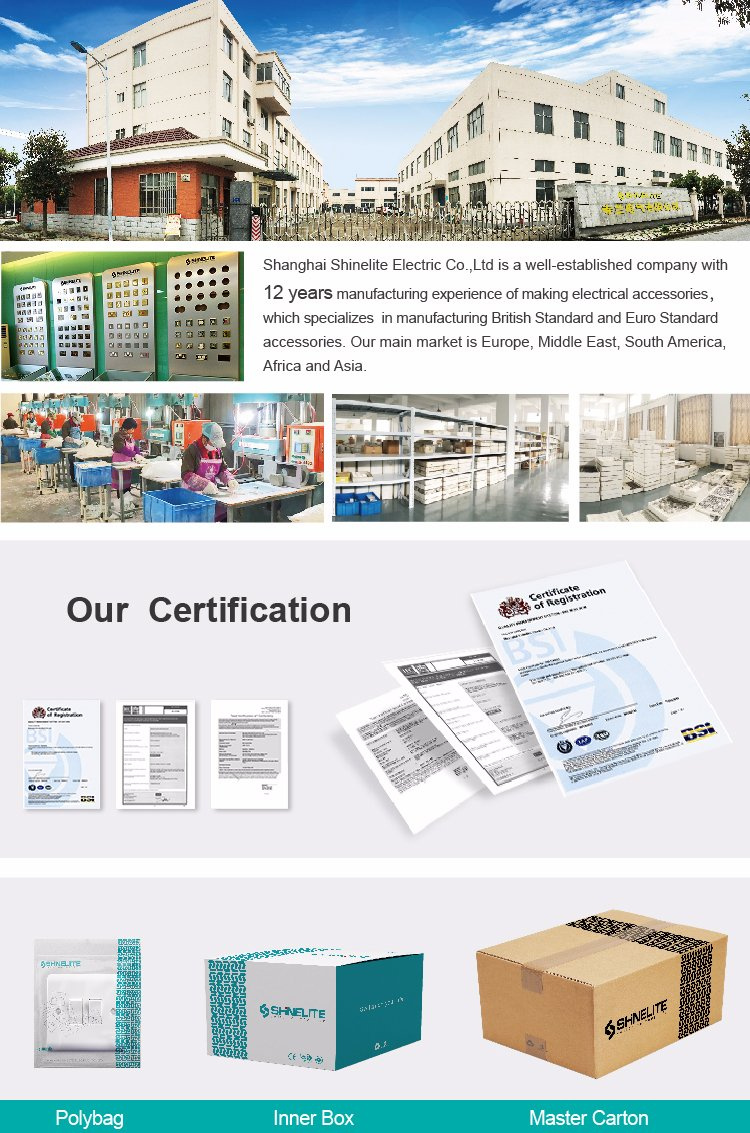

Shanghai Shinelite Electric Co., Ltd is a well-established company with 12 years manufacturing experience, which specializes in manufacturing British Standard wiring accessories.

Our main market is Europe, Middle East, South America, Africa and Asia.

Our products contain more than 15 series and 1000 items, including wall switch, socket, extension socket, lampholder, plug, junction box, ceiling rose, metal box and other electrical accessories.

Our factory are qualified with ISO9001 and our products are CE CB SASO approval. More about us pls refers to our website www.shinelite.cc
