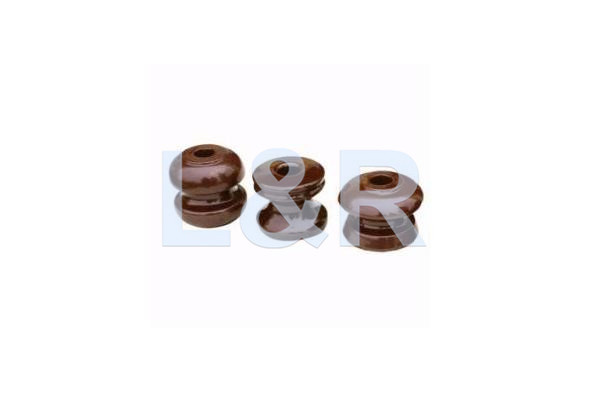

BS ED-2b Porcelain Shackle Insulator for Low Voltage

Name: BS ED-2b Porcelain Shackle Insulator for Low Voltage
Brand: all-electronics-online.com
SKU: 766909445
Availability: InStock
Rating: 4.6 (66 reviews)

Price:	US $ 1-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Can Be Ordered
Brand Name:	L&R or as Per Clients' Requirements
Application:	Low-voltage
Material:	Porcelain
Structure:	Shackle Insulator

Product Description

Basic Info.
Origin: Yueqing, Wenzhou, Zhejiang, China
Brand Name: as customer's requirement
Packaging: standard package or cilent's requirment
Application:Low-voltage
Material:Porcelain
Structure:Shackle Insulator
Size of Bearing Capacity:13kn
Certification:CE, ISO9001
Color:Brown, Gray or White
Spool:Stay
Export Markets:Global

Product Description
In comply with ANSI, IEC, BS, AS etc standard;
* Brown or gray glazed;
* Advise model No or supply drawing when enquiry;

Fig No.			2	1	1	3	3	3

CLASS ANSI			ED-2	ED-2(B)	ED-2(B)1	1617	1618-1	1618-2

Main Dimensions(mm)		H	80	76	76	65	75	75

		D	80	89	89	76	89	89

		d	50	48	48	46	55	55

		d1	22	21	17.5	17.6	17	17

		R	6	10	10	9	10	13

Mechanical Failing Load(KN)			13	12	12	9	10	13

Minimum Flash over Voltage	Power Frequency	Dry(kv)	25	25	25	20	20	25

		Wet(kv)	15	12	12	9	9	12

Weight(kg)			0.5	0.5	0.5	0.4	--

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The best price
5. Strict quality control
6. We wormly welcome you come to visit our factory and seek further cooperation

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
