Bs Pin Type Porcelain Insulator (P-11-Y)

Name: Bs Pin Type Porcelain Insulator (P-11-Y)
Brand: all-electronics-online.com
SKU: 712037125
Availability: InStock
Rating: 4.8 (92 reviews)

Price:	US $ 1.3-6.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	P-11-Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Brown
Rated Voltage:	11kv
Service:	OEM, ODM
Sample:	Available
Delivery:	as Required
Structure:	Pin Insulator
Material:	Porcelain
Type:	A Type Insulator
Application:	High-voltage

Product Description

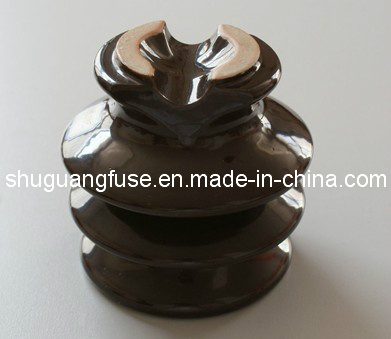

High voltage porcelain pin type insulator P-11-Y
Item No: P-11-Y

1. Material: Porcelain

2. Pin type insulators are used for line transmission

3. Main Dimensions: Height 133mm; Diameter 140mm

4. Creepage distance: 240mm

5. Power-frequency: Dry 75kV; Wet 45kV

6.1 minuter power-frequency withstand voltage: Dry 65kV; Wet 40kV

7. Power-frequency puncture voltage: 135kV

8. Radio-influence voltage data:
Test voltage to ground: 15kV
Maximum RIV at 1000kHz: 8000UV

9. Cantilever failing load: 11kN

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
