| Prod Model: |
BV/BLV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electrical Wire 2.5sq.Mm: |
Max. DC Resistance @ 20 Degree 7.41 Ohm/Km |
| Electrical Wire 4sq.Mm: |
Max. DC Resistance @ 20 Degree 4.61 Ohm/Km |
| Electrical Wire 6sq.Mm: |
Max. DC Resistance @ 20 Degree 3.08 Ohm/Km |
| Type: |
Insulated |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CE |
| Conductor Type: |
Solid or Stranded |
| Brand: |
Jytop |
Product Description

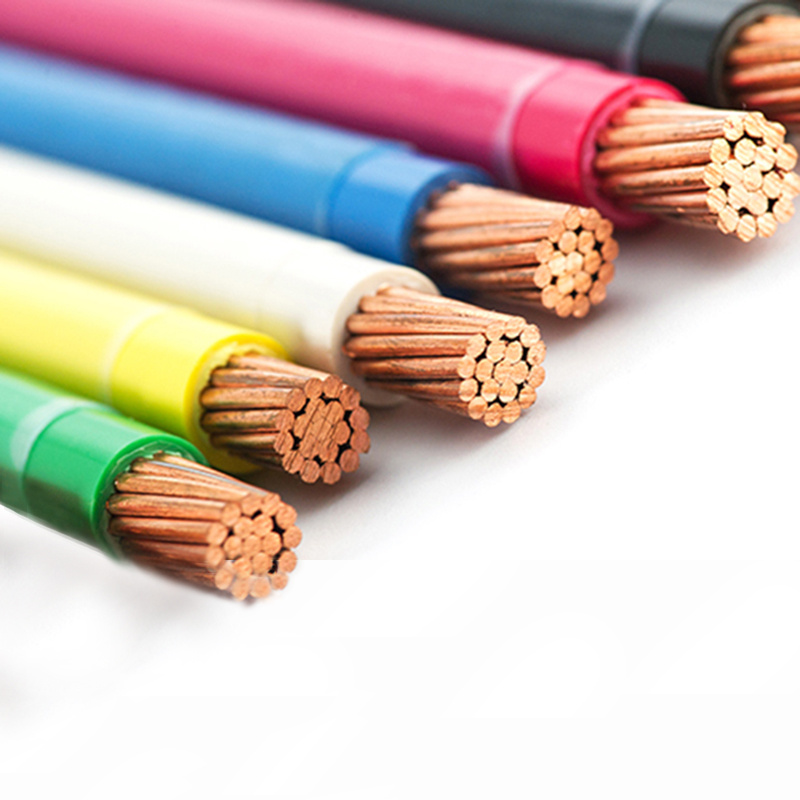

BS6004 standard copper PVC Insulated Electrical building Wire 1. Flexible copper conductor
2. PVC insulation
Construction:
PVC insulated wires belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places, it is widely used as connectors of drive, lighting, electric equipments, instrument and telecommunication equipments with rated coltage 450/750V or below, part of the plastic wires are used at the equipment with AC rated voltage 300/300v or below.
Standards:
The products adopt GB5023.1~7-1997 (450/750V or below PVC insulated electric wires), JB 8734.1~5-1998 (450/750V or under PVC insulated cables, electric wires and flexible wires) and Q/ZEL 02-2002 ( piastic insulated electric wires and cables ) GB 5023.1~7-1997is identical to IEC227, and type aresame as the stipulation of IEC, technical specification is just the same, and more we have extended the range of type to fit for the requirement of consumers.JB8734.1~5-1998 and Q/ZEL 02-2002 is the complementary content of GB 5023.1~7-1997, and Q/ZEL 02-2002 is stipulated to meet the requirment of consumers.
Range of our products :
1. 227IEC01/05 standard .BV/BLV type, copper conductor PVC insulated wires / aluminum conductor PVC insulated wires , fized laid indoors , conduits etc, long term working temperature 70 selsius degree.
2. 227IEC07 Standard, BV-90 type, heat resistant copper conductor PVC insulated wires at 90 selsius degree,mainly be laid at the places of high temperature environment and cab be laid indoors ,conduits.
BVR type , copper conductor PVC insulated flexible wire , be for laying pemanent place where flexible required, long term working temperature 70 selsius degree.
3. 227IEC10 standard, BW type, copper conductor PVC insulated PVC sheathed round wires,
BLW type, aluminum conductor PVC insulated PVC sheathed round wires,
BWB type, Copper conductor PVC insulated PVC sheathed flat wires.
BLWB type, aluminum conductor PVC insulated sheathed flat wires,
The above , mainly be fixed lain, fit for the places with high mechanical protection and moisture place, can be laid in the aire or underground, long term working temperature 70 selsius degree.
4. 227 IEC02RV / 227IEC06RV standard, copper conductor PVC insulated flexible connector,
227IEC42 RVB , copper conductor PVC insulated flat flexible connector .
RVS , copper conductor PVC insulated flexible twisting connector wire.
227IEC 52 RW, 227 IEC 53 RW ,standard, copper conductor PVC insulated PVC sheathed round flexible connector (light and common type ) , mainly used at middle and light style moving electronics, home applicances, power and lighting and the places where flexible required, long term working temperature 70 selsius degree.
227 IEC 05 BV wire :
| Nominal sectional area ,mm² | Number and diameter
of conductor
no. /mm | Nominal thickness of insulation, mm | Max overall diameter
mm | conductor resistance at 20ºCΩ/km | Min insulated resistance at 70ºC MΩ/km | weight KG/KM |
| 0.5 | 1/0.80 | 0.6 | 2.4 | 36.0 | 0.015 | 8.1 |
| 0.75 | 1/0.97 | 0.6 | 2.6 | 24.5 | 0.012 | 10.6 |
| 1 | 1/1.13 | 0.6 | 2.8 | 18.1 | 0.011 | 13.2 |
227 IEC 01 BV/BLV type PVC insulated wire :
| Nominal sectional area mm² | Number and diameter
of conductor
no. /mm | Nominal thickness of insulation, mm | Max overall diameter
mm | conductor resistance at 20ºCΩ/km | Min insulated resistance at 70ºC MΩ/km | weight KG/KM |
| | | | | Cu | Al | | Cu | Al |
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | --- | 0.011 | 19.2 | --- |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | --- | 0.010 | 20.6 | --- |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065. | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2014 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
Type BVR 450/750V copper conductor PVC insulated flexible wire:
| Nominal sectional area mm² | Number and diameter
of conductor
no. /mm | Nominal thickness of insulation, mm | Max overall diameter
mm | conductor resistance at 20ºCΩ/km | Min insulated resistance at 70ºC MΩ/km | weight KG/KM |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.52 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.6 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
| 150 | 259/0.85 | 1.8 | 25.0 | 0.124 | 0.0032 | 1510.0 |
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
