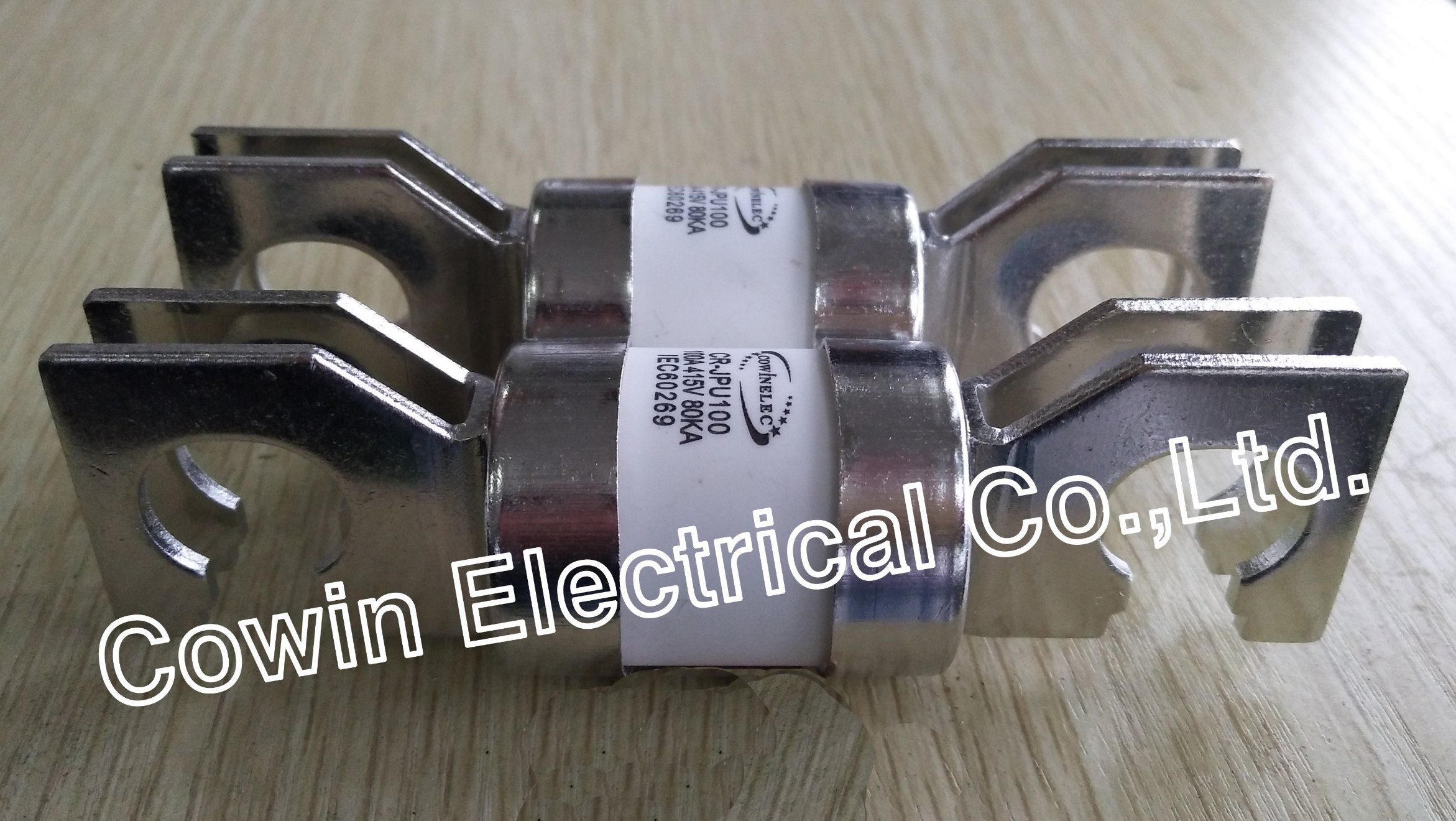

Bs88 Slotted Type Bolt Connected Fuse Links J Fuse

Name: Bs88 Slotted Type Bolt Connected Fuse Links J Fuse
Brand: all-electronics-online.com
SKU: 714077175
Availability: InStock
Rating: 5 (70 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HRC J
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	20A-400A
Fixing Center:	82mm and 92mm
Voltage:	AC 415V
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Low Voltage
Standard:	IEC

Product Description

J type fuse is according with IEC60269 and BS88 Standard, the product has been used for overload and short circuit protection of distributing line. It is rated voltage is AC 415V and rated current up to 630A (AC 50HZ).

Applications: For use by electrical authorities in distribution pillars, open type substation boards, heavy duty cut-outs, and underground connection boxes.
Breaking capacity: 80KA
Fixing Center: 82mm and 92mm

Protection against overload and short-circuit in electric lines (type gG), also available for protection of semiconductor parts and equipment against short-circuit(type aR) and protection of motors(type aM). Rated voltage 415VAC, Rated current up to 630A working frequency 50Hz AC. Rated breaking capacity up to 80KA compliant to BS88 PART 5 and IEC269.

Part No.	Current Rating(A)	Rated Voltage(V ac)	Rated Voltage(V dc)	Fixing Centers (mm)	Breaking capacity
76J20	20	415	-	76	80kA@415Vac
76J25	25
76J32	32
76J40	40
76J50	50
76J63	63
76J80	80
76J100	100
76J125	125
76J160	160
76J200	200
83J20	20	415	-	83	80kA@415Vac
83J25	25
83J32	32
83J40	40
83J50	50
83J63	63
83J80	80
83100	100
83J125	125
83J160	160
83J200	200
83J250	250
83J315	315
83J355	355
83J400	400
92J20	20	415	-	92	80kA@415Vac
92J25	25
92J32	32
92J40	40
92J50	50
92J63	63
92J80	80
92J100	100
92J125	125
92J160	160
92J200	200
92J250	250
92J315	315
92J400	400
