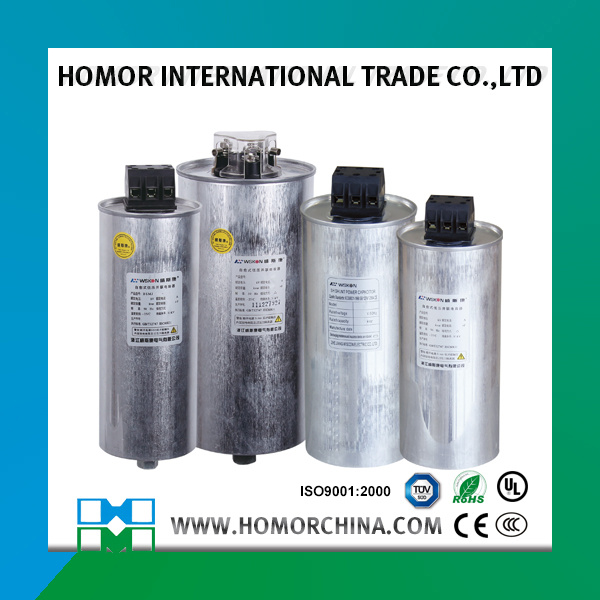

Bsmj Cylindrical Low-Voltage Self-Healing Power Capacitor

Name: Bsmj Cylindrical Low-Voltage Self-Healing Power Capacitor
Brand: all-electronics-online.com
SKU: 725138642
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 6.82-55.78/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BSMJ
Power Capacitor Function:	Reduce Reactive
Type:	Polypropylene Capacitor
Application:	Power
Package Type:	Through Hole
Capacitance:	1-60kvar

Product Description

General Decription:

BSMJ cylindrical low-voltage self-healing power capacitor is mainly used in the power system of 50/60Hz to improve the quality of power grid, enhance the power factor and reduce the line loss.

Featurns:
1- The capacitor is filled with special protective dielectric, which doesn't leak and environmental friendly to avoid the pollution.
2- Excellent self-healing property makes the capacitor self-repair quickly and restart to work in case that part of the dielectric caused by over voltage breaks down.
3- Over-voltage snap can prevent the capacitor from accidents at the end of service life.
4- New, safe and reliable terminal can b connected conveniently which adopts hidden design so as to prevent accidental touch and it also has a unique structure.

Technical Parameter:
Rated voltage:230-900VAC, conventional low pressure 400,440,525,690V
Rated capacity: 3-40KVAR
Capacitance tolerance: the ratio between maximum and minimum value of capacitance which are measured at any two terminals of the three-phase capacitor should be no more than 1.08
Loss angle tangent: Tanδ≤0.2%
Executive standard: GB/T12747-2004; IEC60831

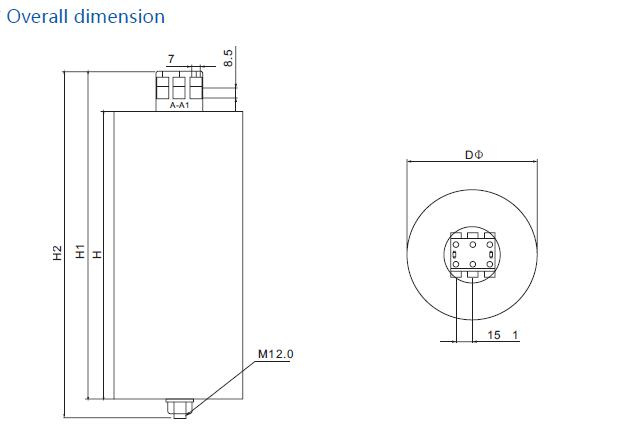

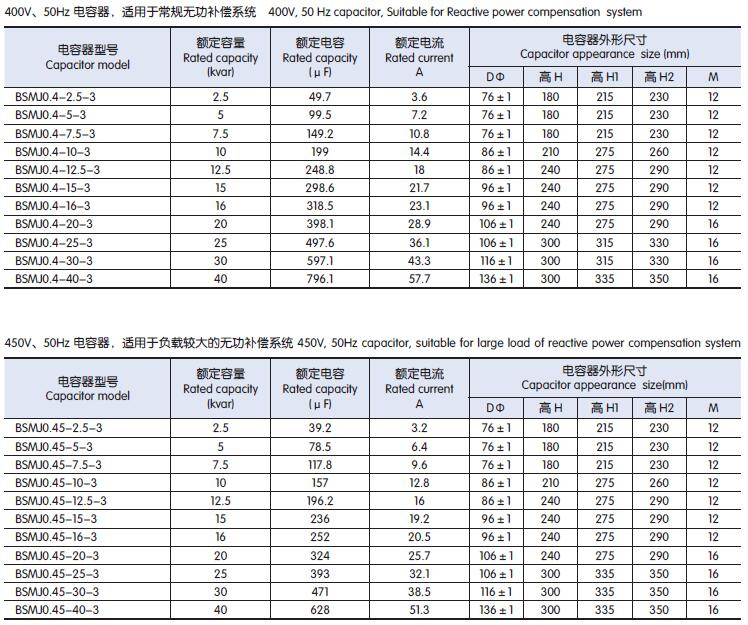

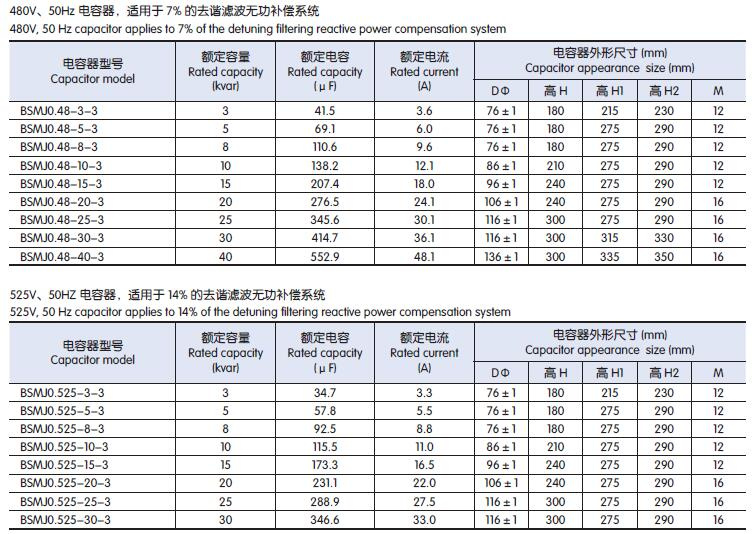

Model and dimension:

HOMOR(hemao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and have gained good reputation in the market.

HOMOR specialize in manufacturing high quality power capacitor like BSMJ/BKMJ power capacitor, CBB60 motor running capacitor, CBB65 motor running capacitor, . To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was Located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.

HOMOR is growing fast through year's great effort, . We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

In strict accordance with GB/T12747-2004, IEC60831-1: 1996 Standard, its main products have gained the CE, CQC, CCC, UL certificate. Our capacitor has sales branches and distributors throughout China, and exports to more than ten countries including the United States, Canada, Brazil, Argentina, Russia, Bangladesh, South Korea, Malaysia and Singapore. Our capacitors are well-received by overseas users and has gained both economic and social benefits.
