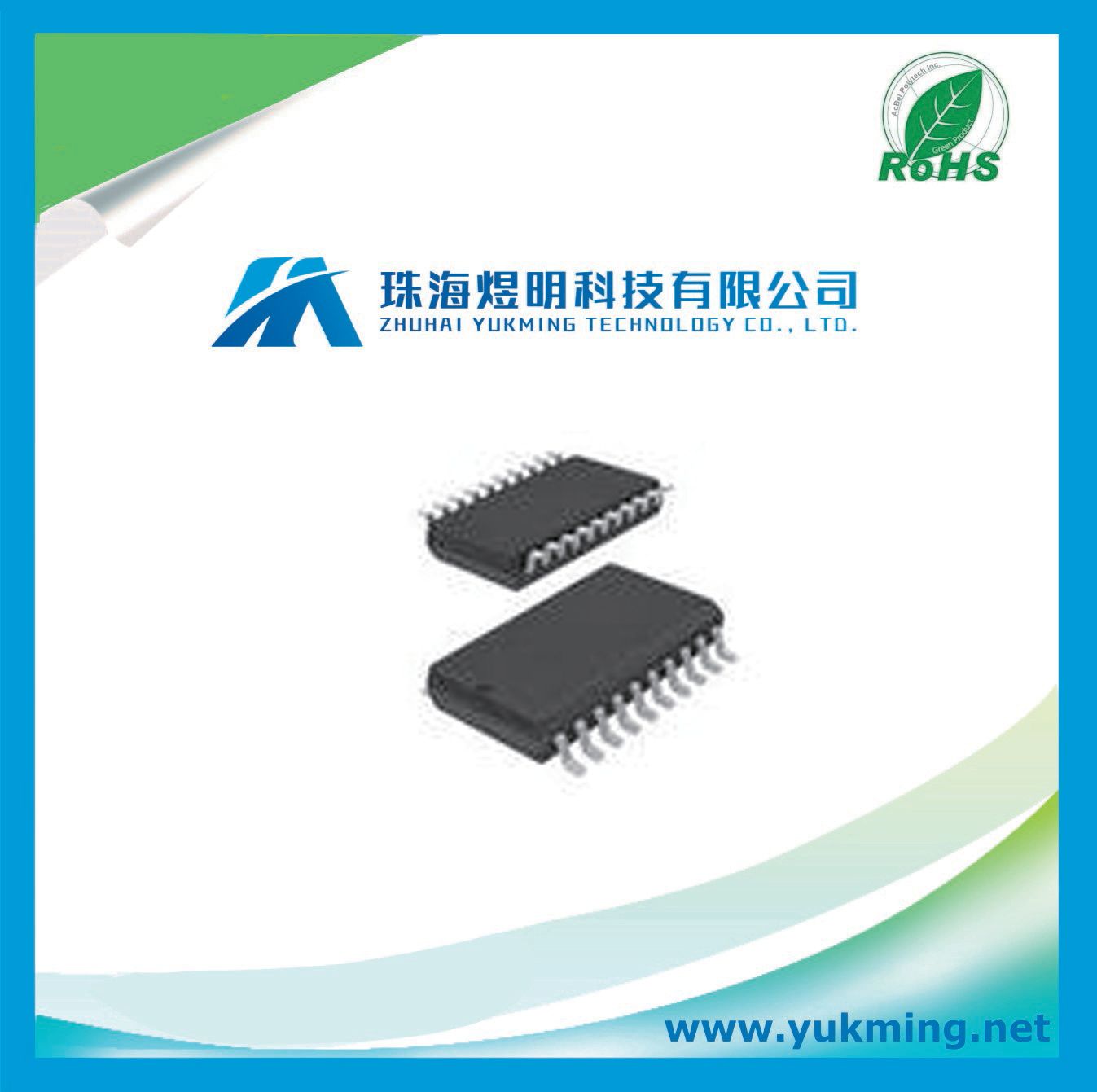

Buffer/Line Driver 8-CH Non-Inverting 3-St CMOS IC 74hc244D Integrated Circuit

Name: Buffer/Line Driver 8-CH Non-Inverting 3-St CMOS IC 74hc244D Integrated Circuit
Brand: all-electronics-online.com
SKU: 801887455
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	US $ 0.1297/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	74HC244D

Product Description

MANUFACTURER
NXP Semiconductors

PRODUCT CATEGORY
Buffer and Line Driver

DESCRIPTION
Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin SO Bulk

Description
The 74HC244; 74HCT244 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). The 74HC244; 74HCT244 has octal non-inverting buffer/line drivers with 3-state outputs.The 3-state outputs are controlled by the output enable inputs 1OE and 2OE. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. The 74HC244; 74HCT244 is identical to the 74HC240; 74HCT240 but has non-inverting outputs.

Features
Octal bus interface
Non-inverting 3-state outputs
Complies with JEDEC standard no. 7A
ESD protection:
HBM EIA/JESD22-A114-C exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
Multiple package options
Specified from −40 °C to +85 °C and from −40 °C to +125 °C

Specifications
EU RoHS Compliant
Logic Family HC
Logic Function Buffer/Line Driver
Number of Elements per Chip 2
Number of Inputs per Chip 8
Number of Outputs per Chip 8
Fabrication Technology CMOS
Polarity Non-Inverting
Output Type 3-State
Absolute Propagation Delay Time (ns) 225
Number of Channels per Chip 8
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Bulk
Minimum Operating Supply Voltage (V) 2
Maximum Operating Supply Voltage (V) 6
Typical Operating Supply Voltage (V) 5
Maximum High Level Output Current (mA) -7.8
Maximum Low Level Output Current (mA) 7.8
Maximum Quiescent Current (uA) 8
Mounting Surface Mount

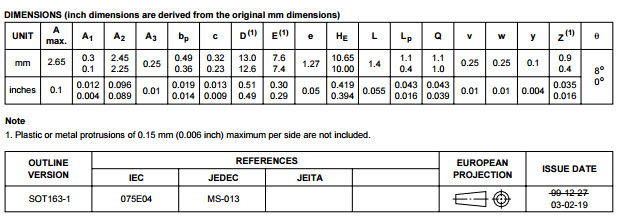

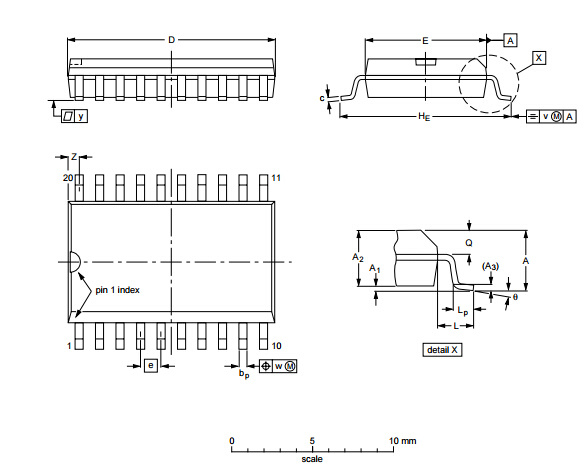

Package Height (mm) 2.45(Max)
Package Length (mm) 13(Max)
Package Width (mm) 7.6(Max)
PCB changed 20
Standard Package Name SOP
Supplier Package SO

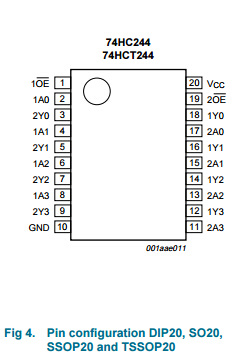

Pin Count 20
Lead Shape Gull-wing
