| Prod Model: |
building and housing h07v-u |
| Color: |
Grey, White, Black, Orange |
| Voltage Rating: |
250/250V |
| Conductor: |
Annealed Copper Conductor to AS/NZS 1125 |
| Insulation: |
V-75 PVC |
| Jacket: |
4V-75 PVC |
| Name: |
Building and Housing H07V-U Single Core Copper Con |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Brand: |
Jiukai or OEM |
Product Description

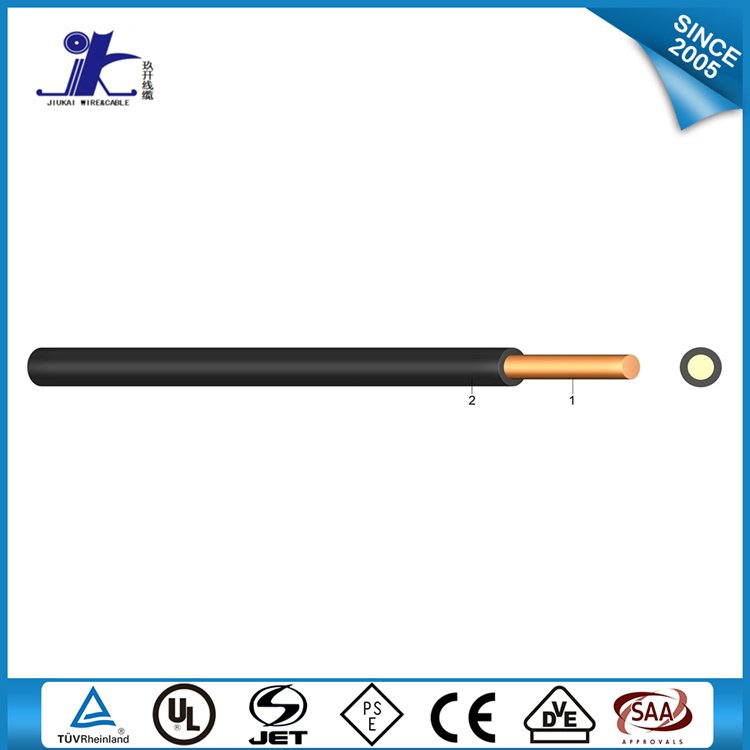

Building and Housing H07V-U single core copper conductor pvc insulated electrical wire
Product Description & ParametersThese cables are suitable for installing in dry applications only. They are use in radios, shavers, desk lamps and small portable equipment or use in office machines, hair dryers etc.and for appliances requiring an earth connection. Also suitable for use with double insulated appliances where the cord is not subject to mechanical stress.
Standard: AS/NZS 3191, AS/NZS 1125
Conductor: Annealed copper conductor to AS/NZS 1125 Maximum operating temperature: 75°C Insulation: V-75 PVC
Colours: 2C Brown, Light Blue 3C Brown, Light Blue, Green/Yellow
Sheath: 4V-75 PVC
Colours: Grey, White, Black, Orange
| Construction | Insulation Thickness | Sheath Thickness | Nominal OD. | Approx. Cable Weight | Curren Carring Capacity |
| n×mm2 | mm | mm | mm | kg/100m | (A) |
| Round |
| 2*0.5 | 0.5 | 0.6 | 5.2 | 3.7 | 3 |
| 3*0.5 | 0.5 | 0.6 | 5.5 | 4.2 |
| 2*0.75 | 0.5 | 0.6 | 5.6 | 4.5 | 7.5 |
| 3*0.75 | 0.5 | 0.6 | 5.9 | 5.4 |
| Parallel Webbed, Flat, Unsheathed |
| 2*0.5 | 0.8 | | 5.2*2.6 | 2.2 | 3 |
| 2*0.75 | 0.8 | | 5.6*2.8 | 2.7 | 7.5 |

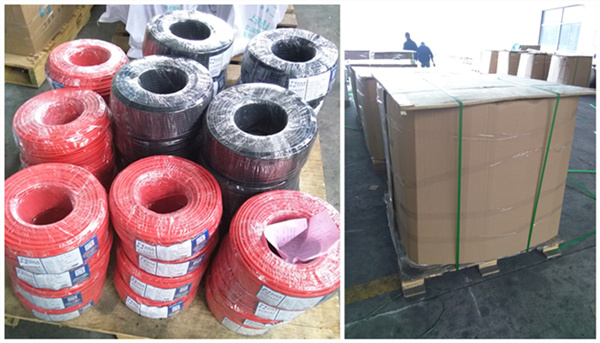

Packaging & ShippingPackaging Details:Delivery Detail:
Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requirement. |
Delivery Detail:
7-15 days |

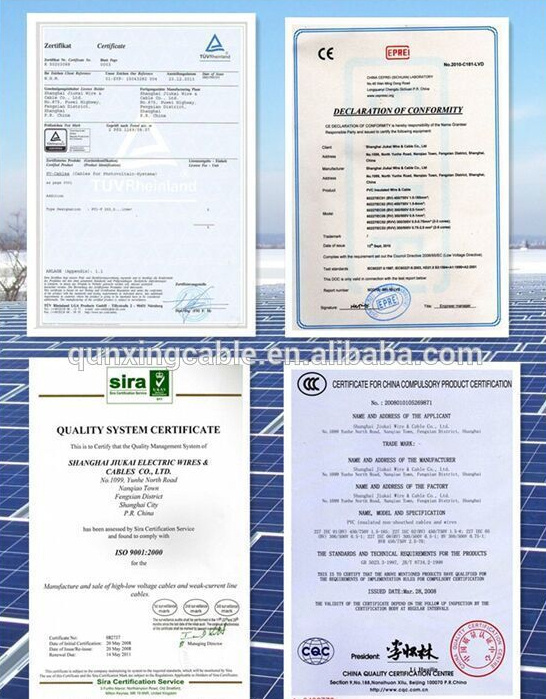

CertificationWe passed UL, CCC, CE, VED etc. UL-E342399
I will give you copy of certification if you need more information.
Related Produce1: Solar Cable
2: Electric Vehicle Charging Cable
3: Elevator Cable
4: Coaxial Cable
Why Choose Us:We are a professional wire and cable manufacturer
Quality control: Our defective products rate is 0.01%
Economically priced, exquisitely made
Adequate supply capacity, punctual delivery time
Best of sales service are provided
Company information
Shanghai Jiukai Wire & Cable Co., Ltd is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 ".
FAQQ: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Contact UsIf you have another question about Building and Housing H07V-U single core copper conductor pvc insulated electrical wire, pls feel free to contact us as below:
