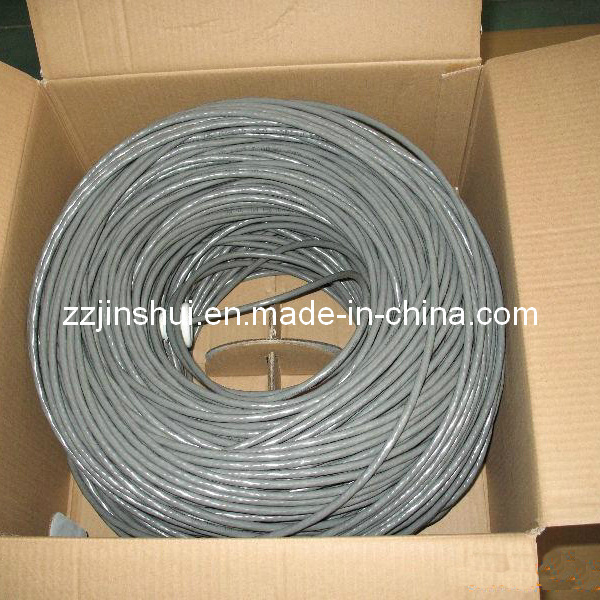

Name: Building/Cat5e /Network Wire
Brand: all-electronics-online.com
SKU: 611773784
Availability: InStock
Rating: 4.9 (105 reviews)

Price:	US $ 0.5-2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	cat5e
Markets:	South America,Southeast Asia,Africa
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC

Product Description

Specifications

1.lan cable cat5e cat6e
2.cat5e cable :8p8c
3.china manufacturer .factory price
4.ROHS.ISO9001.CE.FCC.UL

Application:This 4-pair category5e cable tested for power Sum NEXT,ELFEXT,Delay Skew.Propagation Delay and any other criteria as specification in the emerging standerd.Application can include Voice,ISDN,ATM155 and 622Mbps,100Mbps TPDDI,Fast and Gigabit,Shielding protects again EMI/RFI interference.

Electrical performance(at 100Mbps)
1.0-100.0MHz impendance(ohms)100±15
1.0-100.0MHz impendance delay screw(ns/100m)<45
Pair to Ground Capacitance 20%(ohms/km)<93.8
Resistance Unbalance 5%
Test Object:jacket
Test Material:PVC,PE,LSZH
Before Tensile strength(Mpa)≥13.8
Aging Elongation≥100%

core color:
pair 1:Blue-white/blue
pair 2:Orange-white/orange
pair 3:Green-white/green
pair 4:Brown-white/brown

wire specification:

Conductor: solid bare copper
Awg:24
OD:5.4±0.05 mm
Insulation:PE

1. Molded Category 5E RJ45 Patch Cables for Ethernet Applications

2.4-Pair Stranded Category 5E cable for compatibility with today's networks

3. Snagless Molded Boot for simple connection to patch panels

4. EIA568A/B Compatible for installation in all Ethernet networks

5. FTP CAT5e, SFTP CAT5e Patch Cables can also be offered
