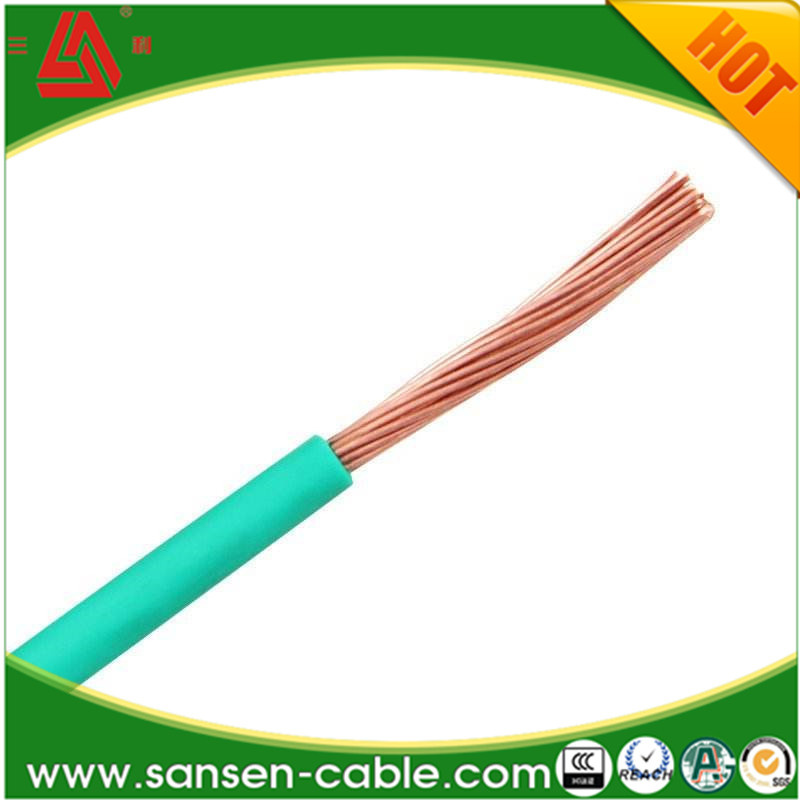

Building Single Core Stranded Copper Electrical Wire

Name: Building Single Core Stranded Copper Electrical Wire
Brand: all-electronics-online.com
SKU: 730369032
Availability: InStock
Rating: 4.8 (94 reviews)

Price:	US $ 0.3/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BVR
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Sansen

Product Description

Synthetic data of 450/750V BVR model PVC insulated flexible cable with copper core

Nominal cross section of conductor mm²	Minimum number of single line in the stranded conductor	Rated value of insulator thickness mm	Upper value of average overall diameter mm	Minimum insulation resistance under temperature 70⁰C MΩ.km

2.5 4 6 10 16 25 35 50 70 95 120 150 185 *240	19 19 19 49 49 98 133 133 189 259 259 703 703 1220	0.8 0.8 0.8 1.0 1.0 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0 2.2	4.1 4.8 5.3 6.8 8.1 10.2 11.7 13.9 16.0 18.1 19.8 22.4 25.0 27.8	0.011 0.009 0.0084 0.0072 0.0062 0.0058 0.0052 0.0051 0.0045 - - - - -

Note: 1.Insulator:PVC/C type PVC mixture is adopted as insulating material
2.The average overall diameter should not be larger than the upper value stipulated in the above table.

FAQ

Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable,power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes,we do,that is a start of business-i think. And you will only pay the cost of delivery,
which we will return it to you when you put the order.

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.

At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.

We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
