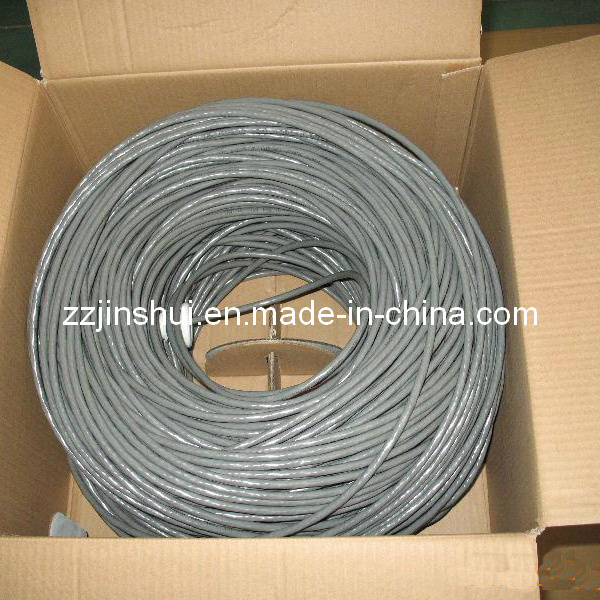

Building Wire
| Price: |
US $ 1/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
BV 1.5 2.5 4 6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001 |
| Producing Experience: |
30 Years |
| Shipping: |
by Sea |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Building |
| Brand: |
Jinshui |
Product Description
Product Description
PVC insulated wires is used in the construction of buildings airports, power transportation, rural power network reformation
1. Range of Application
This wire is fit for AC rated voltage 450/750V and below of domestic electrical appliances of smaller size motorized tools of instruments of various meters and motorized lighting installations.
2. Service Conditions
Working temperature: Not more than 105 degree for RV-105 model. The other no more than 70 degree.
Product Include:
1) Copper (aluminium) conductor PVC insulated wires (BV)
2) Copper conductor PVC insulated flexible wires (BVR)
3) Copper (aluminium) conductor PVC insulated PVC sheathed round wires
4) Copper (aluminium) conductor PVC insulated PVC sheathed flat wires
5) Copper conductor PVC insulated flat and flexible connectors
6) Copper conductor PVC insulated PVC sheathed round and flexible connectors
PVC Insuated building wire :
Fire-resistant cable, This kind of product can realize operation in a certain period of time under the conditions of flame combustion,which can apply to the places with flammable, fire-fighting equipments.
Rated voltage U0/U:450/750V
Long-time working temperature should be lower than 70°C,the working temperature of type BV-105 should be lower than 105°C
The temperature of fixed wiring cable should be higher than 0°C,allowed bending radius:
When cable outer diameter (D)
When cable outer diameter (D)≥25m,the bending radius should be≥6D.
PVC insulared flexible wire:
Rated voltage U0/U:450/750V,300/500V,300/300V
The products are suitable for household electrical appliances, small electric power tools, AC rated voltage up to and including 450/750V, and below the small household electrical appliances, electric tools, instruments and apparatuses and lighting devices, which is used for connecting power line.
Long-time working temperature should be lower than 70°C,the working temperature of type RV-105 should be lower than 105°C
Type | Rated Voltage | Application | Cores | Nominal cross-sectional areas |
| GB | IEC | HAR Code |
|
|
|
|
BV
BLV | 60227 IEC 01
JB/T 8734 | H07V-U/R | 450/750V | Single-core non-sheathed cable with rigid conductor for general purpose | 1 | 1.5-400
2.5-400 |
| RV | 60227 IEC 02 | H07V-K | 450/750V | Single-core non-sheathed cable with flexible conductor for general purpose | 1 | 1.5-240 |
| BV | 60227 IEC 05
JB/T 8734 | H05V-U
H05V-R | 300/500V | Single-core non-sheathed cable with solid /stranded conductor for internal wiring for a conductor temperature of 70 °C | 1 | 0.5-400 |
| RV | 60227 IEC 02 | H05V-K | 300/500V | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70 °C | 1 | 0.5-240 |
BVV
BLVV
| 60227 IEC 10 | / | 300/500V | Light Polyvinyl chloride sheathed Round cable | 2-5
1 | 1.5-35
0.75-185 |
| BVVB | JB/T 8734 | / | 300/500V | Light Polyvinyl chloride sheathed Flat cable | 2,3 | 0.75-6 |
| RVV | 60227 IEC 52 | H03VV-F
H03VVH2-F | 300/300V | Light Polyvinyl chloride sheathed cord | 2-16(Round)
2(Flat) | 0.5-6 |
| RVV | 60227 IEC 53 | H05VV-F |
300/500V | Ordinary Polyvinyl chloride sheathed cord | 2-16(Round) | 0.5-6 |
| H05VVH2-F | 2 (Flat) |
| JB/T 8734 | / | 300/500V | Ordinary Polyvinyl chloride sheathed cord | 2 (Flat) | 1.0-4 |
| Multi cores | / |
| RVVP | JB/T 8734 | / | 300/300V | Polyvinyl chloride insulated and sheathed cord with screen | 2-24 | 0.5-6
|
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
