Built-in Controller Power Supply Integrated Machine 6kw Solar Power Inverter

Name: Built-in Controller Power Supply Integrated Machine 6kw Solar Power Inverter
Brand: all-electronics-online.com
SKU: 832871115
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SNS48-3K
Application:	Industrial
Specification:	Normal

Product Description

Built-in controller power supply Integrated machine 6kw solar power inverter

Product introduction :DC and AC isolation design: the power frequency transformer isolation way, safe and reliable, integrated design, built-in efficient photovoltaic controller with pure sine wave inverter, high cost performance.

Function features:DC and AC isolation design: the power frequency transformer isolation way, safe and reliable Integrated design: built-in efficient photovoltaic controller with pure sine wave inverter, high cost performance. Perfect protection function: battery, undervoltage, overvoltage, heat output, output overload, short circuit, battery, battery overcharge, discharge the defence of the filling and a series of alarm and protection function at night. Digital + LED display: dc voltage, inverter, inverter output current, output voltage inverter output frequency, power input voltage, power grid frequency, etc Convenient installation and simple maintenance

Mode:SNS-		1KW	1.5KW	2KW	3KW	4KW	5KW
Rated power		1000W	1500W	2000W	3000W	4000W	5000W
Battery	Rated voltage	12VDC/24VDC/48VDC		24VDC/48VDC		48VDC/96VDC
Controller	solar input voltage	<25V;×2/24V;×4/48V;×8/96V;
	Charge current	20-60A
	Voltage of boosting charge	14.2V;×2/24V;×4/48V;×8/96V;
	Voltage of direct charge	14V;×2/24V;×4/48V;×8/96V;
	Voltage of floating charge	13.8V;×2/24V;×4/48V;×8/96V;
Inverter	Input voltage	85-138VAC/170-275VAC
	Input frequency	45-65Hz
	Charge current	30A(default) -C0-C6
	Battery type	U0-U7 (settable)
	Output voltage	110VAC/220VAC;±5%(inversion mode)
	Output frequency	50/60Hz±1%(inversion mode)
	Output waveform	Pure sine wave
	Switching time	<10ms( typical load)
	Efficiency	>85%(80% resistive load)
	Overload	110-120%/30S;>160%/300ms;
	Protection function	Battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection,overtemperature protection,etc.
Ambient temperature for operation		0-40ºC
Ambient temperature for storage		-15 - +50ºC
Relative humidity for operation/storage		0-90%(no condensation)

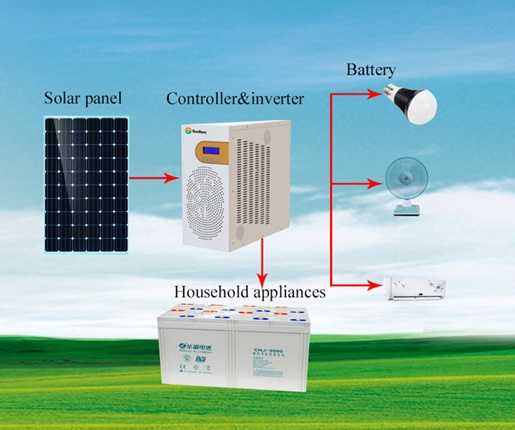

Off-grid Photovoltaic Inverter , is the core component of photovoltaic power systems. It will turn DC power into AC power, and control photovoltaic modules to charge for battery, mainly apply in photovoltaic power station, light, oil, storage complementary power generation system and household photovoltaic power supply system, etc. High conversion efficiency, excellent performance advantages, for the inconvenient traffic, bad environments mountain, pastoral areas, frontier , island and so on without electricity areas use new energy generate power, provide absolutely reliable guarantee.
