| Prod Model: |
gps vehicle tracking cheap GPS303H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fleet Management: |
Engine Shut Remotely, Fuel Monitor |
| Arm Disarm: |
Vehicle Tracker with Acc Door Shock Sensor Alarm |
| Global Compatibility: |
850/900/1800/1900 MHz |
| Memory Slot: |
Yes |
| Internal Antennas: |
High Sensitivity, Easy Hiden |
| Tracking Soltuions: |
SMS, GPRS Tracking Platform, Android Ios Apps |
| Remote Engine-Stop And Resume.: |
Yes |
| Arm/Disarm: |
Yes for Acc/Door/Shock Sensor Alarms |
| Certificate: |
Ce FCC GPS Tracker |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
Product Description

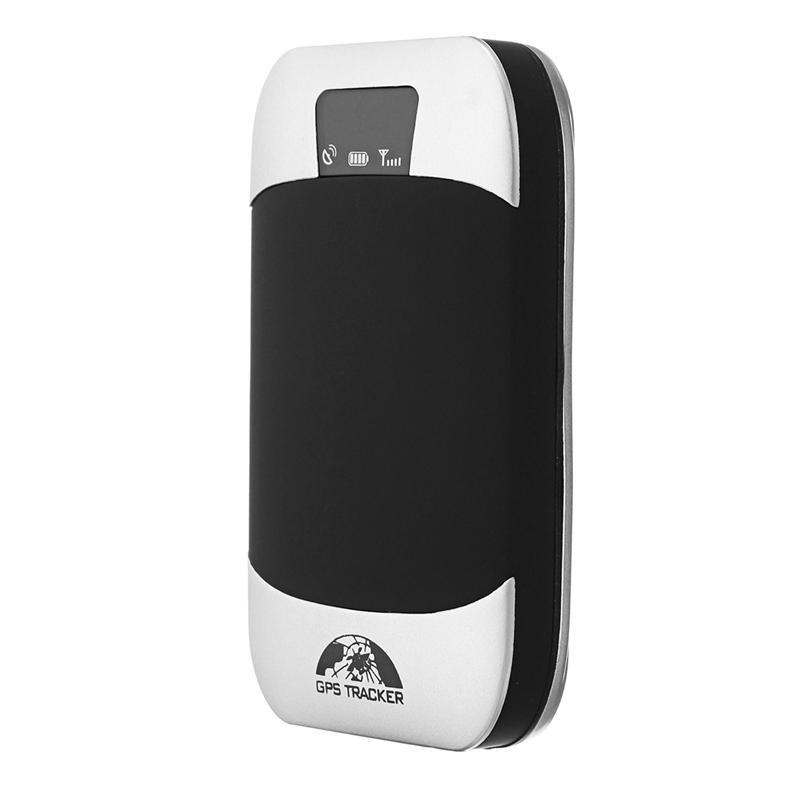

Built-in GSM GPS Antenna GPS Vehicle Tracking device for car with fuel monitor (TK303H) 2017.4.24
Built-in GSM, GPS antenna, Shock sensor,elegant appearance.
*Google maps GPS car tracking system
*Support fuel sensor for fuel level monitor
*Get location in real street/address name, send "address+pas Google maps GPS car tracking system
with remote controller GPS tracker sword to tracker.
*Location Based Service.
*Remote Engine-stop and Resume.
*Tracking function by timing and frequency
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence
*Door / ACC Alarm
*Movement alert.
*Over speed alarm.
*Power supply disconnection alarm.
*Low battery alarm function
*Check the vehicle status
*Set up DOOR ALARM, ACC ALARM, Shock ALARM
*Alarm without GSM network service
*Less GPRS traffic
*Automatic update positions of vehicle turns
*GPS blind area alarm
New Functions:
1. ACC working inform when track with unlimited times upon time interval
2. Decide how many times of alarm message
3. Calibration of fuel sensor
4. Built in Acceleration Sensor Alarm
Optional accessories:
* Fuel sensor for monitor fuel
* Alarm siren
* SD card
4.application
Used widely for vehicle and car rental, Fleet management etc .
Specifications
Content | Specification |
DIM | 9.6×5.3×1.6cm |
Weight | 70g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS sensitivity | -159dBm |
GPS accuracy | 5meter |
GPS start time | Cold status 45s Warm status 35s Hot status 1s |
Car power supply | 12 V -24V |
Back up battery | Chargeable 3.7V 700mAh Li-ion battery |
Storage Temp | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
