Built-in PWM Solar Charger Controller Pure Sinewave Power Inverter

Built-in PWM Solar Charger Controller Pure Sinewave Power Inverter
Price: US $ 1-100/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Rainbow Star Plus Series 1000Va-5000Va
Color: Gray
Output Frequency: 50Hz or 60Hz
For Home Appliances: 90-280 VAC
Input Voltage: 12/24/48V

Product Description

Built-in PWM Solar Charger Controller Pure Sinewave Power Inverter
Grid Hybrid Pure Sine Wave Inverter Controller Rainbow Star Plus Series 1000Va-5000Va   (1ph in/1ph out)

Key Features
1:Cold start function
2:High frequency full bridge design
3:Built-in PWM solar charge controller
4:Compatible to mains voltage or generator power
5:Designed to Operate under Harsh Environment
6:Dry contact: alarm signal to start AC backup( optional)
7:Allows start up and through power with depleted batteries
8:Solar power mode and Grid power mode, can be free choose
9:Have everlasting lifetime in extreme environmental conditions
10:Components with high-quality original, ensure products with high quality
11:Selectable input voltage range for home appliances and personal computers
12:LED & LCD Display on the front panel shows the working and failure state

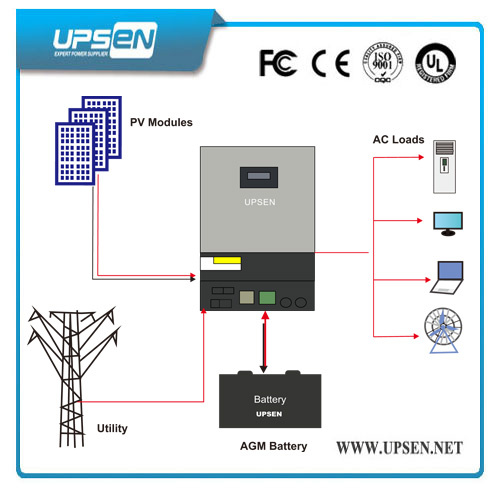

Application
Supply the reliable long back up time power for the TV,Computer,DVD,VCD, Printing machines,Data center, Video Recorders,Emergency Lighting Systems,Large Data rooms,Power tools, lawn mowers,medical equipment Portable video camera portable personal computeretc.

Technical Specification
ModelRS Plus 1K RS Plus 2KRS Plus 3KRS Plus 4KRS Plus 5K
RATED POWER1000VA/800W2000VA/1600W3000VA/2400W4000VA/3200W5000VA/4000W
INPUT
Voltage208/220/230/240 VAC
Selectable
Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation
(Batt. Mode)
230 VAC ± 5%
Surge Power2000VA4000VA6000VA8000VA10000VA
Efficiency (Peak)90~93%93%
Transfer Time10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
WaveformPure sine wave
BATTERY & AC Charger
Battery Voltage12VDC24VDC48 VDC
Floating Charge Voltage13.5VDC27VDC54 VDC
Overcharge Protection15.5VDC30VDC60 VDC
Maximum AC
Charge Current
10A or 20A20A or 30A20A or 30A
SOLAR CHARGER
Maximum PV Array
Open Circuit Voltage
30VDC 60VDC90VDC
Solar Charge Current50A110A
Standby Power
Consumption
1W2W2W
PHYSICAL
Dimension, D x W x H (mm)95*240*316100*272*355120*295*468
Net Weight (kgs)56.46.99.89.8
OPERATING ENVIRONMENT
Humidity5% to 95% Relative Humidity(Non-condensing)
Operating Temperature0°C - 55°C
Storage Temperature-15°C - 60°C
