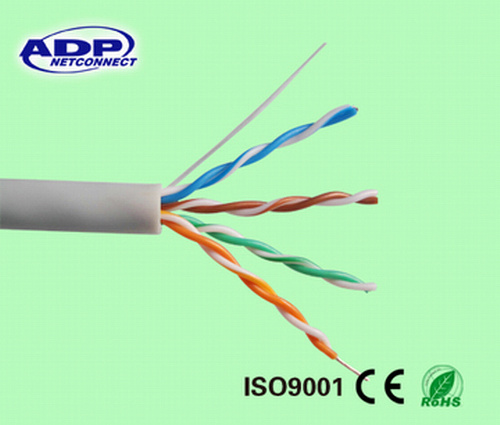

Name: Bulk 305m Pull Box UTP Cat5e Cable Pass Fluke Test
Brand: all-electronics-online.com
SKU: 803777005
Availability: InStock
Rating: 4.3 (139 reviews)

Price:	US $ 16.56/Roll
Min Order:	200/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAT5E Fluke test
Color:	Optional or Customized
Printing:	OEM or According Customer Requirement
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Cat5e
Wire Core Material:	CCA
Brand:	Szadp ,Adplancable

Product Description

China Bulk 305M Pull Box UTP Cat5E Cable Pass Fluke Test
nt

Applications:

1.Computer Network Cabling Project.

2.Broadband Network Communication.

3.Digital ISDN Network and ATM 155Mbps Network

4.Ethernet Network

5.Audio and Data Tra

Specification:

Product Name	Lan Cable
Type	Cat5e UTP
Conductor	copper clad aluminum
AWG	24
Conductor Dia	0.5mm +/-0.02
Insulation	PE,HDPE,LSZH
Average Thicknes(+/-0.03mm)	0.55mm
Min Point Thickness	0.4mm
Insulation Dia(+/-0.03mm)	1
Twisting Lay Length(mm)	30 undemeath
Cabling Lay Length(mm)	200 undemeath
Jacket	PVC/LSZH
Average Thickness	0.5
Min Point Thickness	0.4
Outer Dia(+/-1.0mm)	5.8
Rip Cord	Yes
Weight Nom(kg/km)	60
Core Color	Blue-white/blue, Orange-white/orange, Green-white/green, Brown-white/brown
Standard Reference	YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
