| Prod Model: |
RHT-612 |
| Business Type: |
Manufacturer |
| Connector Type: |
SMA Connector |
| Orientation: |
Straight |
| Impedance: |
50ohm |
| Body Material: |
Brass |
| Finish: |
Gold Plated |
| Warranty: |
12 Months |
| Lead Time: |
7-10 Days |
| Service: |
OEM/ODM |
| Type: |
PCB Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Brand: |
Renhotec |
| Interface Type: |
Thread |
Product Description

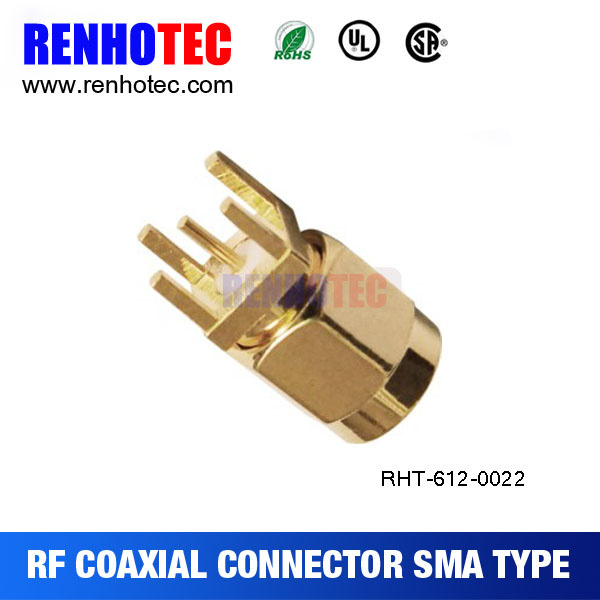

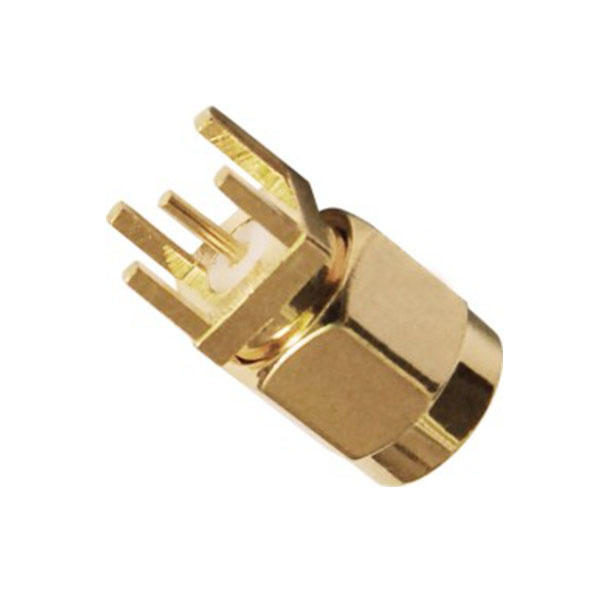

Bulkhead SMA Male Connector for PCB Mount
Features:
1. Good quality with reasonable price.
2. On time delivery
3. RoHS compliant
4. Best service

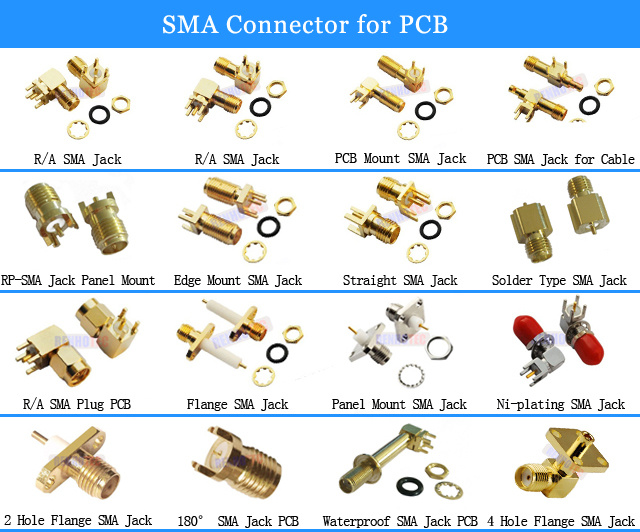

Hot sell SMA connectors for electronic:
SMA connector series product is widely used small coaxial connectors with threaded connections, high strength, and good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum. Using the appropriate adapter cables, SMA connectors in the 18GHz still has good electrical properties. SMA series has long product life, superior performance and high reliability. Widely used in microwave devices and digital communications equipment RF circuit to connect the RF coaxial cable or microstripit, and the width performance are excellent, high frequently.
Applications:
1. Base Stations
2. Cable Assemblies
3. Components
Major technical characteristics:
| Temperature Range | -55 to +155° C(PE Cable-40 to 85° C) |
| Vibration | 100m/s2 (10-2000Hz) |
| Impedance | 50Ω |
| Frequency | DC to 12.4GHz(semi-rigid cable: 0-18 GHz) |
| Working Voltage | 335V r. M. S at sea level |
| Withstanding Voltage | 1000V r. M. S at sea level |
| Center contact Resistance | ≤ 3m Ω |
| Outer contact Resistance | ≤ 2.5m Ω |
| Insertion Loss | ≤ 0.15dB(6GHz) |
| Insulation resistance | ≥ 5000M Ω |
| Center Conductor Retention Force | ≥ 0.28N |
| Coupling nut retention force | ≥ 180N |
| VSWR Straight | ≤ 1.10+0.02f |
| Right angle | ≤ 1.20+0.03f |
| Durability(mating) | ≥ 500cycles |
Material and plating:
| Body: Coupling Nuts, Other Metal Parts (except as noted) | Brass per QQ-B-626 |
| Contacts Male | Brass |
| Female | Beryllium copper, heat treated |
| Center Contact Plating | 000030" minimum gold |
| Plating (Other Metal Parts)Standard | 000010" gold or nickel plated |
| Insulators | Fluorocarbon |
| Gaskets | Silicone rubber |
| Crimp Ferrule Seamless | Copper tubing alloy |
Company Information
RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.
Packing:
Normal packing: 100 pcs per tray or polybag ,1000pcs per carton.
Private packing and label service are available as per your requirement.
Shipping:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. Items can be sent within 7-10 working days after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
FAQ
1. When can I get the quotation?
2. What's your MOQ?
Normally our MOQ is 1000pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How do you guarantee the quality?
All of the raw materials we used are purchased from qualified suppliers with certification approved, we promised our connectors are strictly accoring to UL, ROHS standards. QC will inspect goods before shipping to ensure the quality.
5. What's the warranty?
One year, 12 months.
