VICCIA Electrical Co., Ltd. >> Bus Bar Insulator

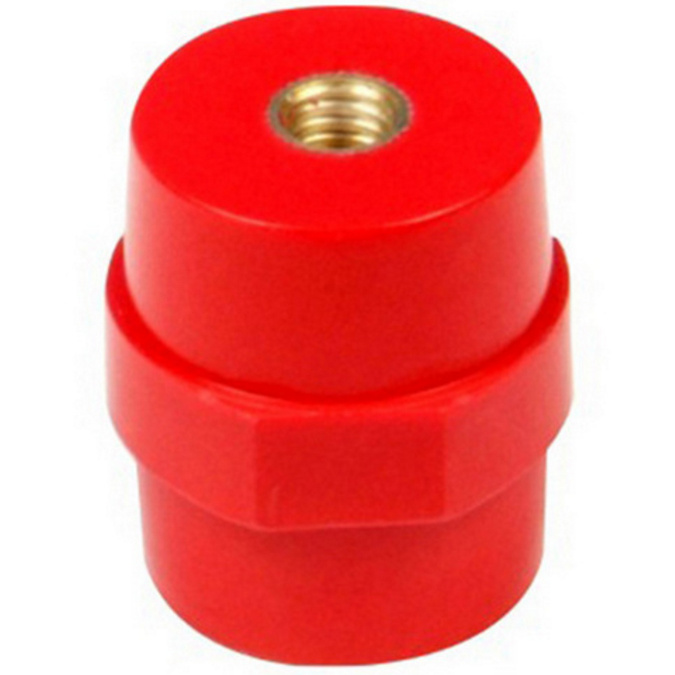

Bus Bar Insulator

Bus Bar Insulator
Price: US $ 0.1-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: SM35
Application: High-voltage
Material: Composite Polymer
Structure: Bushing Insulator
Type: B Type Insulator

Product Description

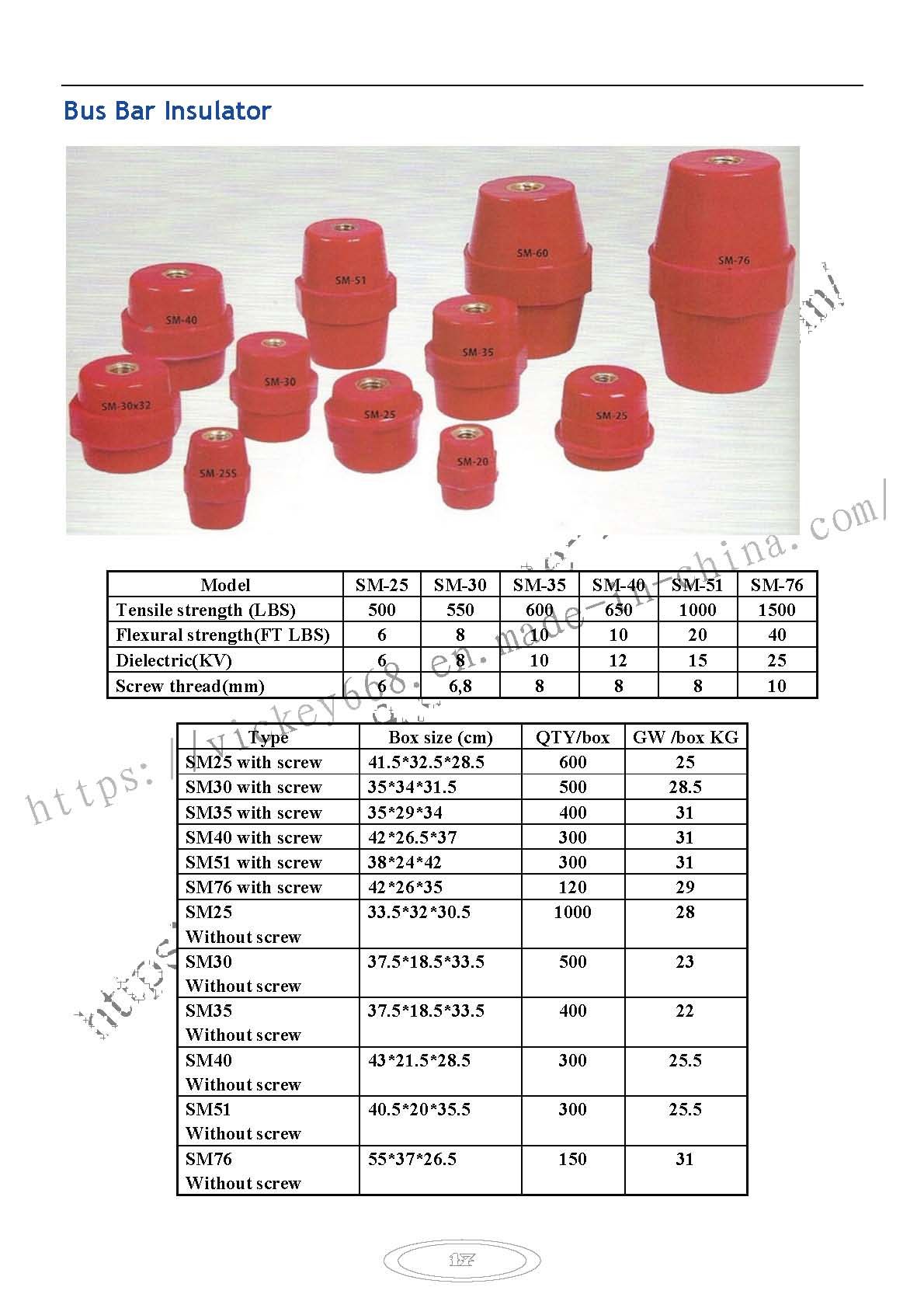

ModelSM-25SM-30SM-35SM-40SM-51SM-76
Tensile strength (LBS)50055060065010001500
Flexural strength(FT LBS)6810102040
Dielectric(KV)6810121525
Screw thread(mm)66,888810
TypeBox size (cm)QTY/boxGW /box KG
SM25 with screw41.5*32.5*28.560025
SM30 with screw35*34*31.550028.5
SM35 with screw35*29*3440031
SM40 with screw42*26.5*3730031
SM51 with screw38*24*4230031
SM76 with screw42*26*3512029
SM25 Without screw33.5*32*30.5100028
SM30 Without screw37.5*18.5*33.550023
SM35 Without screw37.5*18.5*33.540022
SM40 Without screw43*21.5*28.530025.5
SM51 Without screw40.5*20*35.530025.5
SM76 Without screw55*37*26.515031


VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
