Bus Drop Cable with 3 Conductors and 10 AWG Wire
| Price: |
US $ 0.25-0.3/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Product Name: |
Bus Drop Cable |
| Voltage: |
600V |
| Certificate: |
UL |
| Standard: |
UL859 |
| Conductor Size: |
14AWG 12AWG 10AWG 8AWG |
| Number Of Cores: |
2,3,4,5,6,7,9,10,12,15,16,19,20,25,30,37 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
UL |
| Application: |
Trays, Raceways, and Outdoor Locations |
| Brand: |
Ren Da |
Product Description
Bus Drop Cable with 3 Conductors and 10 AWG Wire
Bus drop Cable:
- Resistant to Oils, Lubricants, Acids, Alkalies, Ozone, Water and Abrasion.
- One Uninsulated Ground Conductor per Interstice. Used in Wet or Dry Locations. 600 Volt.
- UL Listed. OSHA Acceptable. RoHSCompliant. -20°C to 75°C(14-8 awg), 60°C (6-2 awg).
APPLICATIONS
Southwire's Bus Drop Cable is intended for use in indoor or outdoor applications for connection of stationary or portable equipment to facilitate relocation of equipment.
Detail:
| CONDUCTORS: | 14 AWG - 2 AWG fully annealed stranded bare copper |
| Stranding per ASTM B 8 |
| INSULATION: | Premium grade Polyvinyl Chloride (PVC) |
| JACKET: | Industrial grade, abrasion resistant Polyvinyl |
| Chloride (PVC) |
| LEGEND: | CCI ROYAL E54864 (SIZE) BUS DROP CABLE TW INS. |
| (UL) 600V 60C DRY 60C WET OUTDOOR |
| FEATURES: | Oils, lubricants, acids, alkalis, water, ozone and |
| abrasion resistant |
| One uninsulated ground per current-carrying conductor |
| Wet and dry location approved |
| APPLICATIONS: | Drop cable from overhead electrical busways |
| Connection of stationary equipment to allowrelocation |
| Indoor or outdoor wet and dry locations |
| OPTIONS: | Tinned copper, shielding and other color codesavailable |
| upon request |

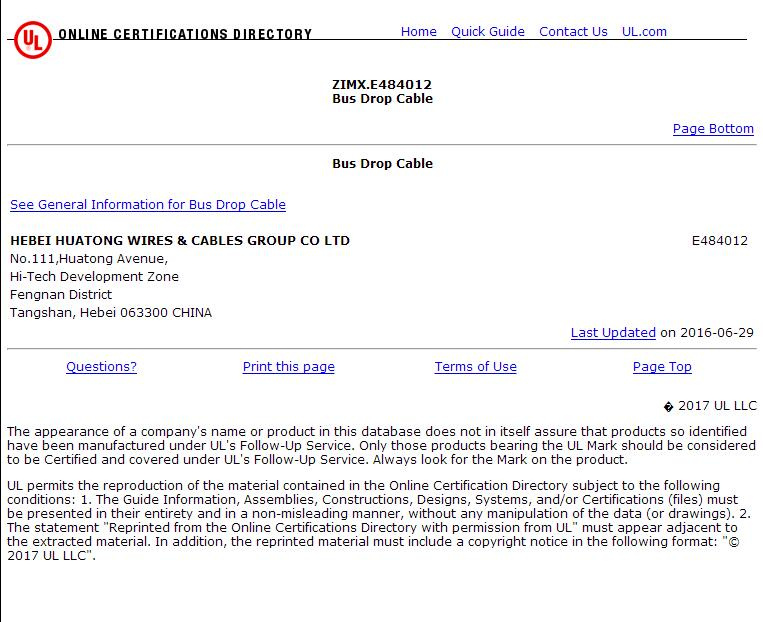

| INDUSTRY APPROVALS: | UL Subject 509 |
6 Company information:

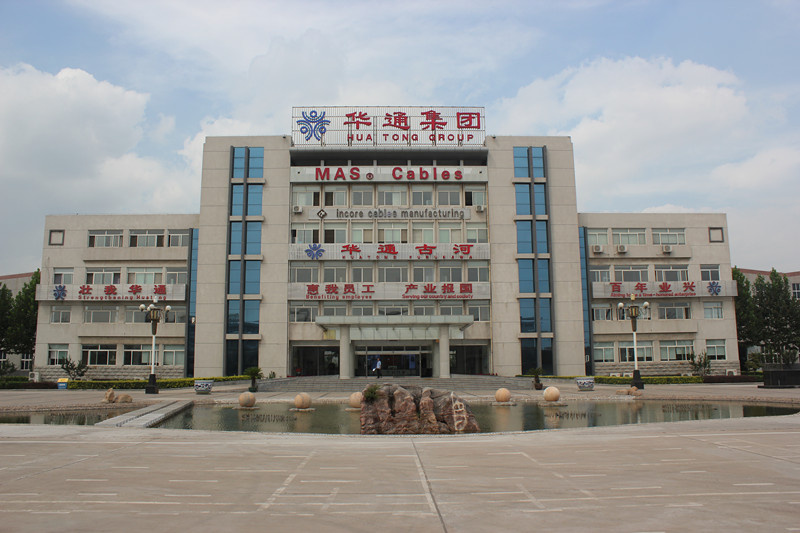

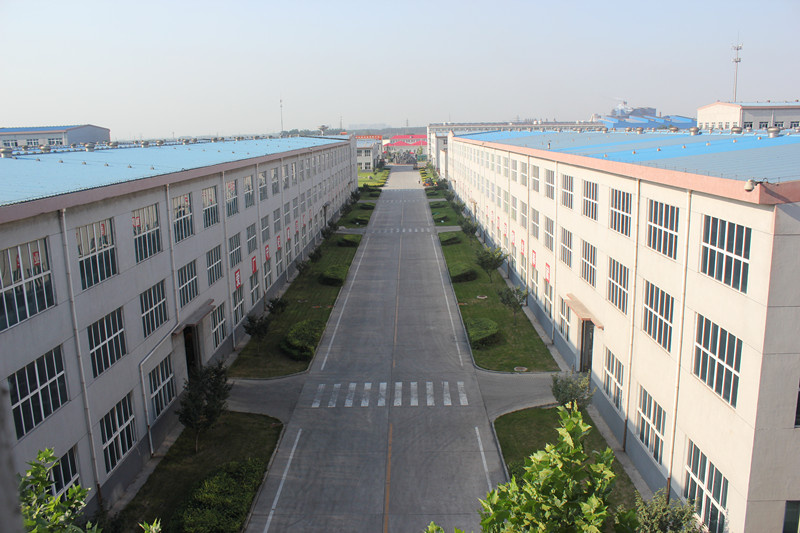

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
7 Our service:
1.22 years production experience and 13 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate
