Bvr Cable South Africa Called Thw Cable Mechanic Equipment Installation

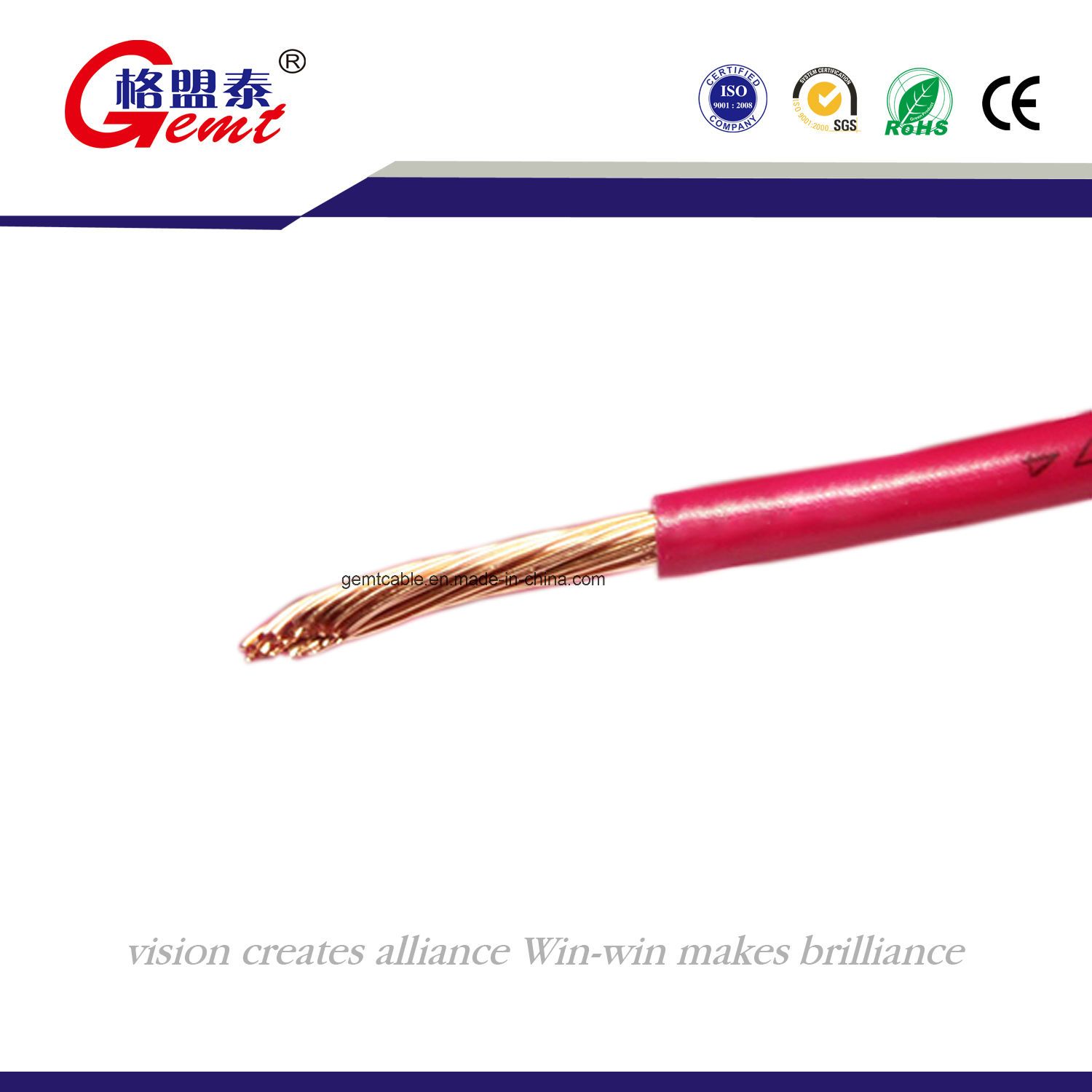

Name: Bvr Cable South Africa Called Thw Cable Mechanic Equipment Installation
Brand: all-electronics-online.com
SKU: 802896865
Availability: InStock
Rating: 4.8 (56 reviews)

Price:	US $ 1.8-11/Roll
Min Order:	100/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GEMTBVR004
Length:	100m/Roll
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Range Of Application:	Household
Brand:	Gemt

Product Description

Indoor House Wiring THW/BVR Cable
Application:
Electrical Instruments, Lighting, Equipment, Household appliances, Railway, Computer, Industrial, Industrial Car, Telecommunication, Military, Mining, Power Station; Construction and Of AC, DC electrical installations.

Type	Name	Laying place and requirement	Long term working Temperature 0C
BVR	Copper conductor PVC insulated flexible cable	Be for laying permanent place where flexible required.	70
BVR	Nominal section (mm²)	Core Structure No/Dia.(mm)	Max DC Resistance(Ω/Km. 20°)
	2.5	19/0.41	7.41
	4	19/0.52	4.61
	6	19/0.64	3.08
	10	49/0.52	1.83
	16	49/0.64	1.15
	25	98/0.58	0.727
	35	133/0.58	0.524
	50	133/0.68	0.387
	70	189/0.68	0.268

AWG	Diameter		Turns of wire		Area		NEC copper wire ampacity with 60/75/90 °C insulation (A)[7]
AWG	(inch)	(mm)	(per in)	(per cm)	(kcmil)	(mm2)	NEC copper wire ampacity with 60/75/90 °C insulation (A)[7]
0000 (4/0)	0.4600	11.684	2.17	0.856	212	107	195 / 230 / 260
000 (3/0)	0.4096	10.404	2.44	0.961	168	85.0	165 / 200 / 225
00 (2/0)	0.3648	9.266	2.74	1.08	133	67.4	145 / 175 / 195
0 (1/0)	0.3249	8.252	3.08	1.21	106	53.5	125 / 150 / 170
1	0.2893	7.348	3.46	1.36	83.7	42.4	110 / 130 / 150

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
