Bvr Series Popular AC Voltage Stabilizer

Bvr Series Popular AC Voltage Stabilizer
Price: US $ 10.3-12.6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: BVR
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delay Output Time: 3-7 Min /3-7 Sec
Current Type: AC
Phase: Single Phase
Usage: SVC
Frequency: 50/60Hz

Product Description

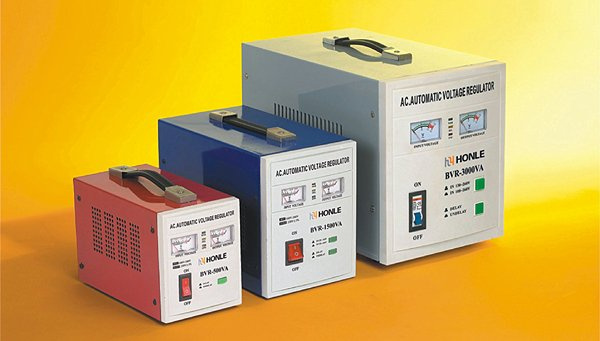

HONLE BVR series relay type voltage stabilizer
Feature
This series automatic voltage regulator is a kind of delay control stabilizer, it owns wide input voltage range, compact size, light in weight, delay output, little wave distortion and reliable, strict design and accurate assemble. This kind of stabilizer can add voltage regulating function also.
Technical Features
1. Input voltage: 150-270V
2. Output voltage: 220V+/-8% 110V+/-10%
3. Delay output time: 3-7 min /3-7 sec
4. Frequency: 50/60Hz

Model
Power AVR-500VA AVR - 1000VA AVR - 1500VA AVR -2000VA  AVR - 3000VA AVR - 5000VA
Input Phase Single Phase
Voltage AC150-270V
Frequency 50Hz/60Hz
Output  Voltage  220V+/-8%,110V+/-10%
Efficiency  98%
Frenquency 50Hz/60Hz
Over voltage protection AC246V+/-4V
Protection Under-volt Optional
Over-volt Optional
Over heat Optional
By pass No
Delay 3-7min/3-7sec
Over load/short circuit Yes
Environment Operating temperature -10~40 C
Storage temperature -15~45 C
Humidity 20% to 90%
Packing  Pcs/carton  8  4   4 4 1  1
 Machine size(cm) 22*11*14.5 25.5*14*19.2 25.5*14*19.2 25.5*14*19.2 34.5*21*25.5 34.5*21*25.5
Package dimension(cm) 48*27*33 31.5*30*42 31.5*30*42 31.5*30*42 39.5*25*29 39.5*25*29
