BVV Copper Wire/BVV Electrical Wire Copper Conductor Cable Used in Building

Name: BVV Copper Wire/BVV Electrical Wire Copper Conductor Cable Used in Building
Brand: all-electronics-online.com
SKU: 828291425
Availability: InStock
Rating: 4.5 (73 reviews)

Price:	US $ 0.2-5/Roll
Min Order:	100/Roll
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BVV CABLE
Factory:	Shenzhen, Huizhou, Dongguan
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Range Of Application:	Grounding
Brand:	Gemt

Product Description

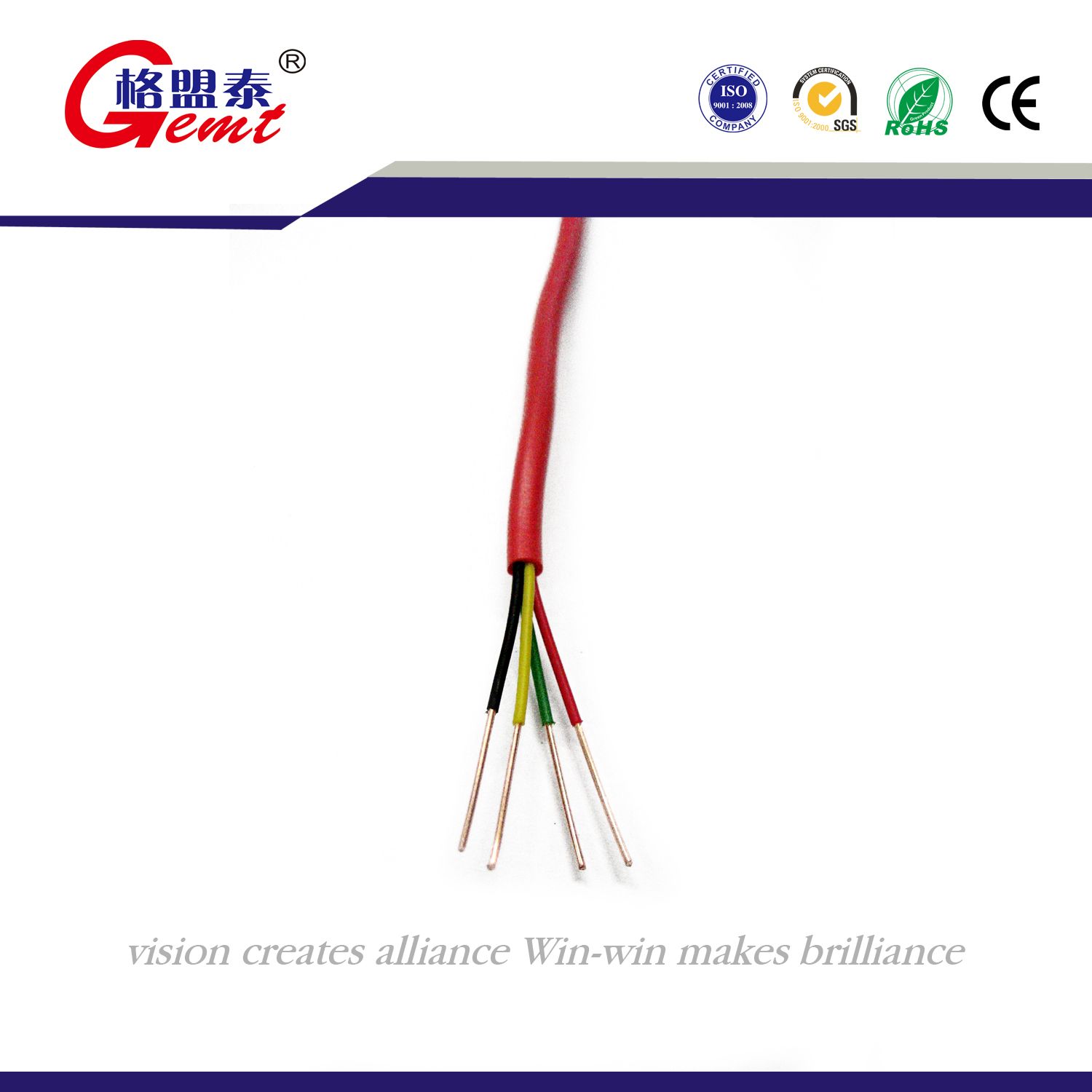

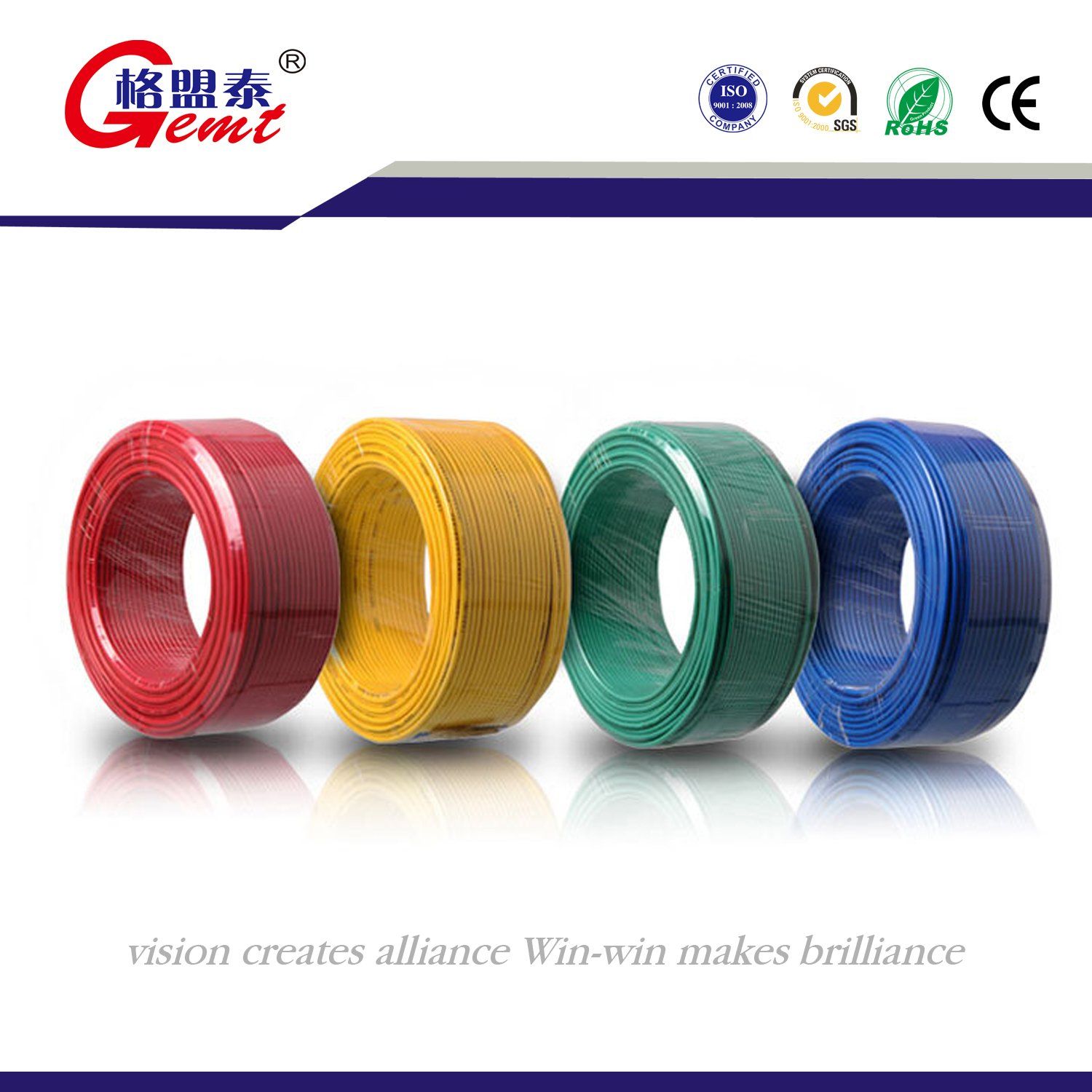

BVV copper wire/BVV electrical wire cables used in building

The PVC insulated wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places.They are widely used as connectors of driving, lighting, electric equipment, instrument andtelecommunication equipment with rated voltage up to 450/750V(U0/U). part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300V.

1.U0/U 300/500V,450/750V
2.Standard applied: IEC 60227 , BS 6004, VDE0281, JB/T8734
3.Insulation:PVC
4.Conductor: copper
5. Sheath:PVC
6.Cross section area:0.75~630mm2
7. 100 meters per roll or as per request
8.Color: Black or as per requirement
9.Max. working temperature: 70 °C , can be 90 °C ,105 °C and 125 °C as per requirement
10.Flame retardant or Fire resistance or low smoking and Halogen free or other property can be avaliable
11. Certification : ISO9001/ISO14001 /OHSAS18001/CCC
12.OEM can be available

Type, name and application

Type	Name	Application	Long-term Permissible Working Temperature
BV BLV	Copper Conductor,PVC insulated Wire Aluminum Conductor,PVC insulated Wire	Fixed laid in the circumstance of indoor condult etc	70
BV	Heat Resistant Copper Conductor,PVC insulated Wire at 90 degree	Fixed laid in the circumstance of high temperature and can be laid indoor, condult etc	90
BVR	Copper Conductor PVC insulated flexible Wire	Fixed laid where flexibility is required	70
BVV	Copper Conductor,PVC insulated and PVC sheathed Round Wire	Fixed laid where high mechanical protection and can be laid in the air and underground	70
BLVV	Aluminum Conductor,PVC insulated and PVC sheathed Round Wire
BVVB	Copper Conductor,PVC insulated and PVC sheathed flat Wire
BLVVB	Aluminum Conductor,PVC insulated and PVC sheathed flat Wire
RV	Copper Conductor,PVC insulated flexible Wire	Mainly used at middle and light type movable equipment, instrument and metess, power and lighting and the places where flexibility is required	70
RVB	Copper Conductor,PVC insulated flat flexible Wire
RVS	Copper Conductor,PVC insulated flat flexible twisting Wire
RVV	Copper Conductor,PVC insulated and PVC sheathed Round Flexible Wire (Light and common type)

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
