Bxp52- Series of Explosion-Proof Lighting (power) Distribution Box

Bxp52- Series of Explosion-Proof Lighting (power) Distribution Box
Price: US $ 15-20/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: BXP52
Voltage(V): 380/220
Type: Distribution Metering Box
Structure: Protection

Product Description

Type meaning
BXP 52
1  2  3  4  5  6  7  8  9  10  11  12  13  14  15  16
1 Explosion-proof distribution box
2 Design Number
3 D:power M:illumination
4 B-2B leval C-2C lexel F-Dust density type
5 T-special requirements
6 The number of branches / Rated current
7 Main switch / rated current
8 Incoming port number
9 Inlet direction D-Progress line  X-Under Line
10 Inlet specifications
11 outlet number
12 outlet direction  D-outlet  X-qualify under
13  outlet Specifications
14 L Leakage
15 W-outdoor
16 F1-Anti-corrosion medium  F2-Strong anti-corrosion
Scope

Explosive gas mixtures dangerous places:1Area2Area Explosive gas mixtures dangerous places:2A,    2B  .2C
Temperature level:T1~T5
Combustible dust:20,21,22Area
Indoor and outdoor

 Structural features

Explosion-proof box is composed by a flamproof shell, secure busbar chamber and junction box.There are
IC65N, DZ47 series miniature circuit breaker or EZD, CM1 molded case circuit breaker in the box. The box can also equipped with contactor, thermal relays, explosion-proof lights and other components, featured as overload and short circuit protection. The junction box equipped with Weidmuller SAK Series or TC series terminals or Phoenix UK series terminal.

Enclosure is Aluminum alloy for die-casting, with the high-speed blasting and cleaning,surface plastic-spray,possessing strong corrosion resistance.Indoors and Outdoor use.
Overall modular assembly structure, free combination for each circuit can also be customized according to user specific requirements.
Explosion-proof box, operation panel padlock. Switch can be locked in on-off position arbitraryly to prevent the misuse aritfically.
Pipe or cable wiring

The main technical parameters
Main circuitBranchExplosion-proof markThread SizeCable diameter(mm)Protection class
Voltage(V)Electric current(A)QuantityElectric current(A)
380/22010~2254
6
8
10
12
1~63ExdeIIBT5
ExdeIICT5
DIP A20 TA,T5
G1/2"
G3/4"
G1"
G1¼"
G1½"
G2"
G2½"
Φ6~Φ8
Φ10~Φ14
Φ16~Φ20
Φ22~Φ26
Φ28~Φ32
Φ34~Φ38
Φ44~Φ48
IP54 ,
* IP65
Note * number is optional

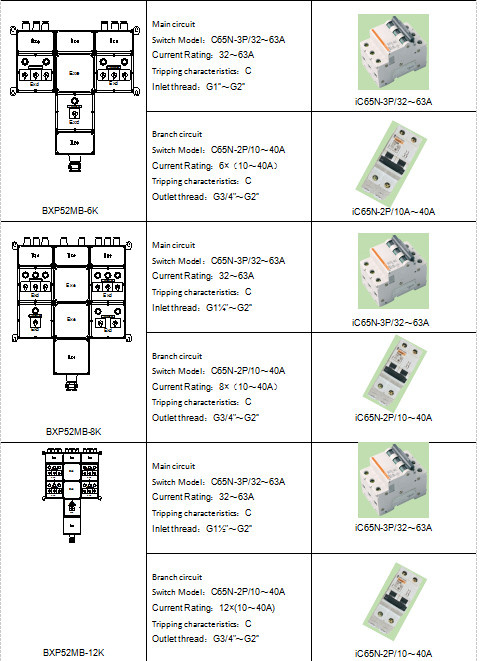

Lighting distribution box element list

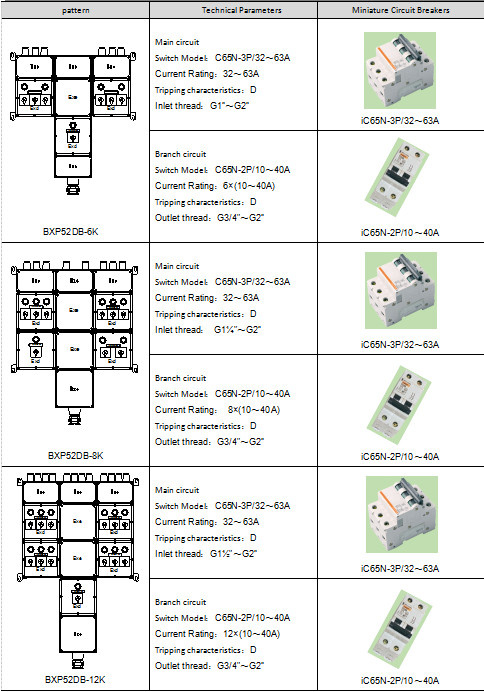

Power distribution box element list

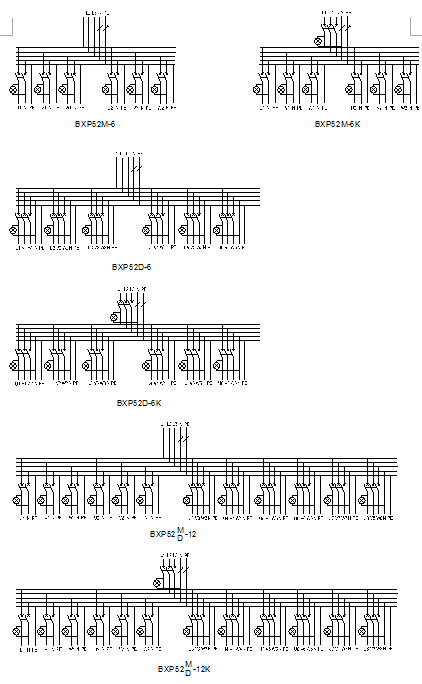

Electrical Schematic Example

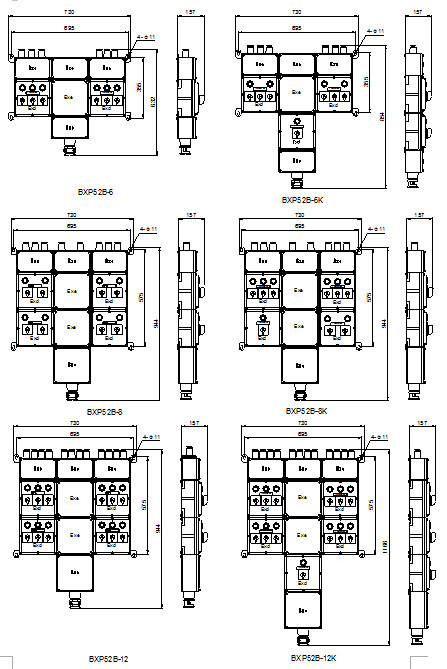

Shape and installation dimensions
