| Prod Model: |

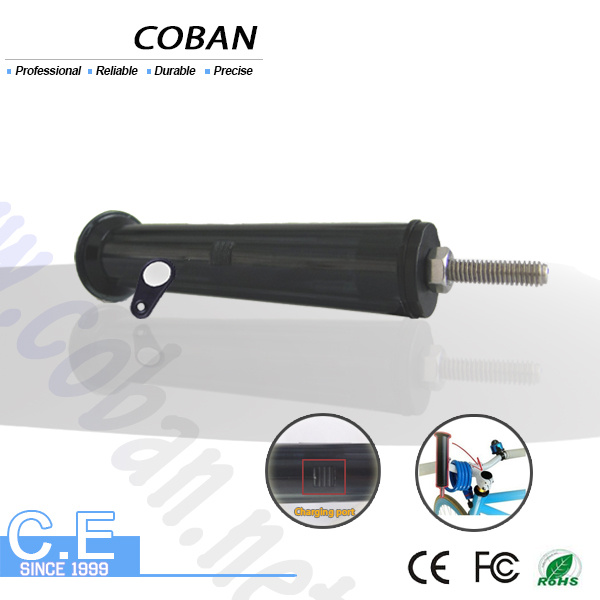

Bycicle GPS Tracker Tk305 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Hidden, with Long Battery Life |
| Battery Standby Time: |
About 180 Hours |
| OEM Or Not: |
Yes |
| Manufacturer Or Not: |
Yes |
| Warranty Time: |
1 Year |
| Delivery Time: |
2-3 Business Days |
| Function: |
Bike / Bicycle GPS Tracker |
| Certificate: |
CE FCC ISO |
| Network: |
GSM/GPRS |
| Tracking System: |
SMS, Web Platform, Phone APP |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Port Number: |
20 |
| Model: |
Tk305 Bicycle GPS Tracker |
| Screen Size: |
No Screen |
| Brand: |
Coban Bicycle GPS Tracker |
| Certification: |
CE FCC ISO |
Product Description
Model: GPS tracker TK-305
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
-Small easy to install + get street name
-SMS/APP/GPRS web platform live tracking
-remote monitor
3. Main Function discription
1. Real-time track bicycles
2. Set Authorization(5 mobile phone numbers to be allowed to authorize in the tracker)
3. Scheduled wake-up:
Send SMS command"schedule+password+space+7d"to GPS unit, tracker will wake up each 7days and report location (m: minute, h: hour, d: day) the maximum interval at most is 3 digital
Cancel scheduled wake-up: After wake up, send sms"nonschedule+password", this function can be canceled.
4. Auto track continuously:track by time and distance interval.
5. Location based service(LBS) + GPS double real time tracking solution
6. Sleep by shock sensor mode, sleep by time mode, multiple power-saving mode
7. get Absolute street address by SMS
8. Arm/disarm
9.Shock alarm
10.Geo-fence
11.Movement alarm,overspeed alarm,low battery alarm
How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.baanool.net
E >: IOS and Android APP
Web based online tracking system www.baanool.net user id: demo, password:8888
1. Specifications
Content | Specs |
| DIM | 23.5*110mm |
| Weight | 50g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Charger Voltage | 110-240V input
3.7V output |
| Battery | Chargeable changeable 3.7V 700mAh Li-ion battery |
| Standby time | 30 |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
