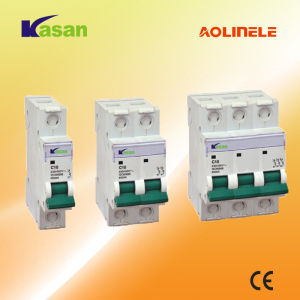

C45 1p 2p 3p 4p Miniature Circuit Breaker MCB

Name: C45 1p 2p 3p 4p Miniature Circuit Breaker MCB
Brand: all-electronics-online.com
SKU: 690334712
Availability: InStock
Rating: 4.6 (127 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	c45
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole.:	1p 2p 3p
Color:	White
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	3
Certification:	CE

Product Description

C45N miniature circuit breaker is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution in industry and commerce, etc. It has pleasing outlook & high breaking capacity, reliable performance, high inflammable resistance and shock resistance for long service life. It is within the circuit of AC 50/60Hz, rated voltage of single pole up to 230V, two, three or four poles up to 400V. It can also be used for an unfrequent change over of the circuit and illumination under normal condition.

Product name	C45 1P 2P 3P 4P miniature circuit breaker MCB mcb distribution box
Standard	Rated Current (A)	Pole	Voltage(V)	Breaking Capacity(A)
BS3871-1 IEC60898	1 to 40 50 to 63	1	240	6000
BS3871-1 IEC60898	1 to 40 50 to 63	2,3,4	415	6000
IEC157-1	50 to 63	1	240	4000
	50 to 63	2,3,4	415	4000
	1	1	220/240	10000
		2,3,4	220/240	20000
		2,3,4	380/415	10000
	3	1	220/240	8000
		2,3,4	220/240	20000
		2,3,4	380/415	8000
	10 to 40	1	220/240	7000
		2,3,4	220/240	16000
		2,3,4	380/410	8000
	50	1	220/240	6000
		2,3,4	220/240	10000
		2,3,4	380/410	6000
	63	1	220/240	5000
		2,3,4	220/240	10000
		2,3,4	380/410	5000
Standard	Rated Current (A)	Pole	Voltage(V)	Breaking Capacity(A)
BS3871-1 IEC60898	1 to 40	1	240	4000
BS3871-1 IEC60898	1 to 40	2,3,4	415	4000
IEC157-1	1 to 40	1	220/240	6000
		2,3,4	220/240	12000
		2,3,4	380/415	6000

Setting temperature of protective characteristics at 40 ºC.
Rated Voltage: 240V/415V
Rated Current: 1,3,5,6,10,16,20,25,32,40,50,63A.
Electrical Life: no than 6000 operations.
Mechanical Life: (O-C) No less than 20000 operations.

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
