C45 MCB Circuit Breaker for European Market Only (JVM16-63)

Name: C45 MCB Circuit Breaker for European Market Only (JVM16-63)
Brand: all-electronics-online.com
SKU: 120124
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	US $ 0.8-0.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	C45
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	63A 80A100A
No. Of Pole:	1p+N,2,3p+N,3,4 Pole
Rated Voltage:	230V/400V
Leakage Action Current:	30,50,100,300,Ma
Eakage Action Times:	Less Than 0.1s
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

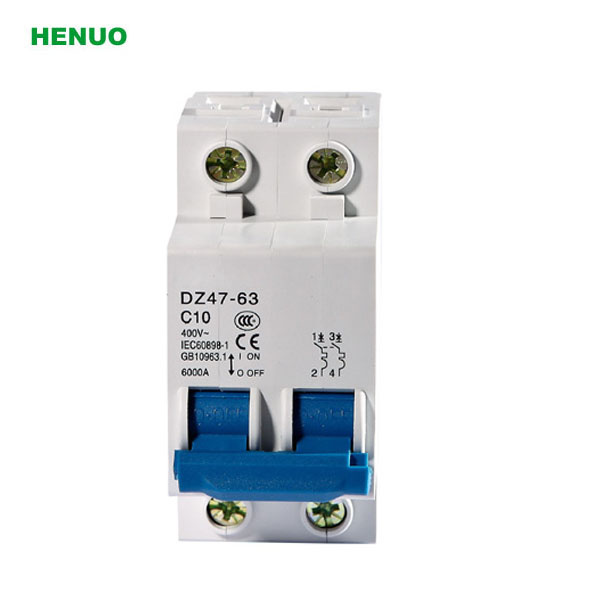

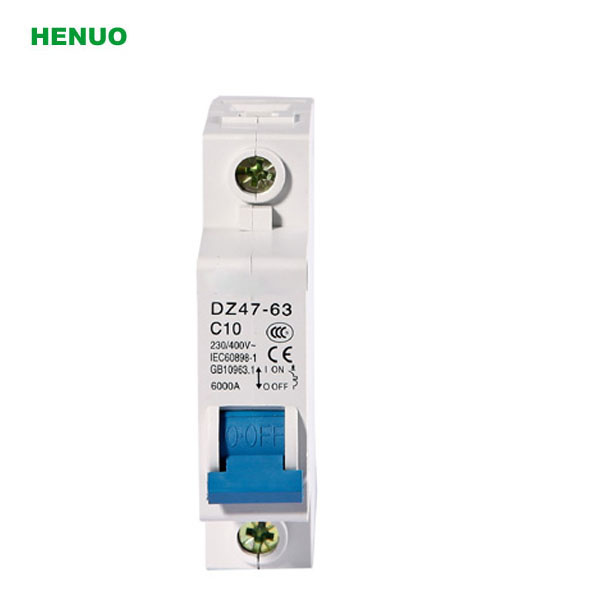

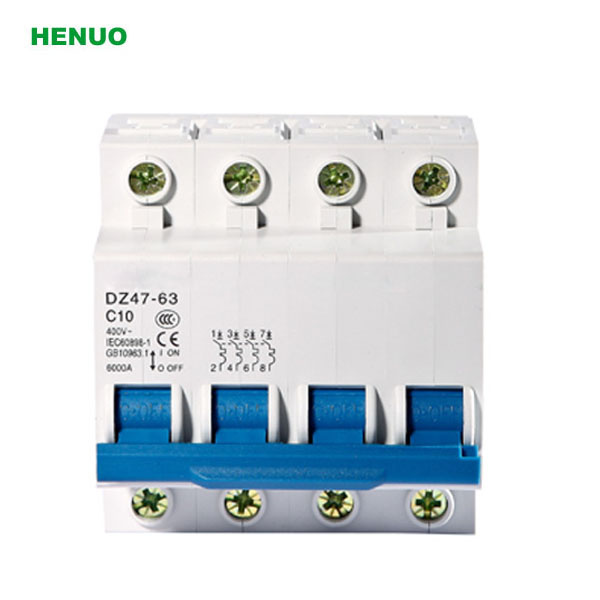

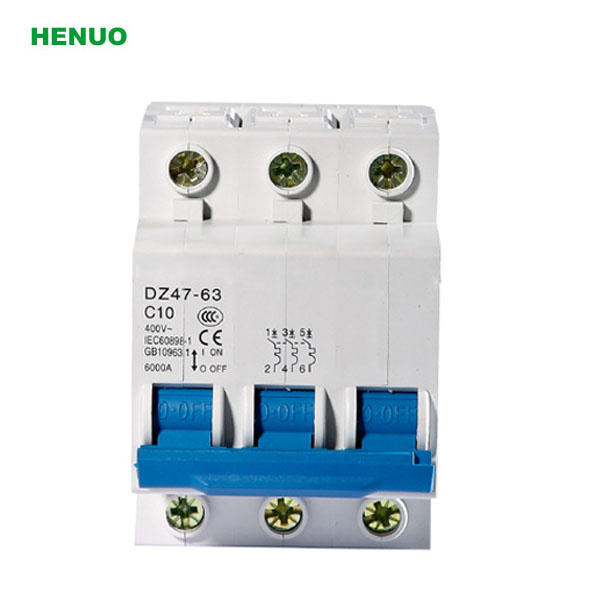

C45(DZ47-63) MCB

Applciation Scope:

The product is applicable to circuit with rated voltage up 415V AC, rated frequency 50/60Hz and rated current up to 63A for protection and control of circuit against overload and short circuit in commercial, household and electric equipment installation. The product is suitable for non-frequently making and breaking operation.

The product, free of maintenance, can be operated by non-professionals.

Standard: GB10963, EC60898

Type: DZ47-63
Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P

Rated Current: 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63AMP

Rated Voltage: AC240/415V

Rated Frequency: 50/60Hz

Curve: B, C, D

Short-circuit Breaking Capacity: 10000A(10kA)

Magnetic Release Operate:

B curve between 3 and 5In

C curve between 5 and 10In

D curve between 10 and 20In

Endurance: >=4000

Terminal Protection: IP20
