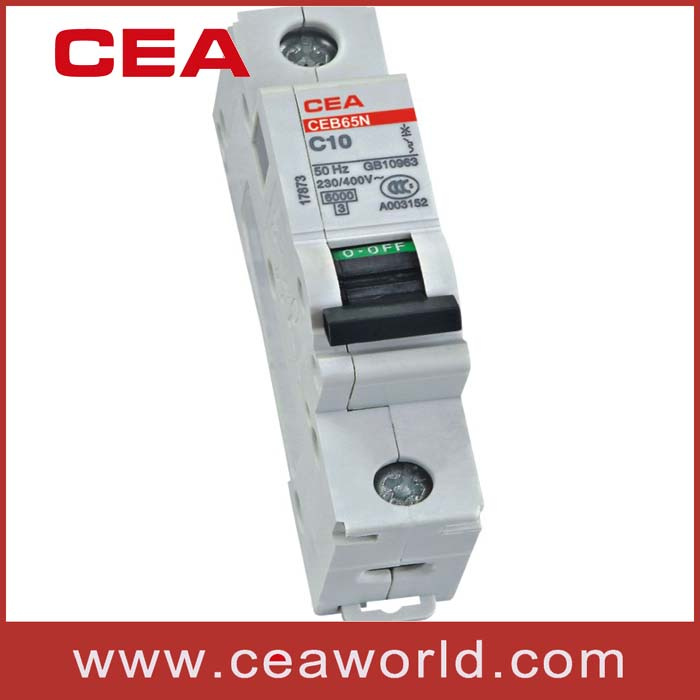

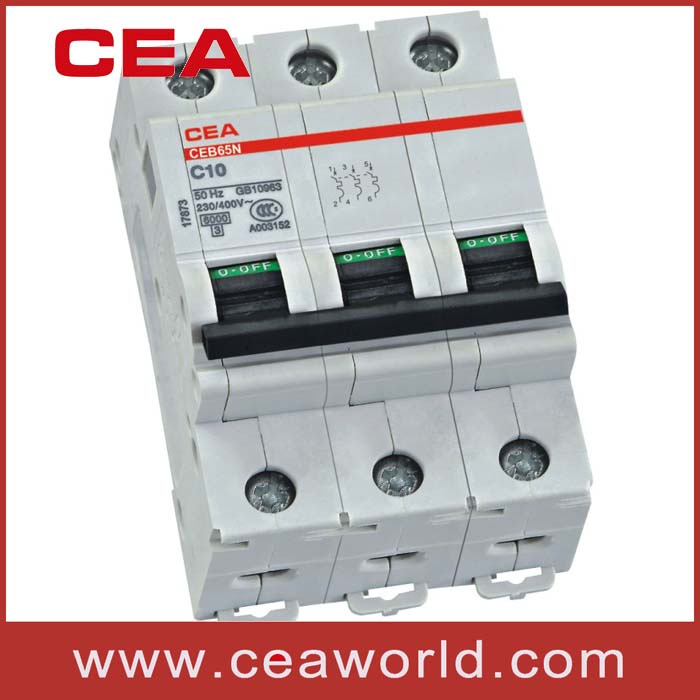

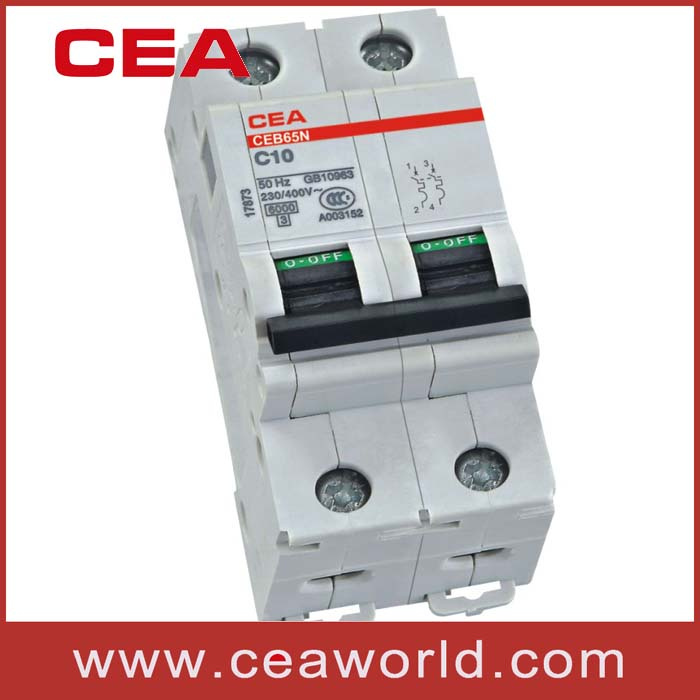

C65n, C60n Mini Circuit Breaker

Name: C65n, C60n Mini Circuit Breaker
Brand: all-electronics-online.com
SKU: 690257525
Availability: InStock
Rating: 4.6 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CEB65N-1P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	1-63A
Rated Voltage:	230/400V
Other Poles:	1p,2p,3p,4p Can Be Supplied Too
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CCC

Product Description

C65 Circuit Breaker(CEB60N)
Sample: can be provided.
Application:
The series circuit breaker have protective function against short circuit and overload. And are used in lighting distribution system in industry, commerce and dwelling. And project fractional electric motors. They also have many merits of high breaking capacity, good reliability of sensitive action, convenient multi-pole assorting, long using life etc. They are mainly adapted to the circuit of AC 50/60Hz, 230V in single pole, 400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the condition. It conforms to IEC 60898.

Pole No.	1P, 2P, 3P, 4P
Rated Current (A)	1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40	50, 63
Breaking Capacity (A)	6000	4500
Rated Voltage (V)	230V/400V
Rated Frequency	50/60Hz
Electrical Life	6000 times
Mechanical Life	20000 times
Protection Degree	IP20

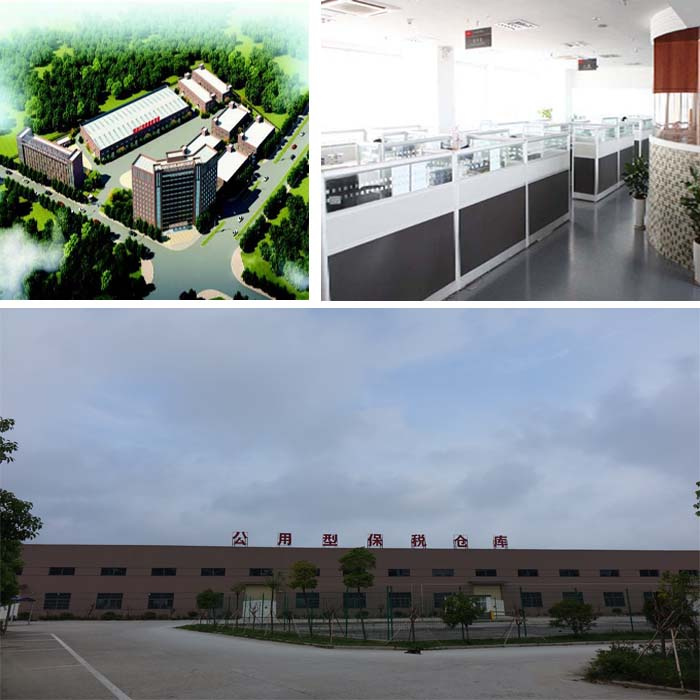

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
