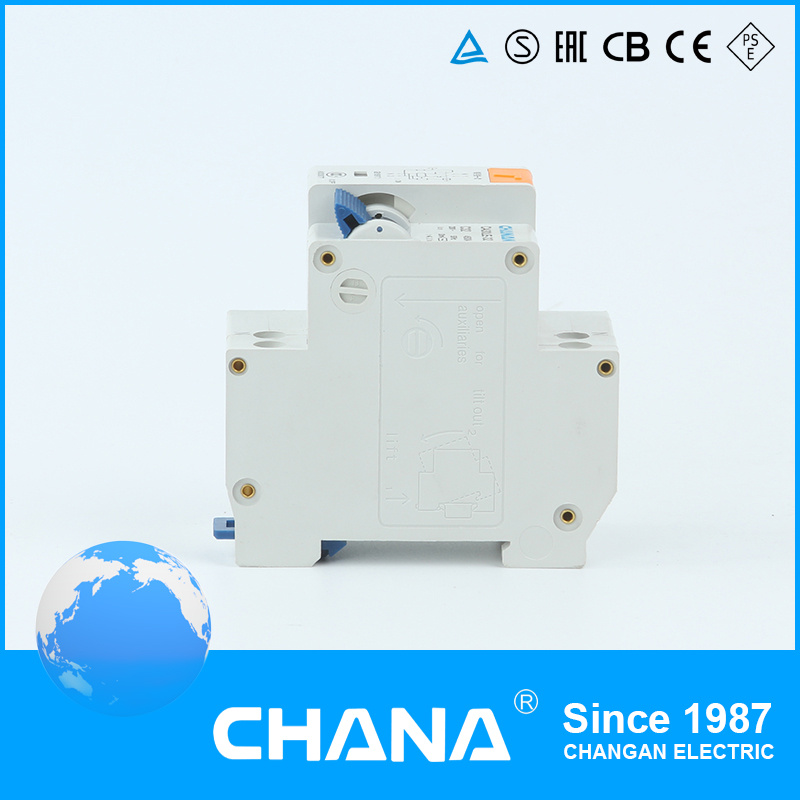

| Prod Model: |
CA30LE-32 |
| Rated Frequency: |
50/60Hz |
| Rated Voltage: |
230/240V |
| Poles: |
1p+N |
| Current: |
6-32A |
| Rated Sensitivity: |
0.01,0.03,0.1,0.3A |
| Mechanical Life: |
4000 |
| Electrical Life: |
2000 |
| Pollution Degree: |
2 |
| Protection Degree: |
IP20 |
| Export Market: |
World |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Insert |
| Poles Number: |
1 |
| Certification: |
CCC |
| Structure: |
RCBO |
Product Description
Free samples can be provided!!!
| Standard | IEC61008-1 |
| Electrical Feature |
| Type(wave form of the earth leakage sensed) | | AC, A |
| Rated current In | A | 6,10,16,20,25,32A |
| Poles | P | 1P+N |
| Rated voltage Ue | V | 230/240V |
| Rated sensitivity | A | 0.03,0.1,0.3 |
| Insulation voltage Ui | V | 500 |
| Rated residual making and breaking capacity | A | 500(In=25/40A) 630(In=50/63A) |
| Short-circuit current Inc | A | 3000A |
| SCPD fuse | | 6000 |
| Break time under | S | ≤0.1 |
| Rated frequency | Hz | 50/60 |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 4000 |
| Dielectric test voltage at ind. Freq. For 1 min | V | 2500 |
| Pollution degree | | 2 |
| Mechanical Feature |
| Electrical life | | 2000 |
| Mechanical life | | 4000 |
| Fault current indicator | | Yes |
| Protection degree | | IP20 |
| Ambient temperature (with daily average≤ 35º C) | º C | -5...+40 |
| Storage temperation | º C | -25...+70 |
| Installation |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm2 18-3AWG |
| Terminal size top/bottom for busbar | 25mm2 18-3AWG |
| Tightening torque | 2.5 N*m 18 In-Ibs |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |
