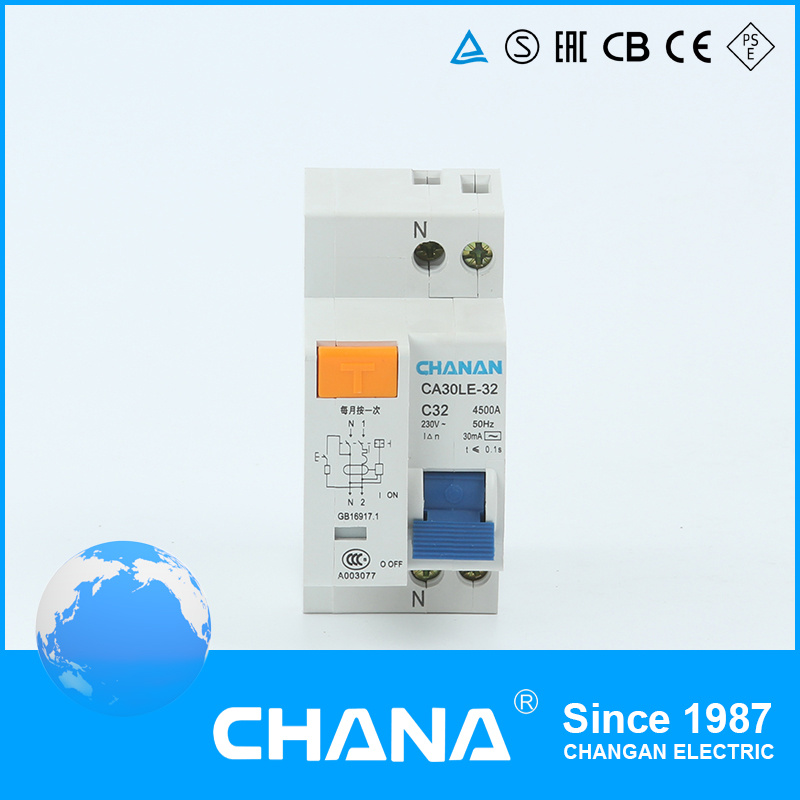

| Prod Model: |
CA30LE-40 |
| Rated Current In: |
6A,10A,16A,20A,25A,32A |
| Rated Voltage Ue: |
230/240V |
| Rated Sensitivity: |
0.01,0.03,0.1,0.3A |
| Rated Short-Circuit Capacity Icn: |
3000A |
| Rated Frequency: |
50/60Hz |
| Insulation Voltage Ui: |
300V |
| Pollution Degree: |
2 |
| Electrical Life: |
2000 |
| Mechanical Life: |
4000 |
| Export Market: |
World |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
TUV |
| Poles Number: |
1p+N |
| Function: |
RCBO |
Product Description
Product Description
| Standard | IEC61008-1 |
| Electrical Feature |
| Type(wave form of the earth leakage sensed) | | AC, A |
| Rated current In | A | 6,10,16,20,25,32A |
| Poles | P | 1P+N |
| Rated voltage Ue | V | 230/240V |
| Rated sensitivity | A | 0.03,0.1,0.3 |
| Insulation voltage Ui | V | 500 |
| Rated residual making and breaking capacity | A | 500(In=25/40A) 630(In=50/63A) |
| Short-circuit current Inc | A | 3000A |
| SCPD fuse | | 6000 |
| Break time under | S | ≤0.1 |
| Rated frequency | Hz | 50/60 |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 4000 |
| Dielectric test voltage at ind. Freq. For 1 min | V | 2500 |
| Pollution degree | | 2 |
| Mechanical Feature |
| Electrical life | | 2000 |
| Mechanical life | | 4000 |
| Fault current indicator | | Yes |
| Protection degree | | IP20 |
| Ambient temperature (with daily average≤ 35º C) | º C | -5...+40 |
| Storage temperation | º C | -25...+70 |
| Installation |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar |
| Terminal size top/bottom for cable | 25mm2 18-3AWG |
| Terminal size top/bottom for busbar | 25mm2 18-3AWG |
| Tightening torque | 2.5 N*m 18 In-Ibs |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |
How to Order?
1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable
Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable
Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.
FAQ
Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.
Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem..
