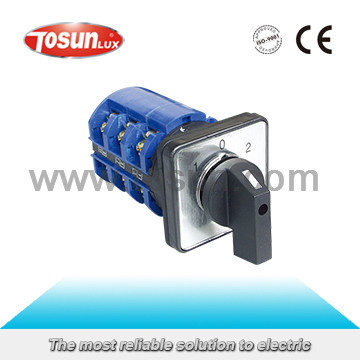

Ca10 Universal Changeover Switch / Rotary Switch

Name: Ca10 Universal Changeover Switch / Rotary Switch
Brand: all-electronics-online.com
SKU: 752467645
Availability: InStock
Rating: 4.9 (116 reviews)

Price:	US $ 1-15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CA10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Ca10-20/Ca10-25/Ca10-32/Ca10-63/Ca10-125/Ca10-160
Rotary Number:	Three Buttons
Usage:	Machinery
Standard:	Standard
Operation:	Knob
Certification:	CE
Condition:	New

Product Description

Specification

Type		CA10-20	CA10-25	CA10-32	CA10-63	CA10-125	CA10-160
Rated insulation voltage ui(V)		690	690	690	690	690	690
Conventional heating current ith(A) Ac 10<=40°		20	25	32	63	125	160
Rated working voltage ue(V)		120 240 440	120 240 440	120 240 440	240 440	240 440	220 440
Rated working current le(A)	AC-21A AC-22A	20 20	25 25	25 32 32	63 63	100 100	150 150
	AC-23A	15 15	22 22	22 30 30	57 57	90 90	135 135
	AC-2	15 15	22 22	22 30 30	57 57	90 90	135 135
	AC-3	11 11	15 15	15 22 22	36 36	75 75	95 95
	AC-4	3.5 3.5	6.5 6.5	6.5 11 11	15 15	30 30	55 55
	AC-15	5 4	8 5	5 14 6
	AC-13	5 1	9 1.5	25 11
Rated control power(KW)	AC-23A	3.7/2.5 7.5*3.7	5.5/3 11/5.5	7.5/4 15/7.5	15/10 30/18.5	30/15 45/22	37/22 75/37
	AC-2	4 7.5	5.5 11	7.5 15	18.5 30	30 45	37 55
	AC-3	3/2.2 5.5/3	4/3 7.5/3.7	5.5/4 11/5.5	11/6 18.5/11	15/7.5 30/13	22/11 37/18.5
	AC-4	0.55/0.751 1.5/1.5	1.5/1.1 3/2.2	3.7/15 5.5/3	5.5/2.4 7.5/4	6/3 12/5.5	10/4 15/7.5
Mechanical life		60 x 10^4
Electrical life		AC-15 20 x 10^4 DC-13 60 x 10^4

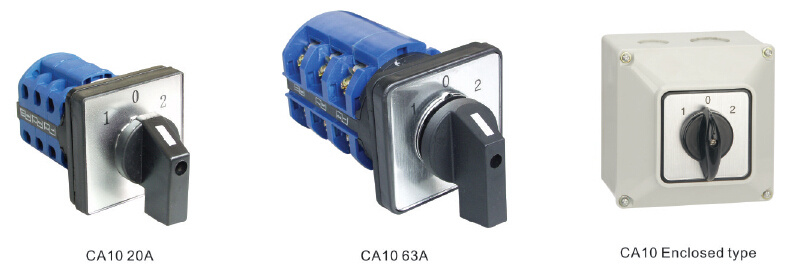

Product Show

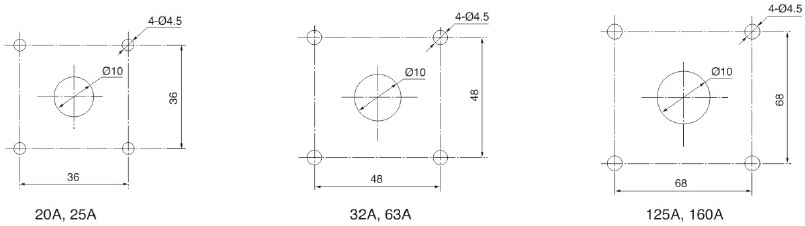

Dimension

Why Us?

1. Clients' benefit first.

2. Experinced in the line for more than 21 years.

3. Reasonable price and good source of raw material.

4. A group of professional inspectors monitor quality.

5. TUV, SEMKO, CE, CB, ROHS Approval for products.

6. Unique design for packing.

7. Experienced salesmen offer one-to-one service.

For More Information

www.tosun.com
www.tosunlux.com

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
