Cable 125mm 3000A Split Core Square Bus Bar AC Clamp on Current Transformer
| Price: |
US $ 300/Piece |
| Min Order: |
3/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Q125B |
| Types: |
3000A Clamp on Current Transformer |
| Burden: |
2.5va |
| Color: |
Black |
| Weight: |
1.1kg |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

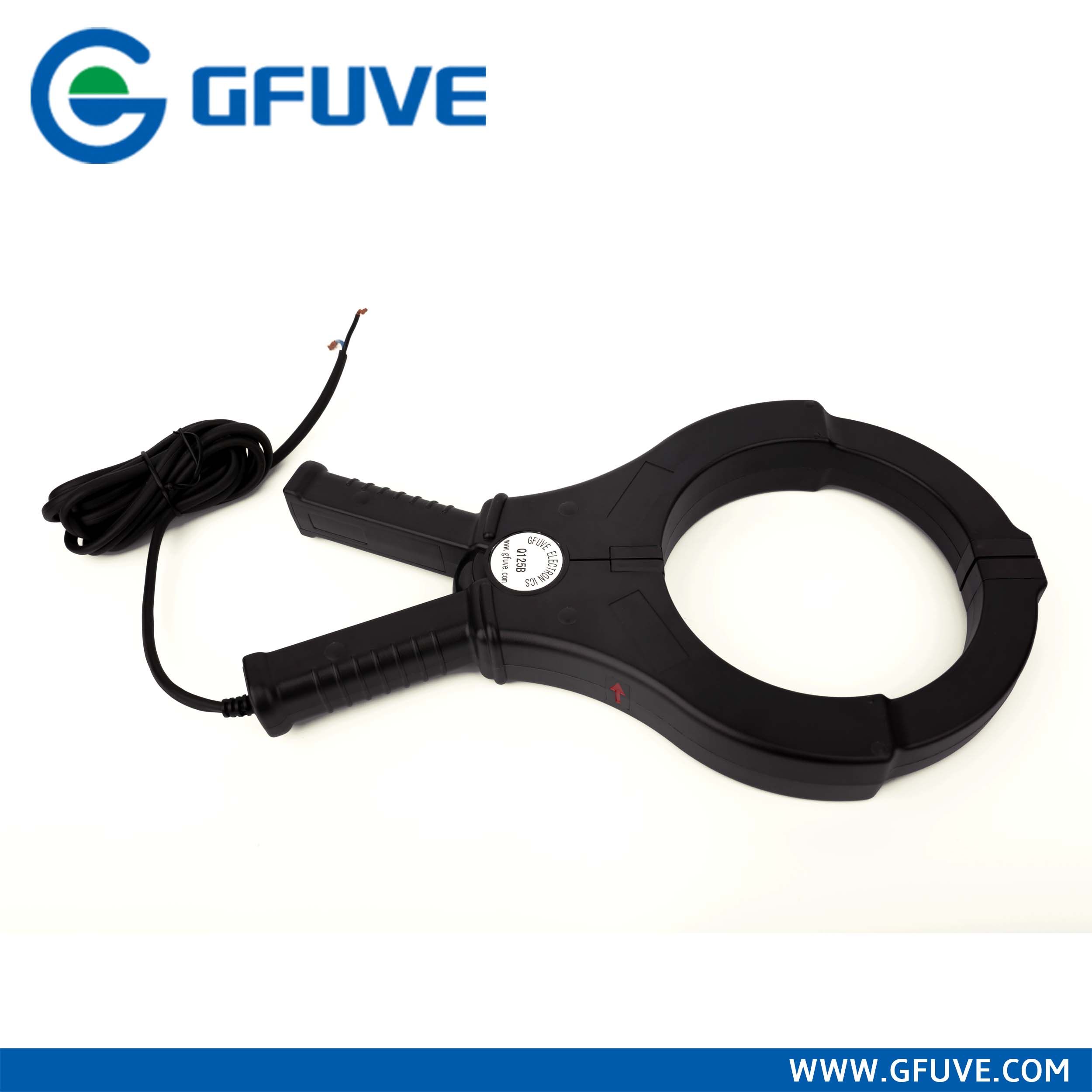

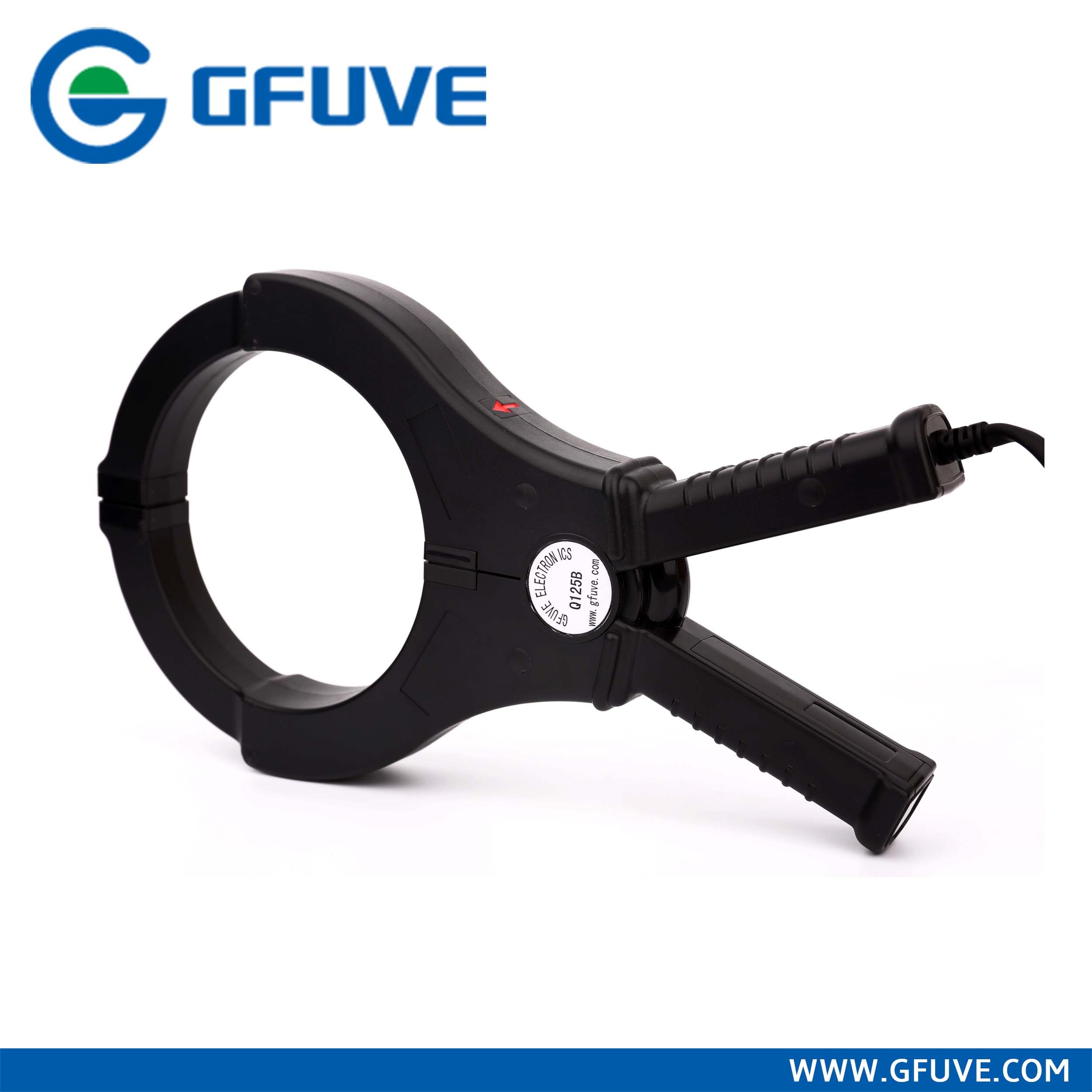

Q125B CABLE 125MM 3000A SPLIT CORE SQUARE BUS BAR AC CLAMP ON CURRENT TRANSFORMER
The Q125B is a high performance AC clamp on Current transformer with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.APPLICATIONS
- Large industrial loads
- Measuring around cable bundles
- Power load monitoring
- Electrical utility
- HVAC
- Industrial maintenance
- Laboratory
- Plant maintenance
- Cable fault tester
FEATURES
- Measurement range of 1A to 3600A AC
- Large jaw opening designed
- Improved ergonomic design and easy operation
- Conforms to EN 61010, 600V CAT III
- Low phase shift for power measurement
- Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to 3000AAC
- Transformation ratio: 1000:5, 2000:5, 3000:5
- Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC
- Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
- UL, CE mark
PARAMETERS
| Electrical parameters |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0 - 3000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 3600A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 500mA,1A,2A,5A AC at nominal input current |
| Electrical parameters - continued | |
| Output signal (AC voltage) | 333mV, 500mV, 1V, 5V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) | 180 x 319 x 35 |
| Weight (g) | 1100 |
| Holding wire diameter (mm) | φ125 |
| Max. jaw opening (mm) | 125 |
| Color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
| Electrical parameters |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0 - 3000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 3600A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 500mA,1A,2A,5A AC at nominal input current |
| Electrical parameters - continued | |
| Output signal (AC voltage) | 333mV, 500mV, 1V, 5V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) | 180 x 319 x 35 |
| Weight (g) | 1100 |
| Holding wire diameter (mm) | φ125 |
| Max. jaw opening (mm) | 125 |
| Color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
| Model | Rate Current | Max Current | Secondary Current | Coil Ratio | Burden Resistance | Accuracy |
| Q125B-500 | 500A | 600A | 5A | 100:1 | 2.5VA | 0.5% |
| Q125B-600 | 600A | 720A | 5A | 120:1 | 2.5VA | 0.5% |
| Q125B-800 | 800A | 960A | 5A | 160:1 | 2.5VA | 0.5% |
| Q125B-1000 | 1000A | 1200A | 5A | 200:1 | 2.5VA | 0.5% |
| Q125B-1200 | 1200A | 1440A | 5A | 240:1 | 2.5VA | 0.5% |
| Q125B-1500 | 1500A | 1800A | 5A | 300:1 | 2.5VA | 0.5% |
| Q125B-2000 | 2000A | 2400A | 5A | 400:1 | 2.5VA | 0.5% |
| Q125B-3000 | 3000A | 3600A | 5A | 600:1 | 2.5VA | 0.5% |
| Q125B-500 | 500A | 600A | 1A | 500:1 | customized | 0.5% |
| Q125B-600 | 600A | 720A | 1A | 600:1 | customized | 0.5% |
| Q125B-800 | 800A | 960A | 1A | 800:1 | customized | 0.5% |
| Q125B-1000 | 1000A | 1200A | 1A | 1000:1 | customized | 0.2% |
| Q125B-1200 | 1200A | 1440A | 1A | 1200:1 | customized | 0.2% |
| Q125B-1500 | 1500A | 1800A | 1A | 1500:1 | customized | 0.2% |
| Q125B-2000 | 2000A | 2400A | 1A | 2000:1 | customized | 0.2% |
| Q125B-3000 | 3000A | 3600A | 1A | 3000:1 | customized | 0.2% |
