| Prod Model: |
Q125B |
| Ratio: |
1000: 1 or 2000:1 (Customized) |
| Accuracy Class: |
0.2%, 0.5%, 1% |
| Primary Current: |
0 - 3000A AC |
| Secondary Current: |
0 - 5A AC (Customized) |
| Max. Cont. Input Current: |
3600A |
| Over Voltage Category: |
Cat III 600V |
| Standard: |
En 61010-1, En 61010-2-032, IEC60044-1 |
| Weight (G): |
1100 |
| Holding Wire Diameter (mm): |
φ125 |
| Key Word: |
4V100A Current Sensor |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
EspecificacionesDescripción del producto

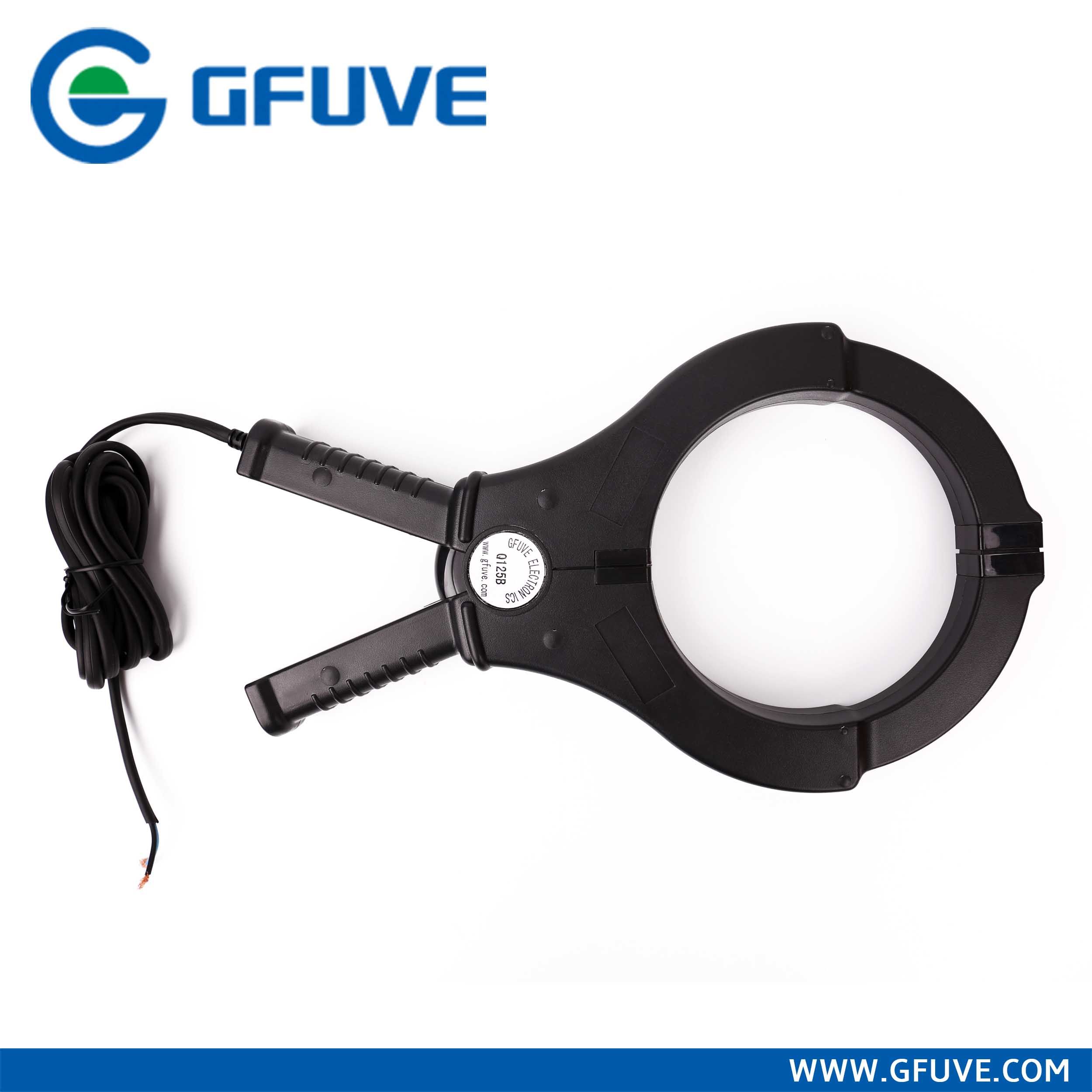

Q125B Cable 125mm Max 3600A Square Burbar AC Current Probe
The Q125B is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.
| Applications | Features |
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
| 1. Measurement range of 1A to 3600A AC
2. Large jaw opening designed
3. Improved ergonomic design and easy operation
4. Conforms to EN 61010, 600V CAT III
5. Low phase shift for power measurement
6. Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to3000AAC
7. Transformation ratio: 1000:5, 2000:5, 3000:5
8. Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC
9. Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
10. UL, CE mark
|
400a current sensor
| Electrical parameters |
|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0 --3000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 3600A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 500mA,1A,5A AC at nominal input current |
| Output signal (AC voltage) | 500mV,1V,5V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output(2.5m) |
| Mechanical parameters |
|---|
| Dimensions (L x W x H) (mm) | 180 x 319 x 35 |
| Weight (g) | 1100 |
| Holding wire diameter (mm) | φ125 |
| Max. jaw opening (mm) | 125 |
| Jaw Color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
