| Prod Model: |
COE |
| Markets: |
North America,Eastern Europe,Oceania,Western Europe |
| Pole: |
Standard 12 Pole, 1,2,3-Pole and Special-Cut Poles |
| Insert: |
Brass |
| Housing: |
PC |
| Feature: |
One-Side Entry |
| Colour: |
Clear |
| Samples: |
Free |
| OEM: |
Welcome |
| Application: |
Battery |
| Environmental Protection: |
General |
| Connection Mode: |
In-Line Connector |
| Contact Termination Form: |
Screws Fixed |
| Shape: |
U, H Shapes |
| Character: |
All European and Us Standards |
| Interface Type: |
Standard |
| Brand: |
Es |

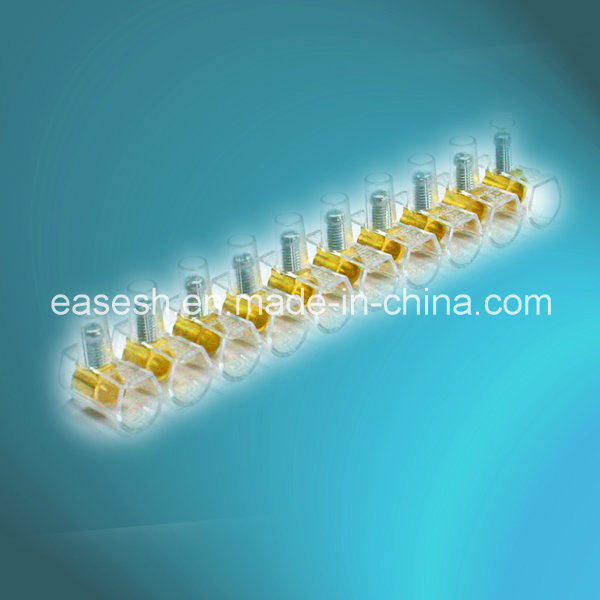

Product Description
Housing: Polycarbonate (PC)
Inserts: Brass
Temp.: 85ºC MAX 130ºC
Screws: Galvanised Steel
Standard: IMQ & CE & IP20
Color: Clear
Feature: One-Side Entry
Easy to be seperated by hands
Flame Retardant
All Screws are captive for easy wiring

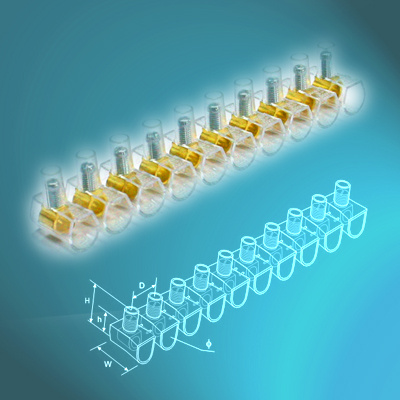

Specifications:| EASE CODE | POLES | CROSS SECTION | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) |
| W | Φ | D | H | h |
| COE-1.5 | 1/2/3/10 | 1.5 mm2 | 24A | 450V | 15.0 | 3.3 | 9.35 | 16.3 | 9.3 |
| COE-2.5 | 1/2/3/10 | 2.5 mm2 | 24A | 450V | 17.3 | 4.0 | 10.05 | 17.5 | 10.0 |
| COE-4 | 1/2/3/10 | 4 mm2 | 32A | 450V | 21.0 | 4.3 | 12.0 | 19.5 | 10.5 |
| COE-6 | 1/2/3/10 | 6 mm2 | 41A | 500V | 22.5 | 6.1 | 13.5 | 23.3 | 12.8 |
| COE-10 | 1/2/3/10 | 10 mm2 | 57A | 500V | 26.0 | 7.0 | 16.5 | 28.3 | 16.0 |
| COE-16 | 1/2/3/10 | 16 mm2 | 76A | 500V | 31.0 | 10.0 | 22.0 | 33.7 | 18.0 |
| COE-25 | 1 | 25 mm2 | 101A | 500V | 37.8 | 12.0 | -- | 40.5 | 21.5 |
| COE-35 | 1 | 35 mm2 | 125A | 500V | 45.0 | 14.0 | -- | 44.0 | 25.0 |
| Cross Section: |
rated for flexible cable and wire
Φ1 wire entry hole diameter
Φ2 fixing hole diameter
|
It can be customized if our standard ones cannot meet your needs.We have a full range of terminal blocks made of PE, PP, PA, PC, Porcelain and Brass and can provide standard, neutral packaging, or special customised packaging to meet with our customers different requirements.

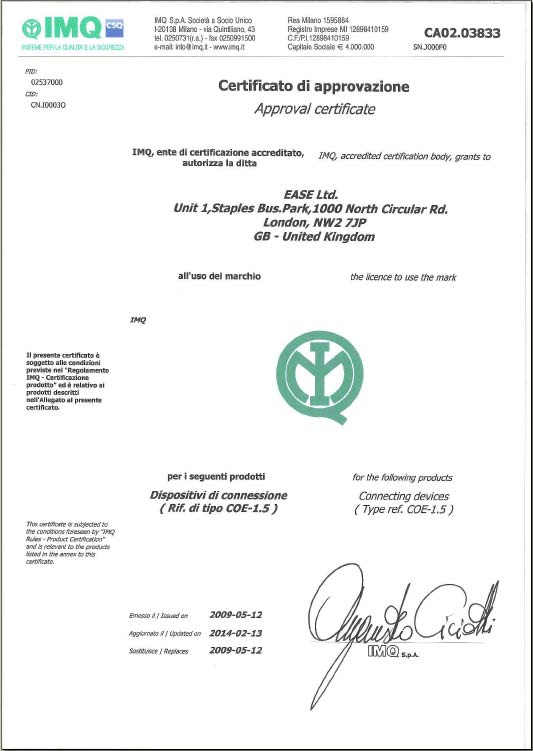

For more information, please visitng our website: www dot easegroup dot cn.IMQ Certificates for COE:(Each size has been tested separately and was given an separate certificate.)

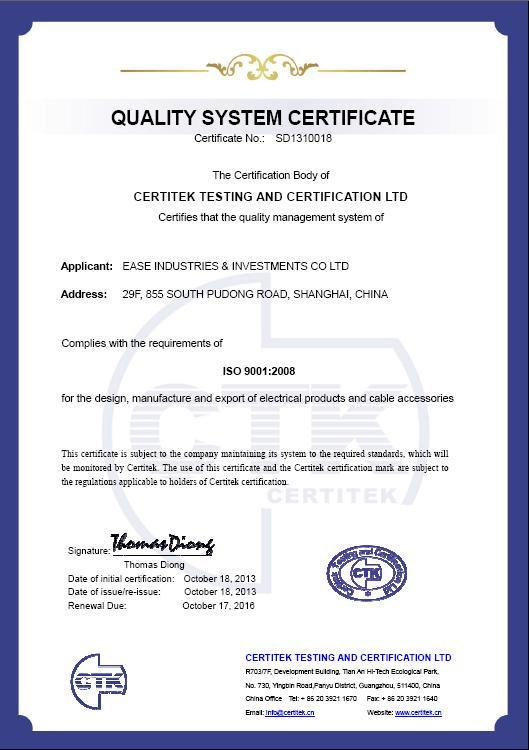

ISO9001 for all manufacturing:
FAQ:
1. Which standard do you have?
A: IMQ approved, the only one manufacture in China who approves this standard.
2. What's the delivery time?
A: Normally, 2-3 weeks after order and payment confirmation. Actually, it will depend on order quality.
3. How to pay?
A: TT & L/C are both acceptable, but TT will be more appreciated. 30% deposit by TT before producing and 70% balance by TT before loading.
4. Package information
A: Inner box and master carton are made accoring to internation standard. Customized package can also be made if needed.
5. How to get samples? Is it free?A: Samples are available. Normally, our samples are free.
