Cable Coaxial Rg11 Messenger

Prod Model:	DSC-Cable Coaxial RG11 Messenger
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Commscope Rg11:	Rg11 Coaxial Cable
Belden Rg11:	Cable Coaxial Rg11 Messenger
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Cable Coaxial Rg11 Messenger
Model:	Cable Coaxial Rg11 Messenger

Product Description

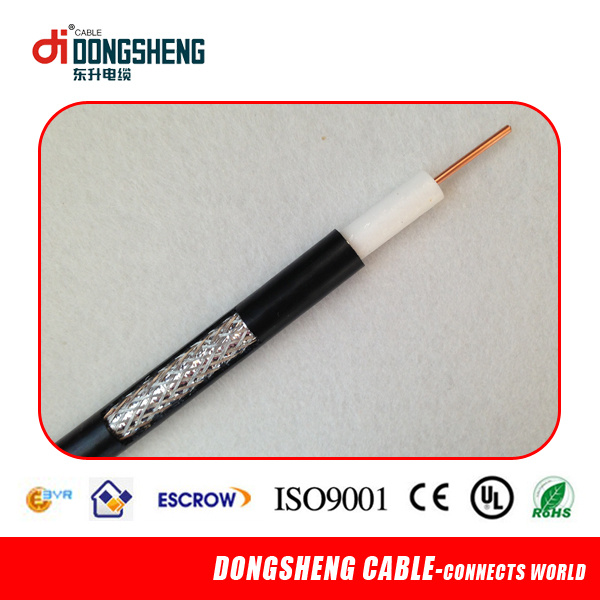

Cable Coaxial RG11 Messenger

Cable Coaxial RG11 Messenger

Rg11 CCTV Cable/RG11 CATV Cable/RG11 Coaxial Cable

1. OEM is OK
2. ISO9001/CE/REACH/ETL
3. Stable quality with competitive

Specification:

Physical Dimensions
Component		Standard Shield	Tri-Shield	Quad-Shield
Conductor	Material	CCS/BC	CCS/BC	CCS/BC
	Dia. (mm)	1.63±0.01	1.63±0.01	1.63±0.01
Dielectric	Material	Foam PE	Foam PE	Foam PE
	Dia. (mm)	7.11±0.10	7.11±0.10	7.11±0.10
Shield	Material	Al Foil + Al Braid	Al Foil + Al Braid + Al Foil	(Al Foil + Al Braid)*2
	Coverage	40%-95%	40%-95%	40%-95%
Jacket	Material	PVC/PE	PVC/PE	PVC/PE
	Dia. (mm)	10.03±0.10	10.16±0.10	10.34±0.10
Messenger	Material	Galvanized Steel	Galvanized Steel	Galvanized Steel
	Dia. (mm)	1.83±0.01	1.83±0.01	1.83±0.01

Mechanical Characteristics

Minimum Breaking Strength of Messenger

166kgf

Electrical Characteristics

Impedance(Ω)			75±3
Velocity of Propagation			83%
Capacitance(pF/m)			53.1
Structural Return Loss(≥dB)			20

Attenuation [@ 68° F. (20° C)]

Frequency(MHz)			Maximum(dB/100m)
5			1.25
55			3.18
211			5.94
300			7.05
400			8.10
550			9.65
750			11.48
1000			13.88
1450			18.10
1800			20.60
2250			23.50
3000			28.90

Applications

(1) CATV-community antenna television.

(2) CCTV-closed-circuit television.

(3) DBS-direct broadcasting satellite.


Packing: 305m/wooden drum or 500m/wooden drum,
Customer's requirement also be welcomed

Other Cables:
1) Lan  Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
