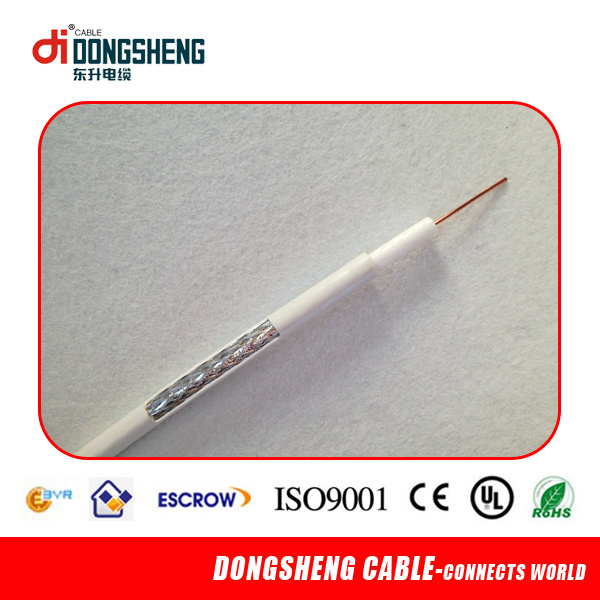

Cable Coaxial RG6 with UL CE RoHS ISO

Prod Model:	DSC-Cable Coaxial RG6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coaxial Cable:	Beleden RG6 UL
75 Ohm Cable Coaxial:	Commscope RG6 UL
TV Cable:	RG6 Tri
Satellite Cable:	RG6 with 2 F Connector
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	DSC RG6 Coaxial Cabe with UL CE RoHS ISO
Model:	Cable Coaxial RG6 with UL CE RoHS ISO
Brand:	Cable Coaxial RG6 with UL CE RoHS ISO

Product Description

Cable Coaxial RG6 with UL CE ROHS ISO

Cable Coaxial RG6

RG6 Coaxial Cable,RG6, RG6 Triple  Cabo Coaxial,RG6 Quad Kabel, RG6 Steel Messenger Cable

Cable Coaxial RG6 Product Spec


Cable Coaxial RG6  with UL CE ROHS ISO		TYPE:	Cable Coaxial RG6
Construction
Item	Material			Diameter(mm)
Center Conductor	Copper Clad Steel/BC			1.02
Dielectric	Foam  PE			4.57
1st Shield	Bonded Aluminum Foil Copper Foil			4.75
2nd Shield	Aluminum Wire Braid CCA Wire Braid BC Wire Braid TC Wire Braid			3×16× 4×16× 6×16×     0.12 ,0.15,0.16 Al  7×16× 9×16× 10×16×
3rd Shield	Aluminum Foil or			/
Jacket	PVC			6.9mm
Messenger	Galvanized Steel			1.30
Electrical Charateristics
Impedance(Ω)				75±3
Capacitance(pF/m)				52±2
Velocity of Propagation(%)				85.0
Shielding Effectiveness
5-1000MHZ(dB)				≥90%
Return Loss
5-1000MHZ(dB)				≥22
1000-2000MHZ(dB)				≥20
Attenuation @68°F.(20 ºC )
@Frequency(Mhz)	Max Attenuation(dB/100ft)			Max Attenuation(dB/100m)
5	0.58			1.90
55	1.60			5.25
187	2.85			9.35
211	3.05			10.00
400	4.15			13.61
500	4.66			15.29
750	5.65			18.54
865	6.10			20.01
1000	6.55			21.49
1500	8.20			26.80
1800	8.80			28.90
2200	9.80			32.20
3000	11.50			37.60

Cable Coaxial RG6 Products Photos and Package


RG6 Coaxial Cable Packaging & Shipping
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request

Other Cables:
1) Lan  Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
