Utility Electrical Co., Ltd. >> Cable Electric Distribution Terminal Block with Copper Conductor

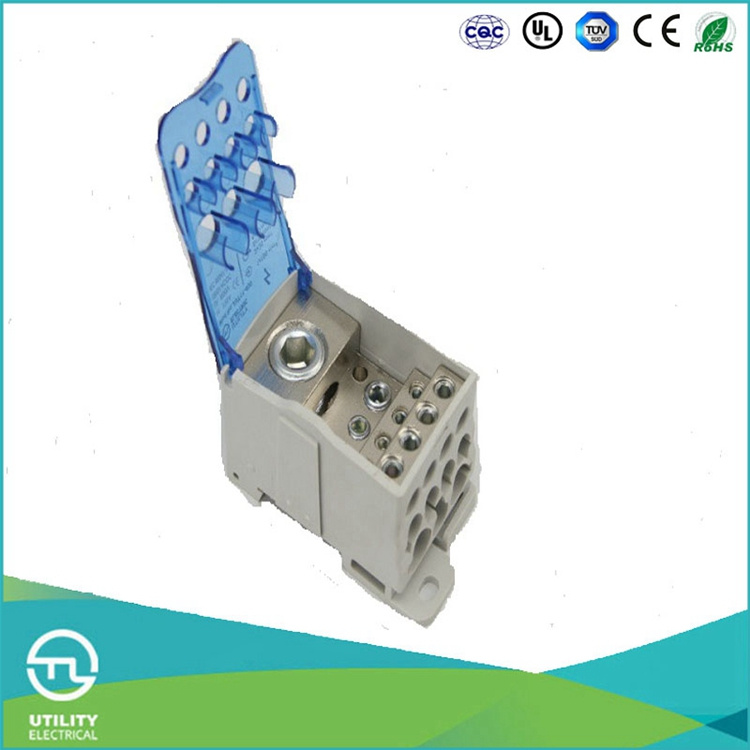

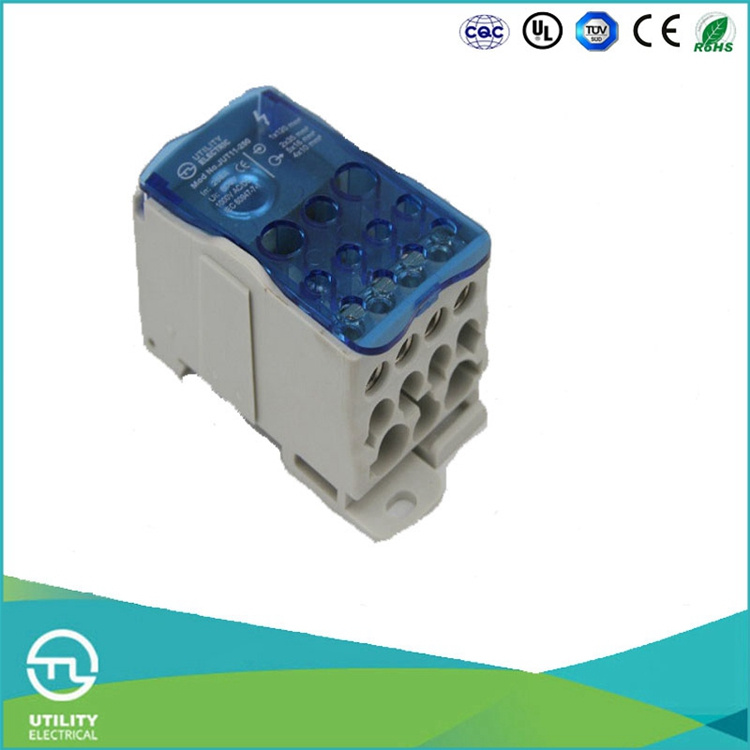

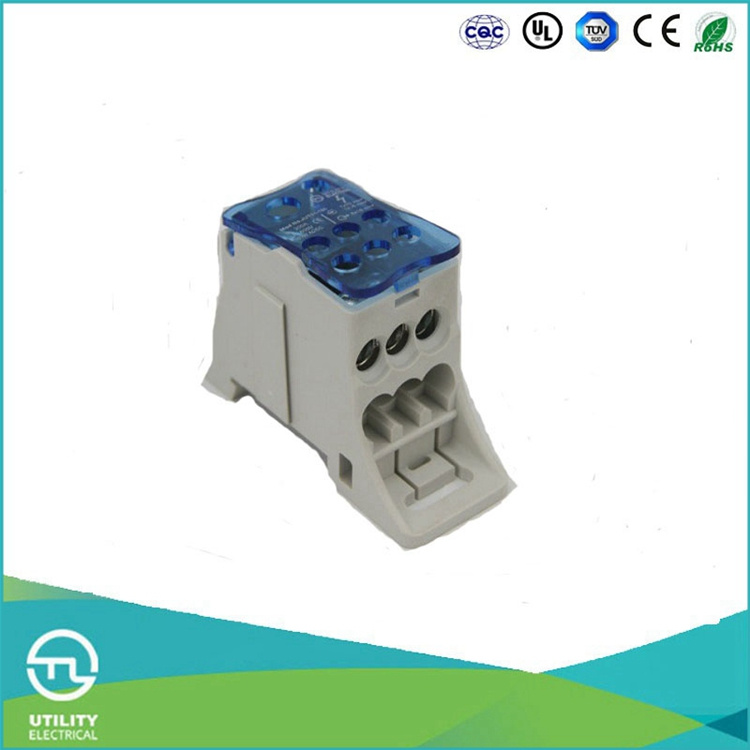

Cable Electric Distribution Terminal Block with Copper Conductor

Cable Electric Distribution Terminal Block with Copper Conductor
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JUT11-160
IEC: 60947-7-1
Current: 500A
Voltage: 690V
Body Material: PA66
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: TUV Ce CQC
Brand: Utl

Product Description

UTL New Products In 2016 Power Cable Electric Distribution Terminal Block With Copper Conductor


Model NoJUT11-160
Item name Universal Power Distribution Terminal Block
Insulation resistanceDC 1000V 1000MΩ min
Income line specification

→In10 to 70      x1

→In 6 to 16       x4

Out→2.5 to 16  x2

MouldarSingle-strand line,can be extended jumper,can be double neutral line
Payment term

A.Below US$300,western,paypal accepted

B.Above US$3000,bank account

CertificateTUV/CE/UL/VDE/RoHS/SGS/CCC/CQC  approved standard
Logo      Customized logo are available as request

Design ability

We can supply sample,OEM&ODM is welcome


Features:

  1. Material:

Cover: PC UL94-V0                 Body: PA66 UL94-V0                     Block: Copper(Ni Plated)

Screw: Steel(Zinc Plated)        Fixed Part: Steel(Zinc Plated)         Standard: IEC 60947-7-1 IP20

2. Electrical:

(1) Voltage rating/Current rating: 690V/30A~500A;

(2) Insulation resistance: DC 1000V 1000MΩ min;

(3) Contact resistance: 20MΩ max;

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
